PZM Series Submersible Basket Mill for Industrial Paint, Ink & Pigment
PZM Basket Mill: Submersible Wet Grinding for Paint, Ink, Pigment & Latex Production. Capacity range 30 - 1,500 L. Typical applications: Architectural Paints, Industrial Coatings, Printing Inks, Pigment Pastes, Wood Coatings.
PZM Basket Mill: Submersible Wet Grinding for Paint, Ink, Pigment & Latex Production

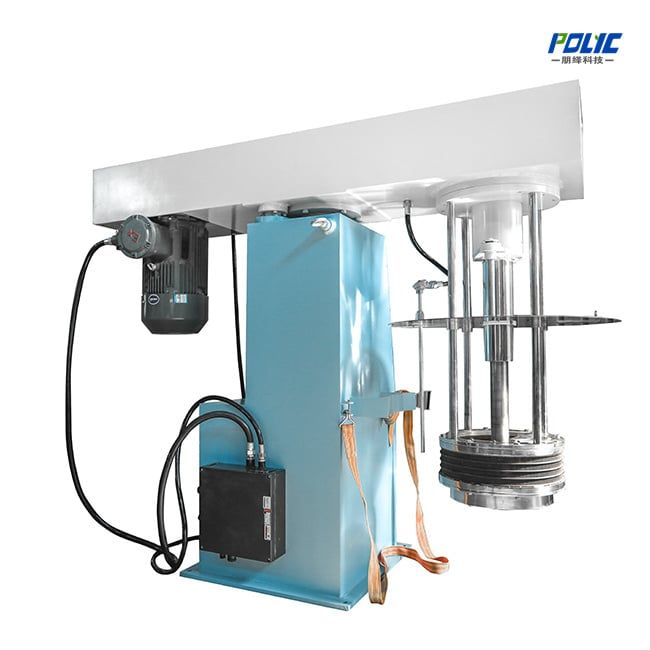

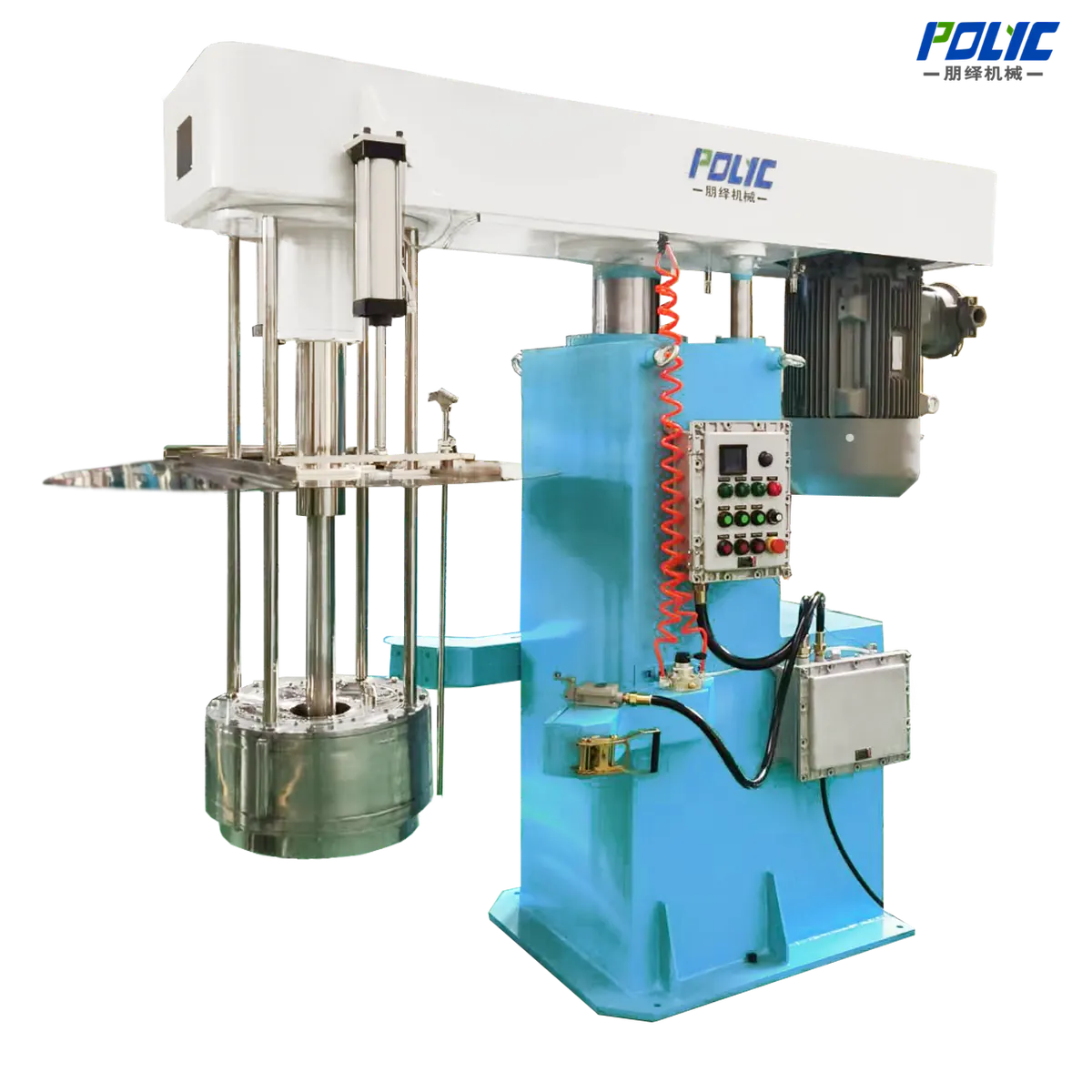

The POLYC PZM basket mill is a submersible wet grinding mill for industrial paint, ink and pigment production. Whether the duty is a basket mill for industrial paint, a basket mill for ink, a dye basket mill or a basket bead mill, one platform covers 30-1,500 L batches, and the same machine is also specified as an ink basket mill, a paint basket mill or a pigment miller for pigment paste. It lowers directly into the mixing vessel, so one mill can serve multiple tanks. The basket and vessel use a double-wall jacket for cooling, which keeps material temperature stable during grinding.
Key Facts
- Equipment Type
- Grinding & Milling
- Capacity / Batch Range
- 30 - 1,500 L
- Motor Power
- 4 - 45 kW
- Grinding Fineness / Bead Size
- 5 - 20 micron depending on media and formulation
- Typical Applications
- Architectural Paints, Industrial Coatings, Printing Inks, Pigment Pastes
Request a Quote
Response within 24 hours · Engineering consultation · Application review available
This design is practical for frequent color changes and small-to-medium batch production of ink, paint, coatings, pigments and agrochemicals.
Molino de perlas para pintura — POLYC suministra molino de perlas para pintura y molinos de canasta para pintura industrial, tintas, tintes y pastas de pigmento, con capacidades de 30 a 1.500 litros, elevación hidráulica y opciones de vacío. Solicite una cotización.
Where the PZM Basket Mill Performs Best
Industry ApplicationsWidely used for wet grinding and dispersion across multiple industries. Its submersible design and fast cleaning make it ideal for facilities running many colors or product types.
🎨
Paint & Coatings
As a basket mill for paint and coatings, the PZM series handles both water-based and solvent-based formulations with excellent fineness control. The double-wall cooling jacket prevents temperature rise during high-shear grinding, which is critical for heat-sensitive resin systems. Ideal for architectural coatings, industrial paints, wood coatings and protective coatings where frequent color changes are common.
🧪
Pigments & Color Pastes
For basket mill for pigment applications, the mill achieves efficient dispersion of organic and inorganic pigments including titanium dioxide, iron oxides, phthalocyanines and quinacridones. The basket design minimizes grinding media usage while maintaining high grinding efficiency, making it cost-effective for high-value pigment pastes and color concentrates.
🚗
Automotive Refinish & OEM
As a basket mill for automotive paint, the PZM series meets the stringent fineness and cleanliness requirements of automotive refinish and OEM coatings. The closed basket design prevents contamination and solvent evaporation, while precise temperature control ensures consistent batch quality for basecoats, clearcoats and primer surfacers.
🪓
Latex & Emulsion Paints
For basket mill for latex and emulsion paint production, the mill handles high-viscosity latex formulations with effective pigment wetting and dispersion. The submersible basket lowers directly into the mixing tank, eliminating transfer pumps and reducing material loss — ideal for small-batch tinting and medium-scale production.
🖨
Inks & Printing Inks
Widely used for ink production, including offset, gravure, flexographic and screen printing inks. Its ability to achieve fine particle size distribution (down to 5 microns or finer) ensures excellent print quality, color strength and gloss. Easy cleaning between colors reduces downtime in multi-color environments.
🌾
Agrochemicals & Specialty
Beyond coatings and inks, the basket mill serves agrochemical SC (suspension concentrate) formulations, pesticide dispersions, battery materials, ceramic slurries and other specialty chemical applications requiring fine wet grinding and stable dispersion.
PZM Series at a Glance
Series Overview30–1,500L
Batch Capacity
5–20μm
Grinding Fineness
2-in-1
Disperse + Grind
1-to-many
One Mill, Many Tanks
Key Design Features
EngineeringMedia 0.3–2.0 mm🧊

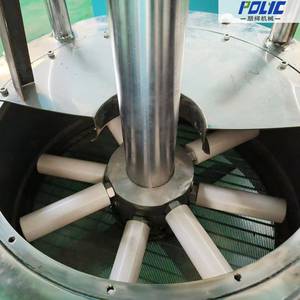

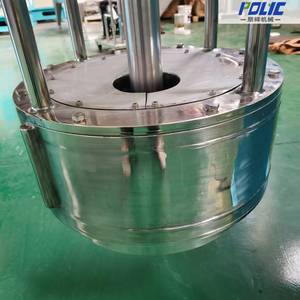

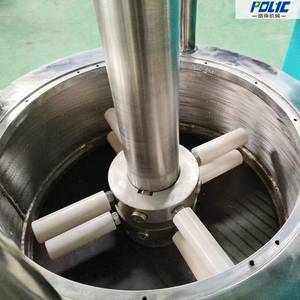

Grinding Basket
- Tungsten carbide / PU replaceable liner
- Dynamic gap separation — no screen clogging
- Compatible with 0.3–2.0 mm media
10–14 m/s Tip Speed⚙️
Disperser Disc
- Saw-tooth design, 10–14 m/s tip speed
- Stainless steel or hard-faced option
- Variable speed for different viscosities
Outlet < 40 °C❄️
Cooling Jacket
- Double-wall water cooling on basket & vessel
- Outlet temperature < 40°C
- Suitable for heat-sensitive resins
~15 min Changeover⬆️
Lifting System
- Hydraulic lift — one button operation
- Fast color changeover: ~15 minutes
- Can serve 2–4 tanks simultaneously
Applications by Industry
Selection| Industry | Target Fineness | Typical Batch Size |
|---|---|---|
| Architectural Paints | < 20 μm | 500–1,500 L |
| Printing Inks | < 10 μm | 200–500 L |
| Pigment Pastes / Colorants | < 5 μm | 100–300 L |
| Agrochemical SC | < 3 μm | 200–1,000 L |
| Wood Coatings | < 15 μm | 300–800 L |
Choosing the Right Basket Mill
How to Choose1
What fineness do you need?
< 20 μm → standard disc type · < 10 μm → pin type · < 5 μm → high-energy type with 0.5 mm media
2
What is your batch size?
30–100 L → lab / pilot model · 100–500 L → production model · 500–1,500 L → heavy-duty model
3
How often do you change colors?
Daily color changes → basket mill (fast cleaning). Continuous single-product runs → horizontal bead mill (higher throughput).
Related Technical Guides
Guides
ComparisonHorizontal Bead Mill vs Basket Mill: Which Is Right for Your Process
MaintenanceHow to Reduce Cleaning Time During Basket Mill Batch Changeover
SelectionHow to Choose the Right Bead Mill for Ink and Paint Production
PrincipleHow a Bead Mill Works: Working Principle
Need help sizing a basket mill for your process?
Request a QuotationApplication Scenarios: Printing Ink, Gravure, Flexo, Automotive and Pesticide
Beyond general paint and pigment work, the PZM is frequently specified as a basket mill for printing ink. In publication and packaging plants it runs as a gravure ink basket mill and a flexo ink basket mill, where fast colour changeover matters more than continuous throughput. The same basket serves as a printing ink basket mill for offset and screen inks.
In automotive and industrial finishing it is used as an automotive paints basket mill and a primers paint basket mill for refinish primers, and as a top coating basket mill where a single vessel has to handle base coat and clear coat batches in sequence.
Pigment and agrochemical producers use the identical platform as a pigment basket mill and a pigment paste basket mill for high-concentration colour paste, and as a pesticide basket mill where agrochemical SC batches must be ground without cross-contamination between products.
Selection Parameters
Choose this bead mill when your target process falls within the following ranges. The final bead size and model are confirmed after reviewing your material and target fineness.
| Target fineness | 5 – 20 µm |
|---|---|
| Maximum viscosity | 50,000 cps |
| Recommended zirconia bead size | 1.8 – 2.0 mm |
| Wetted parts options | Alloy steel, zirconia or polyurethane |
INDUSTRIES THIS MACHINE SERVES
Industries we serve
Battery Materials
Cathode/anode slurry grinding for lithium battery production, with metal contamination control.
Learn more →Agrochemicals
SC suspension concentrate and water-based pesticide formulation grinding.
Learn more →TYPICAL PERFORMANCE REFERENCE
| Material Type | Target Particle Size | Recommended Bead Size | Viscosity Range |
|---|---|---|---|
| Architectural paints | 15-20 μm | 1.5-2.0 mm | Medium |
| Industrial coatings | 5-15 μm | 1.0-1.5 mm | Medium |
| Wood coatings | 10-20 μm | 1.5-2.0 mm | Medium |
| Ink / pigment paste | 5-10 μm | 0.8-1.2 mm | Medium |
Typical reference values only. Actual results depend on formulation, bead material, and process conditions. Material testing is recommended before final selection.
Looking for a complete ink or coating production line?
View Turnkey Ink Line →View Turnkey Paint Line →BASKET MILL VS HORIZONTAL BEAD MILL
Which machine fits your process?
| Dimension | Basket Mill | Horizontal Bead Mill |
|---|---|---|
| Process mode | Batch processing, no external pump needed | Continuous / recirculation, requires feed pump |
| Viscosity range | 1,000 - 50,000 mPa·s (medium to high) | < 10,000 mPa·s (low to medium) |
| Target particle size | 5 - 20 μm | 50 nm - 1 μm |
| Bead size range | 0.3 - 2.0 mm | 0.1 - 1.2 mm |
| Cleaning & color change | 5-15 minutes, low solvent use | 30-90 minutes, full chamber flush |
| Best for | Small batches, frequent color changes | High-volume production, nano-scale |
Process Engineering
Working Principle
- 1
The basket is lowered into a mobile vessel containing premixed material.
- 2
A high-speed disc circulates product through the media-filled basket, where impact and shear disperse agglomerates.
- 3
Processed material returns directly to the same vessel, creating repeated batch circulation without external piping.
- 4
Jacketed basket and vessel surfaces remove heat during the grinding cycle.
Equipment Benefits
Equipment Advantages
- ✓
Premixing, dispersion, and grinding are completed in one vessel.
- ✓
One drive can serve multiple mobile vessels for flexible batch scheduling.
- ✓
Open batch configuration simplifies cleaning and color changes.
- ✓
Double-jacket cooling at the basket and vessel limits temperature rise.
Technical Data
Technical Specifications
| Model | Power (kW) | Basket Volume (L) | Tank Volume (L) | Lifting Height (mm) | Speed (rpm) |
|---|---|---|---|---|---|
| PZM50 | 4 | 3 | 30~100 | 400 | 0-1500 |
| PZM100 | 7.5 | 10 | 50~200 | 500 | 0-1500 |
| PZM200 | 11 | 15 | 100~300 | 700 | 0-1300 |
| PZM300 | 15 | 15 | 200~400 | 900 | 0-1300 |
| PZM500 | 18.5/22 | 20 | 300~500 | 1200 | 0-1100 |
| PZM1000 | 30/37 | 30 | 500~1000 | 1200 | 0-1000 |
| PZM1500 | 45/55 | 40 | 1000~1500 | 1400 | 0-1000 |
PRODUCT INQUIRY
Get Price & Specs for This Product
Tell us your material and capacity, our engineer will reply within 24 hours.
Thank you! Our engineer will contact you within 24 hours.
Equipment Guidance
Frequently Asked Questions
What is a basket mill?
A basket mill is a submersible wet grinding machine that combines premixing, dispersion, and grinding in one vessel. POLYC MACHINE basket mills support laboratory and production batches for coatings, inks, and battery materials.
Basket mill vs horizontal bead mill?
Basket mills are submersible and suit small-to-medium batches with easy cleaning. Horizontal bead mills are continuous-flow machines for higher-volume production. POLYC MACHINE engineers can recommend the right configuration.
What capacity range do your bead mills support?
POLYC MACHINE bead mills range from laboratory models to 1,000 L production machines. Custom configurations are available for specific materials, viscosity, and throughput requirements.
What materials are bead mills suitable for?
Our bead mills process coatings, inks, battery materials, pharmaceuticals, cosmetics, agrochemicals, advanced ceramics, and chemical products. Material testing can be arranged before purchase.
How do I choose the right bead mill?
Consider batch size, material viscosity, target fineness, and production volume. POLYC MACHINE engineers provide consultation and material testing to recommend a suitable machine.
Which is better for small batch production?
A basket mill is better for small batches and frequent color changes. It requires 5-15 minutes of cleaning with low solvent use, compared to 30-90 minutes for a horizontal bead mill. A horizontal bead mill is more suitable for high-volume continuous production where cleaning frequency is lower.
What is a basket mill used for?
A basket mill is used for batch wet grinding and dispersion of pigments and fillers in ink, paint, coatings and adhesives. The grinding basket lowers into the same vessel used for pre-mixing, so material is transferred only once—ideal for frequent color changes and small-to-medium batch production.
What is the difference between a basket mill and a bead mill?
A basket mill works batch-wise in a single vessel, while a horizontal bead mill circulates material through a sealed chamber for continuous, finer grinding. Choose a basket mill for flexible small-batch production and quick color changes; choose a horizontal bead mill for continuous production and very fine particle sizes.
How often do I need to replace grinding media?
Zirconia beads last 8,000-12,000 hours under normal operation. Glass beads need replacement every 1,500-3,000 hours. Actual lifespan depends on material hardness and disc speed.
How long does it take to change from one color to another?
About 15 minutes: lift the basket, rinse with solvent or water, wipe the disc and basket screen, then lower into the next tank. No pipe flushing is needed.
How much does a basket mill cost?
Pricing depends on capacity, contact materials and configuration rather than a single list price. Share your batch volume, material and target fineness, and POLYC will return a quotation with the recommended model.
What is a basket mill for industrial paint used for?
A basket mill for industrial paint replaces a separate disperser and bead mill. The basket is lowered into the batch so dispersion and grinding happen in one vessel, and the same unit can serve several tanks. It suits pigment paste, ink and coating batches from 30 to 1,500 litres.
Can one basket mill handle ink, dye and pigment paste batches?
Whether the duty is a basket mill for ink, a basket mill for industrial paint, a dye basket mill or a pigment paste batch, the same PZM covers it: it works as an ink basket mill, a paint basket mill and a pigment miller with one basket. Changeover is done by lifting and cleaning the basket, so switching shades takes minutes. With grinding media loaded it becomes a basket bead mill for finer dispersion.
¿Tienen molino de perlas para pintura?
Sí. POLYC suministra molino de perlas para pintura y molinos de canasta para pintura industrial, tintas, tintes y pastas de pigmento, con capacidades de 30 a 1.500 litros, elevación hidráulica y opciones de vacío. Solicite una cotización.
