Liquid Fertilizer Production Line
Complete liquid fertilizer production lines for middle-scale and large-scale operations. Designed output 12,000-24,000 L/day with bead mills, mixing kettles, filtering and filling equipment. Capacity range 12,000-24,000 L/day. Typical applications: Agrochemicals, Water Treatment, Packaging.
Complete liquid fertilizer production lines for middle-scale and large-scale operations. Designed output 12,000-24,000 L/day with bead mills, mixing kettles, filtering and filling equipment.

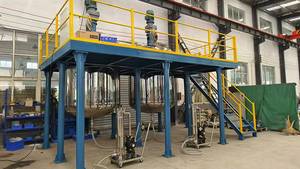

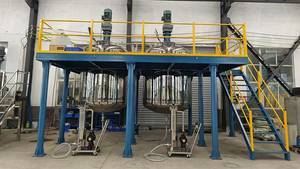

The POLYC Liquid Fertilizer Production Line is a complete turnkey system engineered for middle- and large-scale fertilizer manufacturers, covering the full process from raw-material storage and feeding through jacketed dissolving and chelation, optional bead-mill grinding for suspensions, filtration and automatic filling. With a designed output of 12,000–24,000 L/day (up to 80,000 t/yr), it is built with corrosion-resistant 316L, duplex or lined carbon steel matched to your chemistry and supplied as one accountable package.
Key Facts
- Equipment Type
- Production Lines
- Capacity / Batch Range
- 12,000-24,000 L/day
- Typical Applications
- Agrochemicals, Water Treatment, Packaging
Request a Quote
Response within 24 hours · Engineering consultation · Application review available
Where the Line Performs Best
Industry ApplicationsDissolution, chelation, blending and optional suspension grinding on one configurable platform make the POLYC line the right choice for fertilizer producers serving agriculture, horticulture and contract-blending markets.
🍞
NPK Nutrient Solutions
Homogeneous N-P-K solution blending in jacketed kettles with PLC recipe control.
🌿
Foliar Feeds & Micronutrients
Chelated trace-element foliar feeds and stable homogeneous blends.
💧
Suspension Concentrates
Bead-mill circulation grinding of insoluble solids for pourable suspensions.
🏭
Urea & Salt Dissolution
Jacketed heating dissolves high-solid urea and ammonium feeds.
🧪
Acid & Chelate Reaction
Controlled pH and chelation tanks for EDTA micronutrient complexes.
📦
Filling & Packaging
Automatic filling into bottles, jerrycans, drums and IBC with capping and labeling.
Liquid Fertilizer Line at a Glance
Line Overview12,000–24,000L/day
Designed Output
5,000–80,000t/yr
Line Capacity
1,000–20,000L
Batch Size
316Lduplex / lined
Contact Material
Key Design Features
EngineeringCorrosion-Resistant🛡
Corrosion-Resistant Contact
- 316L / duplex / lined CS
- Matched to your chemistry
- Resists aggressive fertilizer
Modular🧩
Modular Configurable Line
- Every module optional
- Configured to formulation
- Add capacity later
Heated⚙️
Jacketed Dissolving Kettles
- Heating / cooling jacket
- Dissolution & reaction
- Temperature control
Grind💧
Integrated Bead-Mill Grinding
- Circulation grinding
- Suspension fertilizers
- Stable dispersion
Fill📦
Precision Filling
- Packs / drum / IBC
- Auto capping & labeling
- Matched to formats
Control🎙
PLC Recipe Control
- Recipe management
- Consistent batches
- Coordinated controls
Applications by Industry
Selection| Industry | What the POLYC Liquid Fertilizer Line Delivers |
|---|---|
| Agriculture & Farming | NPK liquid fertilizer blending and filling |
| Foliar Nutrition | Chelated micronutrient foliar feed production |
| Suspension Concentrates | Insoluble micronutrient grinding to stable suspension |
| Greenhouse Horticulture | Controlled-release liquid feed preparation |
| Fertilizer Formulators | Urea and ammonium salt heated dissolution |
| Contract Blending | Custom formulation modular lines |
| Micronutrient Suppliers | EDTA chelate reaction and filtration |
| Bulk Agriculture | Drum and IBC bulk filling lines |
| Agrochemical Producers | Integrated grinding, filtering and filling |
| Export Trading | Retail pack and bulk mixed output |
Choosing the Right Liquid Fertilizer Production Line
How to Choose1
Size by capacity
Start from daily output of 12,000–24,000 L/day and annual tonnage up to 80,000 t/yr, then size vessels and the filling line to match.
2
Match chemistry and route
Decide solution versus suspension (suspension adds a bead-mill stage), and specify 316L, duplex or lined carbon steel from your fertilizer chemistry.
3
Choose packaging and control
Pick the filling module for packs, drums or IBC, and load formulations as PLC recipes for repeatable batches.
Related Technical Guides
Guides
AgrochemicalAgrochemical SC Production Line Equipment Guide
SizingPaint Production Line Equipment and Sizing
LayoutHow to Set Up a Paint Production Line: Step-by-Step Layout Guide
ProcessInk Production Line: From Pigment Grinding to Filling
Need a liquid fertilizer production line configured for your plant?
Request a QuotationApplication Scenarios: Fertiliser and Agrochemical Liquid Lines
The same line architecture - dissolution, chelation, mixing, reaction and precision filling - is configured as a Fertilizer production line for NPK solutions and micronutrient suspensions, and can be adapted for other liquid agrochemical routes.
Description
How it works
Main Equipment for Liquid Fertilizer Production Line: 1. Raw Material Storage and Feeding System - Liquid raw material storage tanks and feeding pumps - Solid raw material feeding and weighing system 2. Mixing and Dissolving System - Mixing kettles with agitators for nutrient dissolution - Heating/cooling jacket for temperature control 3. Grinding System (for suspension fertilizers) - Bead mills for fine grinding of solid components - Circulation grinding for consistent particle size 4. Filtering System - Filtering machines for removal of undissolved particles - Bag filters or cartridge filters 5. Filling and Packaging System - Automatic filling machines for bottles, jerrycans, drums - Capping and labeling stations
INDUSTRIES THIS MACHINE SERVES
Industries we serve
LIQUID FERTILIZER LINE VS ALTERNATIVES
Turnkey liquid fertilizer line or piecemeal setup?
| Dimension | POLYC Liquid Fertilizer Line | Manual Batch Blending | Dry Granulation Plant |
|---|---|---|---|
| Scope | Dissolution to filled containers | Manual dissolve + mix only | Compaction/granulation, dry only |
| Suspension grinding | Integrated bead mill circulation | None | N/A |
| Corrosion protection | 316L / duplex / lined CS | Basic SS, corrodes | Carbon steel |
| Annual capacity | 5,000 - 80,000 t/yr | Low, labor-limited | High but dry only |
| Control | PLC recipe management | Manual | Basic PLC |
| Filling | packs / drum / IBC auto | Manual | Bag only |
| Accountability | One supplier package | Multiple vendors | Multiple vendors |
Read the full comparison guide: Agrochemical SC Production Line Equipment Guide
Process Engineering
Working Principle
- 1
A liquid fertiliser line dissolves and blends nutrients, chelates micronutrients and stabilises the solution or suspension before filtration and filling.
- 2
Raw materials are dosed into a jacketed vessel where temperature-controlled agitation completes dissolution; suspension grades require additional shear to keep solids dispersed.
- 3
Final filtration removes undissolved particles before filling into containers or IBC.
Equipment Benefits
Equipment Advantages
- ✓
High-efficiency complete production line reduces labor and processing time.
- ✓
Modular design allows phased investment and future expansion.
- ✓
Precise mixing and grinding ensures consistent nutrient distribution.
- ✓
Turnkey package from raw material handling to final packaged product.
Technical Data
Technical Specifications
| Parameter | Value |
|---|---|
| Line capacity | 5,000 - 80,000 tonnes per year depending on configuration |
| Batch size | 1,000 - 20,000 L per vessel |
| Process | Dissolution, chelation, blending, optional suspension |
| Temperature control | Jacketed vessels with heating and cooling |
| Control system | PLC with recipe management |
| Contact material | Stainless steel 316L, duplex or lined carbon steel |
| Filling | Small packs, drums and IBC |
PRODUCT INQUIRY
Get Price & Specs for This Product
Tell us your material and capacity, our engineer will reply within 24 hours.
Thank you! Our engineer will contact you within 24 hours.
Equipment Guidance
Frequently Asked Questions
What equipment is included in a POLYC liquid fertilizer production line?
A POLYC liquid fertilizer production line covers the full process from raw-material storage and feeding, jacketed mixing and dissolving kettles, optional bead-mill grinding for suspensions, filtration, and automatic filling into packs, drums and IBC. POLYC supplies the complete line as one accountable package configured to your formulation, capacity and process.
Can the line produce both solution and suspension fertilizers?
Yes. The line is engineered for NPK nutrient solutions, chelated foliar feeds and micronutrient suspensions. Solution and chelate routes use jacketed dissolving and reaction kettles, while suspension concentrates add integrated bead-mill circulation grinding to keep insoluble solids stable and pourable.
Which materials are used for contact parts given fertilizer corrosion?
Fertilizer solutions are aggressive to standard stainless steel, so contact parts are specified as stainless steel 316L, duplex stainless or lined carbon steel matched to your chemistry. POLYC selects the material grade during line design rather than using one default for every product.
What capacity can POLYC configure for a liquid fertilizer line?
Designed output for mid- and large-scale operation is 12,000 to 24,000 liters per day, with overall line capacity configurable from 5,000 to 80,000 tonnes per year depending on vessel count and filling layout. Batch size ranges from 1,000 to 20,000 L per vessel.
How is grinding handled for suspension fertilizers?
For suspension concentrates the line integrates bead mills in a circulation grinding loop that reduces insoluble micronutrients and fillers to a fine, stable dispersion. This keeps the suspension homogeneous and prevents settling in storage and during filling.
Is the line modular and can modules be added later?
Yes. Every system module is optional and the line is configured from raw-material feeding, dissolving, grinding, filtration and filling according to your requirements. Additional vessels, a bead-mill stage or a second filling head can be added as capacity grows.
What filling and packaging options are available?
Filling is automatic for small packs, jerrycans, drums and IBC totes, with capping and labeling stations. The filling module is chosen to match your packaging mix so the line outputs retail packs and bulk containers on the same layout.
How is the production line controlled and are recipes managed?
The line runs on a PLC control system with recipe management, so each formulation is stored as a recipe covering dosing, dissolution temperature, grinding and filling setpoints. Operators load a recipe instead of re-entering parameters, which improves repeatability across batches.
