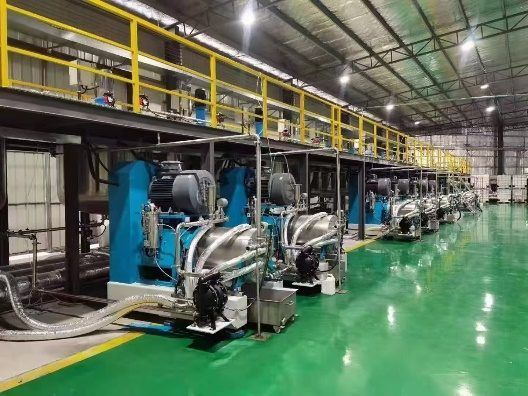

This representative application case explains how POLYC MACHINE engineers would evaluate a process involving coatings and inks made from pigment concentrates, binders, solvents or water, and additives. It is not a report of a named customer's production result. Final material properties, equipment configuration, output, safety obligations and acceptance criteria must be confirmed through representative trials and the customer's quality system.
Process challenge
The process review begins with frequent colour changes, pigment wetting, cleanout time and consistent fineness across small and medium batches. These issues interact: a change intended to increase throughput can alter temperature, residence time, viscosity or product quality. The engineering task is therefore to map the full route from raw-material addition through mixing, milling, transfer, filtration and cleaning rather than selecting a machine from capacity alone.
Material information required
Before a quotation or trial, provide the formulation family, safety data, solids content, viscosity at a stated temperature, feed agglomerate size, target particle-size distribution, density, abrasive or corrosive behaviour and allowable contamination. The project team should also state the batch size or hourly duty, utilities, cleaning method, area classification where relevant, and the laboratory method used to judge product quality.
| Project confirmation item | Why it matters | How it is verified |
|---|---|---|
| Material and solids range | Changes rheology, torque and pumping behaviour | Representative batch record and viscosity test |
| Feed and target size | Sets the required dispersion or grinding duty | Defined particle-size method and sampling point |
| Temperature limit | Protects heat-sensitive ingredients and process stability | Recorded product-temperature curve |
| Capacity requirement | Determines batch schedule and transfer design | Trial mass balance including cleanout |
| Safety and cleaning | Influences materials, controls and changeover | Project review against site requirements |
Recommended process route
For this scenario, POLYC MACHINE would evaluate a basket mill route that combines premixing, dispersion and wet grinding in one temperature-controlled vessel. The exact model, contact materials, seals, vessel geometry, controls and auxiliary equipment are selected from the material brief. Where demanding quality targets apply, a laboratory or pilot trial should establish a practical operating window before the production layout is frozen.
Equipment configuration review
The equipment review covers the main drive and tool geometry, media or mixing tool compatibility where relevant, vessel working volume, cooling surface, temperature instrumentation, transfer pumps, filtration, valves, control philosophy and cleaning access. For a closed process, the review also includes feed points, venting, sampling, drainability and the sequence used to avoid air entrainment or product loss. These choices are documented in the proposal so assumptions can be checked before purchase.
Trial plan and process parameters
A controlled trial changes one major variable at a time. Engineers record the material charge, fill level, speed, media selection where applicable, flow or recirculation rate, mixing time, vacuum sequence where applicable, coolant conditions, power trend and product temperature. Sampling occurs at defined points, using the same analytical method for all samples. Numeric operating values are project confirmation items, not public guarantees: they depend on formulation, equipment scale, utilities and the agreed target.
Quality evaluation and acceptance
The preferred acceptance plan for this application evaluates colour development, fineness, viscosity, gloss, filterability and batch-to-batch repeatability. The customer should define the test method, sampling frequency, acceptable range and retained-sample procedure before the trial. When particle size is important, report the distribution and method rather than a single unqualified number. When visual appearance matters, compare controlled drawdowns or samples under the same conditions. This evidence provides a traceable basis for scale-up.
Scale-up considerations
Scale-up is not a simple volume multiplier. Maintain appropriate similarity in energy input, fill level, tool speed or tip-speed window, residence time, cooling and material preparation, then validate transfer and cleanout at pilot scale. Larger equipment changes surface-area-to-volume ratio and may change heat removal. The production schedule must include raw-material charging, process time, sampling, discharge and colour or product changeover, not just the active machine run time.
Risks, maintenance and safe operation
Key risks include insufficient premixing, excessive temperature, unsuitable media, poor vessel-to-basket geometry and incomplete cleaning between colours. A robust operating procedure defines start-up, normal operation, sampling, shutdown, cleaning and inspection. Inspect seals, screens or separators, wear parts, temperature sensors, grounding connections and transfer lines on a schedule suited to the material and duty. Any unusual temperature, pressure, vibration, power draw or product result should be investigated against the documented baseline before settings are changed.
What this representative case does and does not claim
This page describes an engineering approach and typical decision points. It does not claim a customer name, client testimonial, guaranteed D50 or D90, yield, energy use, capacity, temperature rise or return on investment. Those figures should only be published after authorization and confirmation using the customer's material, test method and installed configuration. No unlicensed site or sample images are used on this page.
Next steps
Send POLYC MACHINE a process brief including material information, current process, target quality, capacity, temperature limit, cleaning requirements and site constraints. Our engineers can recommend a trial plan, review configuration options and prepare a project-specific quotation. Discuss this application with an engineer.
Engineering decision basis
This representative scenario starts with titanium-dioxide and pigment slurry for coatings and printing inks. The preliminary process route uses 1000 L basket mill with an appropriate dissolver and cooling loop. Selection is not based on vessel volume or motor power alone. Engineers must review rheology across the expected temperature range, solids loading, abrasiveness, chemical compatibility, contamination limits, cleaning method, production schedule and the stability of the formulation during recirculation. The principal process risks in this application are color carryover, pigment flotation, temperature rise and inconsistent premixing.
The working assumptions are approximately 15 micrometres D50 after controlled pre-dispersion at the inlet, approximately 5 micrometres D50 as the proposed quality target and a representative 500 L batch. For this configuration, 1.0-2.0 mm zirconia media as an initial trial range. These figures are design inputs for discussion, not a claim of achieved customer performance. A representative material trial and an approved acceptance protocol are required before they become contractual criteria.
Configuration review before manufacture
The equipment review should confirm all wetted materials, elastomers, shaft seals, cooling passages, drive rating, instrumentation and transfer connections. Product-contact surfaces are selected against abrasion, corrosion and purity requirements. The review also covers access for cleaning, removal of wear parts, safe lifting points, drainability and the space needed by operators around the machine. Electrical voltage and frequency, control-panel location, cable entry, utility pressure and communication requirements are recorded on the approved drawing.
Upstream and downstream equipment must be considered as one process. Feed preparation should produce a stable and pumpable material without dry pockets. Transfer pipe diameter, pump type and valve arrangement should avoid excessive pressure loss or material hold-up. Downstream storage, filtration or filling must accept the planned flow without causing the grinding or mixing stage to wait. Where solvent, dust or active materials create additional hazards, the customer is responsible for confirming the site classification and applicable local rules so that the final proposal can be reviewed accordingly.
Installation and commissioning sequence
Installation begins with foundation, access and utility checks against the approved layout. The team verifies equipment level, anchor points, rotation direction, lubrication, cooling-water flow, compressed-air quality, electrical protection and emergency-stop operation. Dry functional checks are completed before product is introduced. Interlocks are tested individually, and operators confirm that valves, pumps and controls match the agreed production sequence.
Wet commissioning then progresses from a compatible flushing liquid to a limited material charge. The first run uses conservative speed, flow, pressure, vacuum or temperature settings as applicable. Samples are taken at defined intervals rather than only at the end of the batch. The engineer records amperage, product temperature, pressure, flow, processing time and visible behavior. Settings are changed one variable at a time, allowing the team to distinguish a genuine process effect from normal sampling variation.
Acceptance criteria and measurement plan
Acceptance should use an agreed sampling method and calibrated instruments. Particle-size results depend on dispersion preparation, dilution, refractive-index settings and instrument model; viscosity depends on spindle, speed and temperature. Those methods must therefore be written into the protocol. For mixed products, samples should be drawn from more than one vessel position. For milled products, inlet and outlet samples should be paired with operating data from the same time window.
| Control point | What to record | Acceptance approach |
|---|---|---|
| Feed condition | Solids, viscosity, temperature and feed size | Within the approved trial window |
| Process stability | Power, pressure, flow, speed and temperature | No unexplained drift or alarm |
| Product quality | Particle size, dispersion, homogeneity or air content | Measured by the agreed laboratory method |
| Capacity | Net saleable output over a timed period | Compared at equivalent quality |
| Energy | Metered kWh and tonnes or litres produced | Report measured kWh per unit of output |
Energy improvement is not estimated from motor nameplate power. Baseline and proposed equipment must be compared at the same product quality, solids level and production boundary. Yield is calculated from accepted output after accounting for retained material, sampling and cleaning losses. This creates an auditable result without presenting unverified percentage improvements.
Operator handover and production records
Operator training covers startup, normal adjustment, controlled shutdown, emergency response, cleaning and inspection. The handover identifies normal operating ranges and clear stop conditions. A batch or shift record should capture raw-material lot numbers, charging order, start and finish time, critical settings, sample results, cleaning confirmation and any deviation. Trend records make it easier to separate formulation variation from mechanical wear or utility changes.
A preventive-maintenance plan is established for seals, bearings, drive components, screens or separation parts, mixing tools and product-contact wear surfaces. Inspection frequency begins conservatively and is adjusted using actual wear observations. Recommended spares are divided into commissioning spares, routine wear parts and longer-lead critical items. This helps the plant plan maintenance without replacing usable parts too early.
How to use this representative case
This page is an engineering reference, not a named-client testimonial. The figures above describe a preliminary design window based on the stated material and process assumptions. Actual fineness, capacity, energy use, yield and batch time vary with formulation, raw-material quality, ambient conditions, operator procedure and the final equipment configuration. POLYC MACHINE will only confirm performance criteria after reviewing the customer's material data, test method and required production boundary.
For a comparable project, provide a technical data sheet, safety data sheet, current process sequence, target quality, desired output and available utilities. Photographs or a dimensioned plant layout help identify transfer distances and access constraints. With those inputs, the engineering team can prepare a configuration, utility list, layout concept and trial plan linked to the relevant equipment page.
Key Takeaways
- Basket mills combine premixing, dispersion and wet grinding in one temperature-controlled vessel, which shortens the route and speeds colour changes.
- Fineness and temperature are governed by bead charge, speed and cooling - not by machine size alone.
- Batch size and changeover cleaning time decide whether a batch basket mill or a continuous bead-mill line is the better route.
- A representative trial on the actual pigment-binder-solvent system is the reliable way to confirm finish quality.
Typical achievable targets depend on material, formulation and equipment configuration; they are confirmed by representative trials rather than assumed.
