Dynamic Disc Type Horizontal Bead Mill
Dynamic Disc Type Horizontal Bead Mill: Horizontal disc-type bead mill for medium-to-fine grinding, with even media distribution for consistent particle size. Capacity range 0.5 - 1,000 L. Typical applications: Automotive Coatings, Industrial Coatings, Printing Inks, Architectural Paints, Pigment Pastes.
Horizontal disc-type bead mill for medium-to-fine grinding, with even media distribution for consistent particle size.

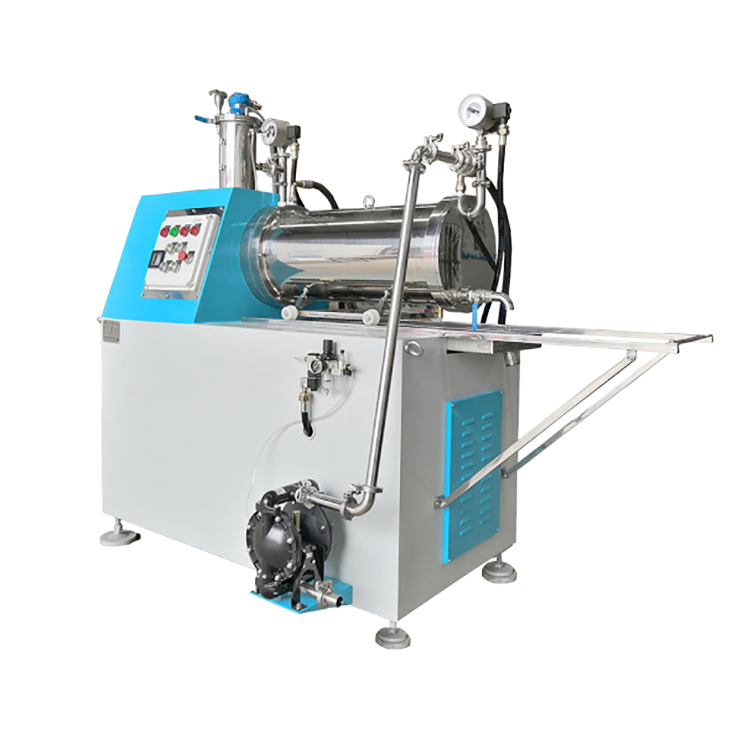

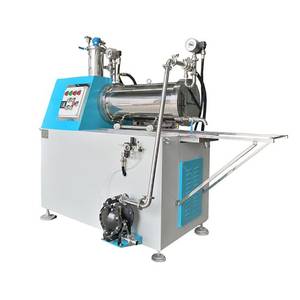

The POLYC Dynamic Disc Type Horizontal Bead Mill is a continuous wet grinding mill built for high-volume fine grinding of pigments, paints, inks, agrochemical SC formulations, ceramics and battery slurries. Material flows through a sealed horizontal grinding chamber where a dynamically agitated disc rotor drives 0.3 to 2.0 mm zirconia beads to reduce particle size, then discharges continuously without batch transfer.
Key Facts
- Equipment Type
- Grinding & Milling
- Capacity / Batch Range
- 0.5 - 1,000 L
- Motor Power
- 11 - 75 kW
- Grinding Fineness / Bead Size
- 1 - 15 micron depending on media and passes
- Typical Applications
- Automotive Coatings, Industrial Coatings, Printing Inks, Architectural Paints
Request a Quote
Response within 24 hours · Engineering consultation · Application review available
Where the Mill Performs Best
ApplicationsA dynamically agitated disc rotor in a sealed chamber gives the POLYC dynamic disc mill steady high-volume throughput and uniform 1 to 15 micron fineness, which makes it the right mill for continuous production lines rather than frequent small-batch changeover.
🎔
Pigment Concentrates
Continuous fine grinding of high-density pigment slurries.
🎨
Paints & Coatings
Paint base dispersion held at 1 to 15 micron fineness.
🔭
Printing Inks
Ink vehicle dispersion with stable, repeatable particle size.
🧾
Agrochemical SC
Suspension concentrate formulations with temperature control.
⚙️
Ceramic & Battery
Ceramic and electrode slurry grinding in a sealed chamber.
🚚
High-Volume Lines
Continuous 50 to 1,500 L/h throughput for steady output.
Dynamic Disc Bead Mill at a Glance
Key Specs5–150L
Chamber Volume
11–75kW
Motor Power
1–15µm
Fineness Range
0.3–2.0mm
Zirconia Media
Key Design Features
EngineeringDrive⚡
Dynamic Disc Rotor
- High-energy grinding zone
- Continuous agitation
- Uniform fineness
Scalable🔨
Modular Chamber
- 5 to 150 L range
- 11 to 75 kW drive
- Pilot to full line
Cool❄️
Jacketed Cooling
- Jacketed chamber
- Temperature interlock
- Auto-stop on overheat
Media🧮
Zirconia Media
- 0.3 to 2.0 mm
- High-purity ceramic
- Stable size reduction
Material🏭
Contact Options
- Stainless steel
- Ceramic-lined
- Hardened alloy
Output🚚
Continuous Throughput
- 50 to 1,500 L/h
- Sealed chamber
- No batch transfer
Applications by Industry
Selection| Industry | What the POLYC Dynamic Disc Bead Mill Delivers |
|---|---|
| Paints & Coatings | Continuous pigment grinding to 1 to 15 micron |
| Printing Inks | Ink base dispersion with stable fineness |
| Pigments | High-density pigment concentrates |
| Agrochemicals | SC suspension concentrates, temperature controlled |
| Ceramics | Ceramic slurries and glaze grinding |
| Battery Materials | Electrode and ceramic slurry grinding |
| Cosmetics | Cosmetic dispersions with gentle cooling |
| Specialty Chemicals | Fine chemical grinding on a continuous line |
| Adhesives & Sealants | Filler dispersion for viscous formulations |
| Inks & Varnishes | Varnish and ink vehicle milling |
| Pharmaceuticals | API suspensions where applicable |
| Construction | Colorant and paste grinding |
Choosing the Right Dynamic Disc Bead Mill
How to Choose1
Match throughput and chamber size
Pick a chamber from the 5 to 150 L range so the mill delivers your target 50 to 1,500 L/h continuous output, with smaller 5 to 30 L chambers for pilot and specialty runs.
2
Set fineness and media
Plan for the 1 to 15 micron window with 0.3 to 2.0 mm zirconia media; if you need sub-micron or nano sizes, pair the line with a pin-type nano bead mill instead.
3
Confirm contact material and cooling
Specify stainless steel, ceramic-lined or hardened alloy for the contact parts, and keep the jacketed chamber with temperature interlock for heat-sensitive agrochemical and ink formulations.
Related Technical Guides
Guides
PrincipleHow a Bead Mill Works: Working Principle
Efficiency7 Factors That Affect Bead Mill Grinding Efficiency
SpecsBead Mill Selection Guide: Specifications
CompareBasket Mill vs Bead Mill: Which to Use
Need a dynamic disc horizontal bead mill configured for your continuous grinding line?
Request a QuotationApplication Scenarios: Gravure Ink, Printing Ink and Paste Grinding
Disc geometry makes this mill economical for continuous production. It is widely run as a bead mill for gravure ink and for printing ink base grinding where a stable particle-size distribution at 3-10 µm has to be held over long campaigns, and as a bead mill for paste where high-solids pigment or filler pastes must be reduced before letdown.
Selection Parameters
Choose this bead mill when your target process falls within the following ranges. The final bead size and model are confirmed after reviewing your material and target fineness.
| Target fineness | 10 – 50 µm |
|---|---|
| Throughput | 50 kg/h – 2 t/h |
| Maximum viscosity | 20,000 cps |
| Recommended zirconia bead size | 1.0 – 2.0 mm |
| Wetted parts options | Alloy steel or polyurethane |
Description
How it works
The POLYC dynamic disc type horizontal bead mill is a continuous wet grinding mill built for high-volume fine grinding of pigments, paints, inks, agrochemical SC formulations, ceramics and battery slurries. Material flows through a sealed horizontal grinding chamber where a dynamically agitated disc rotor drives 0.3 to 2.0 mm zirconia beads to reduce particle size, then discharges continuously without batch transfer, which makes it suited to steady high-volume production rather than frequent small-batch changeover. The mill covers a chamber volume of 5 to 150 L with motor power from 11 to 75 kW and throughput of 50 to 1,500 L/h, delivering a fineness range of 1 to 15 micron. The grinding chamber is jacketed for cooling water and fitted with a temperature interlock that stops the mill if material temperature exceeds the preset limit, protecting heat-sensitive formulations during continuous high-load grinding, and contact parts are offered in stainless steel, ceramic-lined or hardened alloy to match abrasiveness and corrosion needs. Operation is paired with a high-speed disperser for pre-dispersion in most paint, ink and agrochemical lines, and the mill is built for straightforward maintenance with accessible seals, screen and disc rotor. POLYC specifies chamber size, contact material, drive power and cooling per application, and provides layout, installation guidance and spare-part support for continuous-production lines.
INDUSTRIES THIS MACHINE SERVES
Industries we serve
Battery Materials
Cathode/anode slurry grinding for lithium battery production, with metal contamination control.
Learn more →Agrochemicals
SC suspension concentrate and water-based pesticide formulation grinding.
Learn more →TYPICAL PERFORMANCE REFERENCE
| Material Type | Target Particle Size | Recommended Bead Size | Viscosity Range |
|---|---|---|---|
| Industrial coatings | 5-15 μm | 1.5-2.0 mm | Medium |
| Ink / pigment paste | 1-5 μm | 0.8-1.2 mm | Low to Medium |
| Battery materials | < 1 μm | 0.4-0.8 mm | Medium |
| Agrochemical SC | 3-10 μm | 1.0-1.5 mm | Medium |
Typical reference values only. Actual results depend on formulation, bead material, and process conditions. Material testing is recommended before final selection.
Looking for a complete ink or coating production line?
View Turnkey Ink Line →View Turnkey Paint Line →BEAD MILL VS ALTERNATIVES
Dynamic disc bead mill or another mill?
| Dimension | POLYC Dynamic Disc Bead Mill | Basket Mill | High-Speed Disperser | Pin-Type Bead Mill |
|---|---|---|---|---|
| Process | Continuous fine grinding | Dispersion + grinding in one basket | Dispersion only | Continuous ultra-fine grinding |
| Fineness | 1 - 15 micron | 5 - 20 micron | Pre-disperse only | Sub-micron possible |
| Media | 0.3 - 2.0 mm zirconia | 1.2 - 2.5 mm zirconia | None | 0.1 - 1.2 mm zirconia |
| Throughput | 50 - 1,500 L/h continuous | Batch vessel | Batch | Continuous |
| Cooling | Jacketed + temp interlock | Optional jacket | Limited | Jacketed chamber |
| Best for | High-volume continuous | Multi-shade batch | Pre-mix | Nano / ultra-fine |
| Footprint | Fixed line | One unit, many tanks | Fixed unit | Fixed line |
Read the full comparison guide: Basket Mill vs Bead Mill: Which to Use
Process Engineering
Working Principle
- 1
Premixed slurry is pumped into the horizontal grinding chamber.
- 2

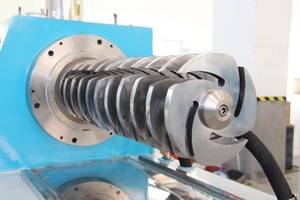

Dynamic discs accelerate the media, producing impact, shear, and friction throughout the product.
- 3
The large-diameter dynamic separator keeps media inside while accommodating higher-solids or higher-viscosity slurries.
- 4
Segmented cooling passages remove heat before the product leaves the mill.
Equipment Benefits
Equipment Advantages
- ✓
Large dynamic separator suits higher-solids and higher-viscosity products.
- ✓
Double-end mechanical seal provides a robust modular sealing arrangement.
- ✓
Segmented cooling passages improve heat exchange.
- ✓
Wear-resistant contact-part options support abrasive duties.
Technical Data
Technical Specifications
| Parameter | Value |
|---|---|
| Chamber volume | 5 - 150 L |
| Motor power | 11 - 75 kW |
| Fineness range | 1 - 15 micron depending on media and passes |
| Media size | 0.3 - 2.0 mm zirconia |
| Throughput | 50 - 1,500 L/h depending on model and product |
| Contact material | Stainless steel, ceramic-lined or hardened alloy |
| Cooling | Jacketed chamber with temperature interlock |
PRODUCT INQUIRY
Get Price & Specs for This Product
Tell us your material and capacity, our engineer will reply within 24 hours.
Thank you! Our engineer will contact you within 24 hours.
Equipment Guidance
Frequently Asked Questions
What is the POLYC dynamic disc type horizontal bead mill and what does it do?
The POLYC dynamic disc type horizontal bead mill is a continuous wet grinding mill built for high-volume fine grinding of pigments, paints, inks, agrochemical SC formulations, ceramics and battery slurries. Material flows through a sealed horizontal grinding chamber where a dynamically agitated disc rotor drives 0.3 to 2.0 mm zirconia beads to reduce particle size, then discharges continuously without batch transfer.
What fineness can the dynamic disc bead mill achieve?
The mill delivers a fineness range of 1 to 15 micron using 0.3 to 2.0 mm high-purity zirconia media. For most pigment, coating and agrochemical applications this covers the standard 1 to 15 micron window; where sub-micron or nano sizes are required, a pin-type nano bead mill is the better choice.
What grinding media and contact materials are used?
Grinding uses 0.3 to 2.0 mm zirconia beads, and contact parts are available in stainless steel, ceramic-lined or hardened alloy depending on abrasiveness and corrosion needs. The ceramic-lined and hardened-alloy options protect the chamber when grinding abrasive pigments or fillers.
How is temperature controlled during continuous grinding?
The grinding chamber is jacketed for cooling water and fitted with a temperature interlock. The interlock stops the mill if material temperature exceeds the preset limit, protecting heat-sensitive formulations such as agrochemical SC and solvent-based inks during continuous high-load grinding.
What throughput and chamber sizes are available?
Chamber volume spans 5 to 150 L across the range, with motor power from 11 to 75 kW and throughput of 50 to 1,500 L/h. Smaller 5 to 30 L chambers suit pilot and specialty runs, while the 150 L chamber serves high-volume continuous lines.
How does a dynamic disc mill differ from a basket mill?
A basket mill works batch-wise in a single vessel and suits frequent colour changes and multi-shade production, while the dynamic disc horizontal bead mill runs continuously through a sealed chamber for higher hourly throughput and finer, more uniform particle size. Choose the bead mill for steady high-volume output and the basket mill for flexible small-to-medium batches.
Do I need a disperser before the bead mill?
Usually yes. A high-speed disperser first wets and deagglomerates the powder, then the bead mill does final fine grinding. This two-step process gives better results and faster milling than feeding dry powder directly into the bead mill, and it is the standard configuration for paint, ink and agrochemical lines.
Is the dynamic disc bead mill customizable and how is it maintained?
Yes. Chamber size, contact material (stainless, ceramic-lined or hardened alloy), drive power and cooling are specified per application, and the mill is built for straightforward maintenance with accessible seals, screen and disc rotor. POLYC provides layout, installation guidance and spare-part support for continuous-production lines.
Industry Applications
Applications
Automotive Coatings
OEM topcoat and primer grinding to 5-10 µm in continuous duty
Industrial Coatings
coil and can coating dispersion to ≤10 µm at 200-2000 L/h
Printing Inks
gravure and flexo ink production to 3-8 µm
Architectural Paints
high-volume latex grinding to 5-15 µm
Pigment Pastes
continuous pigment concentrate production to 5-10 µm
Agrochemicals
suspension concentrate milling to D90 ≤5 µm
Battery Materials
electrode slurry processing to 1-5 µm
Ceramics
glaze and electronic ceramic slurry grinding to 1-5 µm
Corrosion Protection
anticorrosive primer production to ≤10 µm
Wood Coatings
industrial wood coating dispersion to 5-10 µm
