Paint/Coating Production Line
Paint/Coating Production Line POLYC is dedicated to designing, manufacturing, installing and setting up all kinds of paint production lines such as latex paint. Our own equipment covers the main parts of... Capacity range Custom throughput. Typical applications: Architectural Paints, Industrial Coatings, Automotive Coatings, Wood Coatings, Coil & Can Coatings.
Paint/Coating Production Line POLYC is dedicated to designing, manufacturing, installing and setting up all kinds of paint production lines such as latex paint. Our own equipment covers the main parts of common paint production equipment, including dispersing machines, mills, mixers, filters, filling machines, etc. We are also able to offer steel-structure construction, pipeline installation, electrical fitting and so on.

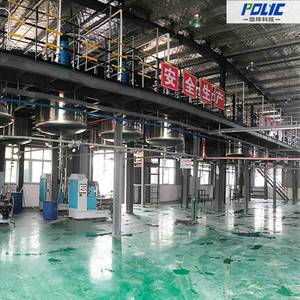

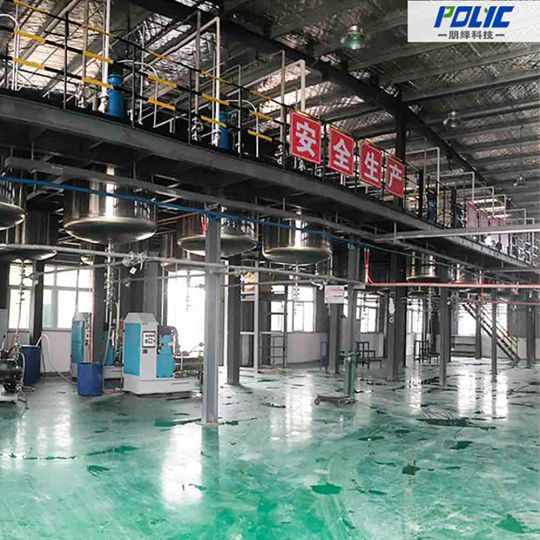

The POLYC Paint/Coating Production Line is a complete turnkey manufacturing system engineered for architectural paints, industrial and automotive coatings, wood, coil, marine and powder coating production, taking each batch from raw material dosing through to filled, labelled and palletised containers. POLYC designs, manufactures, installs and commissions the whole line as one accountable package, covering dispersing machines, bead mills, mixers, filters and filling machines plus steel-structure construction and pipeline installation.
Key Facts
- Equipment Type
- Production Lines
- Capacity / Batch Range
- Custom throughput
- Typical Applications
- Architectural Paints, Industrial Coatings, Automotive Coatings, Wood Coatings
Request a Quote
Response within 24 hours · Engineering consultation · Application review available
Where the Paint/Coating Line Performs Best
Industry ApplicationsA modular sequence of dosing, dispersion, milling, tinting, filtration and filling makes the POLYC line the right choice for coating manufacturers scaling from a single product to a full multi-shade plant.
🎑
Architectural & Decorative
Latex and decorative paints produced at 2,000-50,000 tonnes per year with stable colour and rheology.
🚗
Industrial & Automotive
OEM and refinish coating lines with tight film-build and colour control.
🏘
Wood Coatings
Furniture and joinery coatings with repeatable viscosity and sheen.
🎚
Coil & Can Coatings
Continuous coating manufacturing with consistent line speed and quality.
🛡
Marine & Corrosion
Protective primers, mid-coats and topside coatings for harsh environments.
🧾
Powder & Plastic
Powder coating base preparation and coatings for plastic substrates.
Paint Line at a Glance
Line Overview2,000–50,000t/yr
Line Capacity
500–15,000L
Batch Size
1–2stages
High-Shear Dispersion
1–2opt.
Bead Mill Stages
Key Design Features
EngineeringRepeatable⚖️
Integrated Dosing
- Recipe-controlled weighing
- Automatic raw-material dosing
- Lower operator variability
Fine⚙️
High-Shear + Milling
- High-shear dispersion stages
- Optional 1-2 bead mill stages
- Sized to product fineness
On-colour🎨
Automatic Tinting
- Colourant dosing for shades
- Multi-shade production
- Recipe-driven accuracy
On-spec🎤
Standardisation
- Viscosity control
- Standardisation before filling
- Consistent batch quality
Clean🧼
Filtration & QC
- Filtration stage
- Quality-control sampling
- Protects downstream equipment
Integrated🔧
Filling & Palletising
- Fill, cap, label, palletise
- Sized to your formats
- Pails, drums, IBC, cartons
Applications by Industry
Selection| Industry | What the POLYC Paint Line Delivers |
|---|---|
| Architectural Paints | Decorative and latex paints at 2,000-50,000 t/yr |
| Industrial Coatings | Protective and general industrial coating production |
| Automotive Coatings | OEM and refinish lines with tight film-build control |
| Wood Coatings | Furniture and joinery coating production |
| Coil & Can Coatings | Continuous coating manufacturing |
| Construction Chemicals | Architectural coating and waterproofing production |
| Marine Coatings | Protective and topside coating manufacturing |
| Corrosion Protection | Primer and mid-coat production |
| Powder Coatings | Powder coating base preparation |
| Plastic Coatings | Coating production for plastic substrates |
Choosing the Right Paint Production Line
How to Choose1
Define the scope
List product families, annual output, batch sizes, formulation routes and packaging formats so the line is sized to real demand.
2
Size each stage
Size dispersion, milling, mixing, filtration, storage and filling from your production schedule, choosing 1-2 high-shear stages and optional bead milling for the target fineness.
3
Confirm site and expansion
Plan utilities, solvent zoning and explosion-proof requirements, automation level, cleaning strategy, building constraints and future expansion so the line grows with your business.
Related Technical Guides
Guides
EquipmentPaint Production Line Equipment and Sizing
DispersionPigment Dispersion Fundamentals Explained
SafetyExplosion-Proof Equipment for Solvent-Based Coatings
LayoutHow to Set Up a Paint Production Line: Step-by-Step Layout Guide
Need a paint or coating production line configured for your plant?
Request a QuotationDescription
How it works

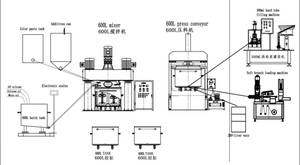

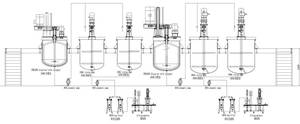

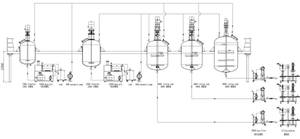

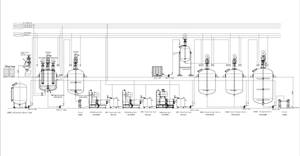

The POLYC Paint/Coating Production Line is a complete turnkey system that takes raw material dosing and pre-mixing through high-shear dispersion, optional bead milling, colourant tinting, filtration and finally filling, capping, labelling and palletising. POLYC designs, manufactures, installs and commissions the whole line as one accountable package.
Configurations serve architectural, industrial, automotive, wood, coil, marine and powder coatings, with modular stages for both water-based and solvent-based formulations. Optional ceramic-lined mills protect abrasion-sensitive products, and explosion-proof zoning, vapour management and dust collection are engineered for solvent-based routes.
Central PLC controls with recipe management and batch reporting improve repeatability and production visibility, while layout, steel-structure construction, piping, utilities and future expansion are engineered together so the line grows with your business.
INDUSTRIES THIS MACHINE SERVES
Industries we serve
PAINT LINE VS STANDALONE EQUIPMENT
Turnkey line or individual machines?
| Dimension | POLYC Paint/Coating Line | Standalone Mixer + Mill |
|---|---|---|
| Scope | Dosing to palletised containers | Single process step |
| Annual capacity | 2,000 - 50,000 t/yr | Limited by manual handling |
| Batch size | 500 - 15,000 L / vessel | Depends on unit only |
| Dispersion | 1 - 2 high-shear stages | Single disperser |
| Milling | optional 1 - 2 bead mill stages | Same mills, less integration |
| Control | PLC, recipe + batch reporting | Separate, manual transfer |
| Filling | Fill / cap / label / palletise | External, manual |
| Accountability | One supplier package | Multiple vendors |
Read the full comparison guide: Paint Production Line Equipment and Sizing
Process Engineering

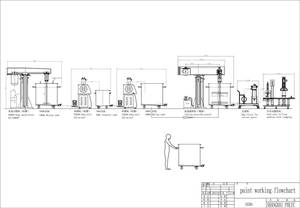

Working Principle
- 1
Raw materials are dosed and premixed before high-speed dispersion and, where required, bead or basket milling.
- 2
The batch is adjusted in mixing or let-down vessels, then filtered and transferred to filling equipment.
- 3
Piping, controls, cooling, dust or vapor management, and cleaning systems connect the stages into one production process.
Equipment Benefits
Equipment Advantages
- ✓
Integrated process design provides one accountable equipment package.
- ✓
Modular stages can serve water-based or solvent-based formulations.
- ✓
Central controls improve batch repeatability and production visibility.
- ✓
Layout, piping, utilities, and future expansion are engineered together.
Technical Data
Technical Specifications
| Parameter | Value |
|---|---|
| Line capacity | 2,000 - 50,000 tonnes per year depending on configuration |
| Batch size | 500 - 15,000 L per vessel |
| Dispersion stages | 1 - 2 high-shear stages |
| Milling | Optional, 1 - 2 bead mill stages |
| Control system | PLC with recipe management and batch reporting |
| Contact material | Stainless steel 304 / 316L |
| Utilities | Electrical, compressed air, cooling water, optional steam |
PRODUCT INQUIRY
Get Price & Specs for This Product
Tell us your material and capacity, our engineer will reply within 24 hours.
Thank you! Our engineer will contact you within 24 hours.
Equipment Guidance
Frequently Asked Questions
What is a POLYC paint and coating production line and what does it include?
A POLYC paint and coating production line is a complete turnkey system covering raw material dosing and pre-mixing, high-shear dispersion, optional bead milling, colourant tinting, filtration, and integrated filling, capping, labelling and palletising. POLYC designs, manufactures, installs and commissions the whole line as one accountable package, including steel-structure construction and pipeline installation.
What throughput and batch sizes can the line handle?
Line capacity is configurable from 2,000 to 50,000 tonnes per year, with per-vessel batch sizes from 500 to 15,000 L. The exact configuration depends on your product families, annual output and packaging formats.
Does the line cover both water-based and solvent-based coatings?
Yes. The stages are modular so the same platform serves water-based and solvent-based formulations. Solvent-based routes are engineered with explosion-proof zoning, vapour management and dust collection, and optional ceramic-lined mills protect abrasion-sensitive products.
How is colour consistency and multi-shade production handled?
Automatic tinting and colourant dosing with recipe-controlled weighing support multi-shade production, while viscosity and standardisation control before filling keeps every batch on specification.
What milling and fineness can the line achieve?
High-shear dispersion is followed by optional one to two bead mill stages sized to the fineness target, covering architectural paints through industrial and automotive coating requirements.
How is batch repeatability and quality controlled?
A central PLC system with recipe management and batch reporting controls dosing, dispersion, milling, standardisation and filling, with filtration and quality-control sampling points built into the line.
How do I size and select the right paint production line?
Start by defining product families, annual output, batch sizes, formulation routes and packaging. Then size dispersion, milling, mixing, filtration, storage and filling from your production schedule, and confirm utilities, solvent zoning, automation level, cleaning strategy, building constraints and future expansion.
Does POLYC provide installation, commissioning and future expansion support?
Yes. POLYC delivers line design, equipment manufacturing, installation and commissioning as one package, including steel-structure construction and pipeline installation, and engineers layout, utilities and future expansion together so the line grows with your business.
Industry Applications
Applications
Architectural Paints
decorative paint manufacturing at 2000-50000 tonnes/year
Industrial Coatings
protective and general industrial coating production
Automotive Coatings
OEM and refinish paint lines
Wood Coatings
furniture and joinery coating production
Coil & Can Coatings
continuous coating manufacturing
Construction Chemicals
architectural coating and waterproofing production
Marine Coatings
protective and topside coating manufacturing
Corrosion Protection
primer and mid-coat production
Powder Coatings
powder coating base preparation
Plastic Coatings
coating production for plastic substrates
WHY POLYC MACHINE
Built on 25 Years of Engineering Excellence
Every machine is designed by our in-house R&D team, built in our own factory, and supported by the same team that has delivered over 8,000 systems worldwide.
ISO 9001 & CE Certified
Manufactured under an ISO 9001 quality management system. All machines comply with CE directives, with EC Declaration of Conformity for every order.
25 Years Experience
Since 2001, POLYC has engineered wet grinding, dispersing and mixing systems for global manufacturers.
3-Year Warranty
Every machine carries a 3-year warranty with ongoing spare-parts supply and technical support after delivery.
30-Day Delivery
Standard models ship within 30 days of order confirmation. Custom-engineered lines are scheduled against your project timeline.
Free Installation Guidance
Free installation guidance and operator training are included with every machine, covering commissioning and safe start-up.
Custom Engineering
From lab-scale 0.5L to 12,000L production systems. Material testing, configuration and process design included.
24-Hour Response
Engineering consultation within 24 hours. Application review, technical specs and quotation delivered fast.
Global Shipping
Export-ready packaging with full documentation. DDP/FOB/CIF terms available for 80+ countries.
Lifetime Technical Support
Genuine spare parts, remote diagnostics and lifetime technical support for every machine we build.
