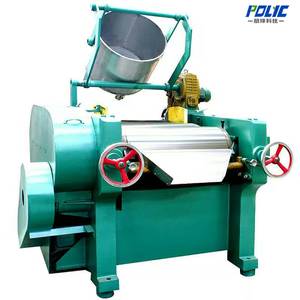

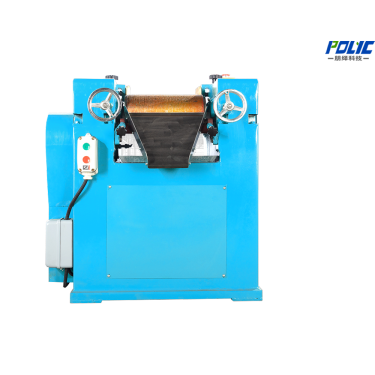

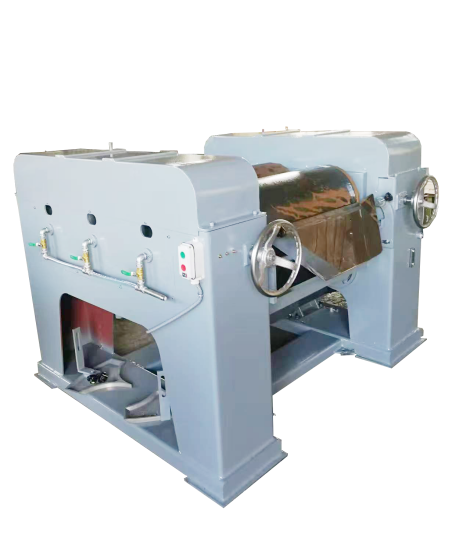

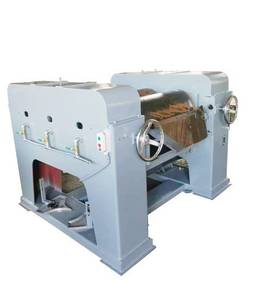

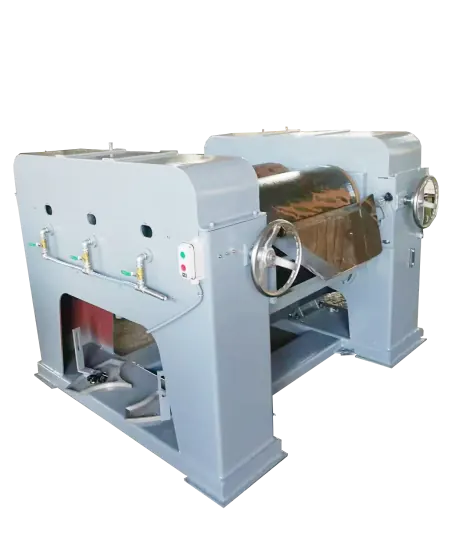

PTM Triple Roller Mill: PTM Triple-roller mill is mainly used in paint, printing ink, pigment, plastic, etc., especially mill and disperse products with high viscosity and sm. Capacity range 0.5 - 1,000 L. Typical applications: Printing Inks, Pigment Pastes, Cosmetics, Pharmaceuticals, Electronics.
PTM Triple-roller mill is mainly used in paint, printing ink, pigment, plastic, etc., especially mill and disperse products with high viscosity and sm
PTM Triple-roller mill is mainly used in paint, printing ink, pigment, plastic, etc., especially mill and disperse products with high viscosity and small granularity.
Response within 24 hours · Engineering consultation · Application review available
PTM Triple Roller Mill is applied across multiple industries. The configuration is matched to your material, fineness target and batch volume.
laboratory and pilot ink milling to ≤5 μm at paste viscosity
small-batch colour paste dispersion to ≤10 μm
lipstick and paste cosmetic development to ≤10 μm
ointment development to ≤10 μm on pilot scale
solder and conductive paste samples to ≤10 μm
chocolate and paste refining trials to 15-30 μm
Compact three-roll configuration for laboratory and pilot work
Roller-shear dispersion suited to very high viscosity pastes
Adjustable roller gap for parameter development
Small batch capability reducing material requirement
Suitable for offset ink, cosmetics and electronic pastes
Simple cleaning between development samples
| Industry | Typical Application |
|---|---|
| Printing Inks | laboratory and pilot ink milling to ≤5 μm at paste viscosity |
| Pigment Pastes | small-batch colour paste dispersion to ≤10 μm |
| Cosmetics | lipstick and paste cosmetic development to ≤10 μm |
| Pharmaceuticals | ointment development to ≤10 μm on pilot scale |
| Electronics | solder and conductive paste samples to ≤10 μm |
| Food | chocolate and paste refining trials to 15-30 μm |
| Ceramics | ceramic ink and glaze paste preparation to ≤10 μm |
| Adhesives & Sealants | paste adhesive development at high viscosity |
| Industrial Coatings | high-viscosity paste finishing on small batches |
| Plastic Coatings | plastisol colour paste dispersion to ≤10 μm |
Confirm viscosity, initial agglomerate size, target fineness, temperature sensitivity, and required throughput.
Select roller material, roller diameter, gap-control method, and cooling arrangement from the formulation.
Use guarded feeding and operating procedures appropriate to high-viscosity pastes.
Need help specifying the PTM Triple Roller Mill for your process?
Request a QuotationDescription
PTM Triple-roller mill is mainly used in paint, printing ink, pigment, plastic, etc., especially mill and disperse products with high viscosity and small granularity. Due to the mutual squeezing of three horizontal alloy bowls and friction with different velocities, a great milling effect can be rea Compact three-roll configuration for laboratory and pilot work Roller-shear dispersion suited to very high viscosity pastes Adjustable roller gap for parameter development Typical applications include Printing Inks, Pigment Pastes, Cosmetics, Pharmaceuticals. Confirm viscosity, initial agglomerate size, target fineness, temperature sensitivity, and required throughput.
INDUSTRIES THIS MACHINE SERVES
Cathode/anode slurry grinding for lithium battery production, with metal contamination control.
Learn more →SC suspension concentrate and water-based pesticide formulation grinding.
Learn more →TYPICAL PERFORMANCE REFERENCE
| Material Type | Target Particle Size | Recommended Bead Size | Viscosity Range |
|---|---|---|---|
| Industrial coatings | 5-15 μm | 1.5-2.0 mm | Medium |
| Ink / pigment paste | 1-5 μm | 0.8-1.2 mm | Low to Medium |
| Battery materials | < 1 μm | 0.4-0.8 mm | Medium |
| Agrochemical SC | 3-10 μm | 1.0-1.5 mm | Medium |
Typical reference values only. Actual results depend on formulation, bead material, and process conditions. Material testing is recommended before final selection.
MACHINE COMPARISON
| Parameter | PTM Triple Roller Mill | Basket Mill | 1000L Basket Mill For Pigment | 20L Pin Type Bead Mill |
|---|---|---|---|---|
| Motor power | 0.75 - 7.5 kW | 4 - 45 kW | 30 - 55 kW | 5.5 - 11 kW |
| Cooling | Water-cooled roller option | Optional jacketed vessel | Optional jacketed vessel | Jacketed chamber |
| Roller diameter | 80 - 260 mm depending on model | — | — | — |
| Roller length | 200 - 600 mm depending on model | — | — | — |
| Speed ratio | differential, model dependent | — | — | — |
Read the full comparison guide: Top Chinese High Shear Disperser Manufacturers 2026 Guide
Process Engineering
Material is fed into the gap between three horizontally arranged rollers operating at different surface speeds.
Compression and differential shear progressively break agglomerates and distribute solids through the carrier.
Successive adjustable gaps control the final dispersion before the product is removed from the last roller.
Equipment Benefits
Strong compression and differential shear handle high-viscosity pastes.
Adjustable roller gaps provide direct control of the dispersion process.
Wear-resistant rollers extend service life.
Roll cooling helps protect temperature-sensitive formulations.
Technical Data
| Parameter | Value |
|---|---|
| Roller diameter | 80 - 260 mm depending on model |
| Roller length | 200 - 600 mm depending on model |
| Motor power | 0.75 - 7.5 kW |
| Speed ratio | differential, model dependent |
| Gap setting | Manual or hydraulic depending on model |
| Roller material | Chilled cast iron or special alloy |
| Cooling | Water-cooled roller option |
PRODUCT INQUIRY
Tell us your material and capacity, our engineer will reply within 24 hours.
Equipment Guidance
The achievable fineness depends on media size, rotor geometry and the number of passes. POLYC confirms the endpoint on your own material in a trial run before the configuration is fixed.
The mill runs with high-purity zirconia or ceramic media selected to the target fineness and the separator opening. Chamber and rotor options are chosen to suit the material; product-contact parts are stainless steel / configurable.
Typical duties cover Printing Inks, Pigment Pastes, Cosmetics. POLYC reviews your material data before recommending a chamber, media size and pass count.
Provide the material type, starting and target particle size, solids loading, batch volume and required throughput. POLYC returns a configuration with media recommendation and an expected pass count.
Industry Applications
laboratory and pilot ink milling to ≤5 µm at paste viscosity
small-batch colour paste dispersion to ≤10 µm
lipstick and paste cosmetic development to ≤10 µm
ointment development to ≤10 µm on pilot scale
solder and conductive paste samples to ≤10 µm
chocolate and paste refining trials to 15-30 µm
ceramic ink and glaze paste preparation to ≤10 µm
paste adhesive development at high viscosity
high-viscosity paste finishing on small batches
plastisol colour paste dispersion to ≤10 µm
