Pin Type Bead Mill
Horizontal pin-type bead mill for nanometer-range grinding, supporting media down to 0.2mm with centrifugal separation and force cooling.
Laboratory Equipment

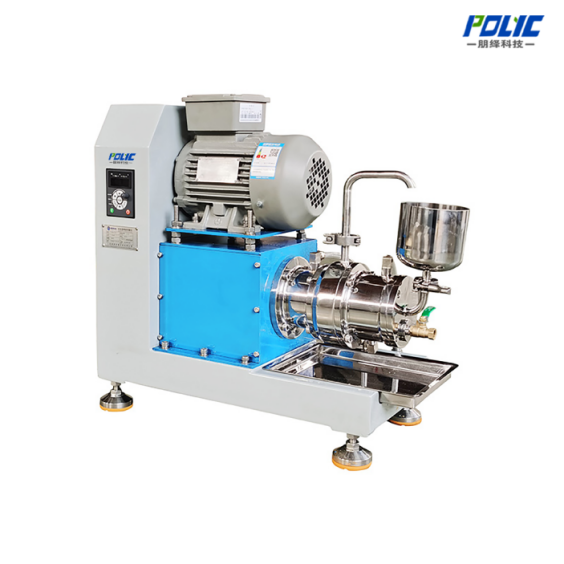

Laboratory Pin Type Bead Mill
Laboratory Pin Type Bead Mill: A laboratory pin-type bead mill for nano grinding research, formulation development and small-volume custom dispersion. It gives laboratory access to. Capacity range 0.2 - 1 L. Typical applications: Battery Materials, Printing Inks, Ceramics, Pharmaceuticals, Pigment Pastes.
A laboratory pin-type bead mill for nano grinding research, formulation development and small-volume custom dispersion. It gives laboratory access to
A laboratory pin-type bead mill for nano grinding research, formulation development and small-volume custom dispersion.
Key Facts
- Equipment Type
- Laboratory Equipment
- Capacity / Batch Range
- 0.2 - 1 L
- Motor Power
- 1.1 - 4 kW
- Grinding Fineness / Bead Size
- sub-100 nm to 2 micron depending on media
- Typical Applications
- Battery Materials, Printing Inks, Ceramics, Pharmaceuticals
Request a Quote
Response within 24 hours · Engineering consultation · Application review available
Where the Laboratory Pin Type Bead Mill Performs Best
Industry ApplicationsLaboratory Pin Type Bead Mill is applied across multiple industries. The configuration is matched to your material, fineness target and batch volume.
🎨
Battery Materials
nano grinding trials for electrode slurry development
🧪
Printing Inks
inkjet and digital ink formulation to sub-micron
🚗
Ceramics
electronic ceramic and nano slurry research
🪓
Pharmaceuticals
nanosuspension development to 100-500 nm
🖨
Pigment Pastes
pigment dispersion fineness studies
🌾
Cosmetics
nano dispersion trials for sunscreen and pigments
Laboratory Pin Type Bead Mill at a Glance
Series Overview0.2 - 1 L
Chamber / capacity
1.1 - 4 kW
Motor power
sub-100 nm to 2 micron depending on media
Fineness
0.05 - 0.8 mm zirconia
Media / agitation
Key Design Features
Engineering⚙️
Laboratory-scale pin-type rotor matching production nano mill
Laboratory-scale pin-type rotor matching production nano mill geometry
⚙️
Small media capability down to 0.05 mm
Small media capability down to 0.05 mm for nano-scale development
⚙️
Ceramic-lined chamber option for contamination-controlled development
Ceramic-lined chamber option for contamination-controlled development
⚙️
Jacketed chamber with temperature control for heat-sensitive
Jacketed chamber with temperature control for heat-sensitive research
⚙️
Small chamber volume minimising material requirement for
Small chamber volume minimising material requirement for trials
⚙️
Quick-release access for cleaning between development samples
Quick-release access for cleaning between development samples
Applications by Industry
Selection| Industry | Typical Application |
|---|---|
| Battery Materials | nano grinding trials for electrode slurry development |
| Printing Inks | inkjet and digital ink formulation to sub-micron |
| Ceramics | electronic ceramic and nano slurry research |
| Pharmaceuticals | nanosuspension development to 100-500 nm |
| Pigment Pastes | pigment dispersion fineness studies |
| Cosmetics | nano dispersion trials for sunscreen and pigments |
| Agrochemicals | nano formulation research |
| Electronics | conductive additive dispersion studies |
| Custom Production | small-volume specialty dispersion service |
| Process Development | specific energy and tip speed optimisation |
Choosing the Right Laboratory Pin Type Bead Mill
How to Choose1
Choose by target fineness and sample volume: use the coarsest media that reaches specification
Choose by target fineness and sample volume: use the coarsest media that reaches specification, confirm the separator retains it, and set specific energy by trial rather than maximum speed.
2
Match geometry to your production mill so
Match geometry to your production mill so laboratory results transfer.
3
Typical use is formulation screening
Typical use is formulation screening, nano dispersion trials and small custom batches.
Related Technical Guides
Guides
ArticleInk Production Process Deep Dive: Parameters, Problems & Optimisation
GuideBead Mill Selection for Battery Materials
ArticleInk Production Line: From Pigment Grinding to Filling
Article5 Tips to Improve Bead Mill Grinding Efficiency
Need help specifying the Laboratory Pin Type Bead Mill for your process?
Request a QuotationSelection Parameters
Choose this bead mill when your target process falls within the following ranges. The final bead size and model are confirmed after reviewing your material and target fineness.
| Target fineness | sub-100 nm to 2 micron depending on media |
|---|---|
| Chamber volume | 0.2 - 1 L |
| Recommended media | 0.05 - 0.8 mm zirconia |
| Wetted parts | Stainless steel or ceramic-lined option |
| Cooling | Jacketed chamber |
Description
How it works
A laboratory pin-type bead mill for nano grinding research, formulation development and small-volume custom dispersion. It gives laboratory access to the same high-energy pin geometry used in production nano mills, so process parameters transfer directly. POLYC supplies these units for advanced mate Laboratory-scale pin-type rotor matching production nano mill geometry Small media capability down to 0.05 mm for nano-scale development Ceramic-lined chamber option for contamination-controlled development Typical applications include Battery Materials, Printing Inks, Ceramics, Pharmaceuticals. Choose by target fineness and sample volume: use the coarsest media that reaches specification, confirm the separator retains it, and set specific energy by trial rather than maximum speed.
INDUSTRIES THIS MACHINE SERVES
Industries we serve
MACHINE COMPARISON
Which configuration fits your process?
| Parameter | Laboratory Pin Type Bead Mill | BPF-H Lab Dispersing Machine | Laboratory basket mill | Laboratory High Shearing Emulsifier |
|---|---|---|---|---|
| Chamber / capacity | 0.2 - 1 L | 5 - 50 L | 1.5 - 2.5 L | 0.3 - 1 L |
| Motor power | 1.1 - 4 kW | 1.1 - 2.2 kW | 0.75 - 1.1 kW | 0.4 kW |
| Fineness | sub-100 nm to 2 micron depending on media | — | 5 - 20 micron depending on media | — |
| Media / agitation | 0.05 - 0.8 mm zirconia | — | 1.8 - 2.2 mm zirconia | — |
| Throughput | 100 - 5,000 L/h depending on product | — | — | — |
Read the full comparison guide: Bead Mill Selection for Battery Materials
Process Engineering
Working Principle
- 1
A laboratory pin-type bead mill pumps product through a small chamber filled with zirconia media agitated by a pin-type rotor.
- 2
Pins impart motion to the media, creating a velocity gradient so beads collide and shear against one another; particles caught in those contacts are broken by compression and shear across many small grinding events.
- 3
Because the chamber volume is small, the machine reaches nano-scale fineness on sample quantities while keeping specific energy and residence time controllable.
- 4
The same rotor geometry as production machines allows validated parameters to transfer on scale-up.
Equipment Benefits
Equipment Advantages
- ✓
Small chamber minimises product consumption during trials.
- ✓
Reproduces production bead-mill grinding in the lab.
- ✓
Fast changeover between formulations and media.
- ✓
Easy to operate and clean for R&D use.
Technical Data
Technical Specifications
| Parameter | Value |
|---|---|
| Chamber volume | 0.2 - 1 L |
| Motor power | 1.1 - 4 kW |
| Fineness range | sub-100 nm to 2 micron depending on media |
| Media size | 0.05 - 0.8 mm zirconia |
| Throughput | 100 - 5,000 L/h depending on product |
| Contact material | Stainless steel or ceramic-lined option |
| Cooling | Jacketed chamber |
PRODUCT INQUIRY
Get Price & Specs for This Product
Tell us your material and capacity, our engineer will reply within 24 hours.
Thank you! Our engineer will contact you within 24 hours.
Equipment Guidance
Frequently Asked Questions
What fineness can the Laboratory Pin Type Bead Mill reach?
Depending on media size, rotor geometry and the number of passes, the Laboratory Pin Type Bead Mill reaches sub-100 nm to 2 micron depending on media. The endpoint is confirmed on your own material in a trial run, so the configuration matches your formulation rather than a catalogue figure.
What grinding media does the Laboratory Pin Type Bead Mill use?
The mill runs with high-purity zirconia or ceramic media selected to the target fineness and the separator opening. Chamber and rotor options are chosen to suit the material; product-contact parts are Stainless steel or ceramic-lined option.
What capacity and power does the Laboratory Pin Type Bead Mill cover?
Capacity is 0.2 - 1 L, with motor power 1.1 - 4 kW. The model is selected from your batch volume, solids loading and required cycle time.
Which materials is the Laboratory Pin Type Bead Mill used for?
Typical duties cover Battery Materials, Printing Inks, Ceramics. POLYC reviews your material data before recommending a chamber, media size and pass count.
How do I select the right configuration?
Provide the material type, starting and target particle size, solids loading, batch volume and required throughput. POLYC returns a configuration with media recommendation and an expected pass count.
Industry Applications
Applications
Battery Materials
nano grinding trials for electrode slurry development
Printing Inks
inkjet and digital ink formulation to sub-micron
Ceramics
electronic ceramic and nano slurry research
Pharmaceuticals
nanosuspension development to 100-500 nm
Pigment Pastes
pigment dispersion fineness studies
Cosmetics
nano dispersion trials for sunscreen and pigments
Agrochemicals
nano formulation research
Electronics
conductive additive dispersion studies
Custom Production
small-volume specialty dispersion service
Process Development
specific energy and tip speed optimisation
