Reactors & Kettles
Mixing Kettle & Tinting Kettle: A mixing and tinting kettle is a jacketed agitation vessel used for blending base paint, adjusting colour and standardising viscosity before filling. Capacity range 100 - 20,000 L. Typical applications: Architectural Paints, Industrial Coatings, Printing Inks, Wood Coatings, Automotive Coatings.
A mixing and tinting kettle is a jacketed agitation vessel used for blending base paint, adjusting colour and standardising viscosity before filling.
A mixing and tinting kettle is a jacketed agitation vessel used for blending base paint, adjusting colour and standardising viscosity before filling.
Response within 24 hours · Engineering consultation · Application review available
Mixing Kettle & Tinting Kettle is applied across multiple industries. The configuration is matched to your material, fineness target and batch volume.
tinting and colour adjustment at 500-8000 L with ±1% dosing accuracy
letdown and viscosity adjustment to ≤50,000 cP before filling
varnish and ink adjustment at 200-3000 L
clear coat and lacquer blending at 300-4000 L
refinish colour matching to ΔE ≤0.5
topside coating blending at 500-6000 L
Gentle agitation suited to letdown and tinting without over-shearing
Accurate colourant and additive dosing provisions
Jacketed option for temperature-controlled adjustment
Slow-speed agitation preventing air incorporation
Sampling points for shade and viscosity verification
Bottom outlet configured for transfer to filling
| Industry | Typical Application |
|---|---|
| Architectural Paints | tinting and colour adjustment at 500-8000 L with ±1% dosing accuracy |
| Industrial Coatings | letdown and viscosity adjustment to ≤50,000 cP before filling |
| Printing Inks | varnish and ink adjustment at 200-3000 L |
| Wood Coatings | clear coat and lacquer blending at 300-4000 L |
| Automotive Coatings | refinish colour matching to ΔE ≤0.5 |
| Marine Coatings | topside coating blending at 500-6000 L |
| Corrosion Protection | primer standardisation at 300-5000 L |
| Plastic Coatings | coating thinning and homogenisation at 200-3000 L |
| Construction Chemicals | coating compound final blending at 500-6000 L |
| Adhesives & Sealants | additive incorporation at 200-4000 L without air entrainment |
Select vessel volume and agitator type from storage, let-down, tinting, or gentle-mixing duty.
Confirm viscosity, density, turnover time, heating or cooling needs, and discharge arrangement.
Specify product-contact material, surface finish, cover, controls, and hazardous-area requirements.
Need help specifying the Mixing Kettle & Tinting Kettle for your process?
Request a QuotationDescription
A mixing and tinting kettle is a jacketed agitation vessel used for blending base paint, adjusting colour and standardising viscosity before filling. It is the finishing stage in paint plants where shade and consistency are finalised. POLYC supplies these vessels with slow-speed agitation and accura Gentle agitation suited to letdown and tinting without over-shearing Accurate colourant and additive dosing provisions Jacketed option for temperature-controlled adjustment Typical applications include Architectural Paints, Industrial Coatings, Printing Inks, Wood Coatings. Select vessel volume and agitator type from storage, let-down, tinting, or gentle-mixing duty.
INDUSTRIES THIS MACHINE SERVES
MACHINE COMPARISON
| Parameter | Mixing Kettle & Tinting Kettle | Electrical Heating Reactor/Chemical Reactor | Emulsifying/homogenization kettle | Multi Function Dispersing Kettle |
|---|---|---|---|---|
| Chamber / capacity | 200 - 10,000 L | 100 - 10,000 L | 50 - 3,000 L | 100 - 5,000 L |
| Motor power | 2.2 - 45 kW | — | 3 - 45 kW depending on configuration | 4 - 75 kW |
| Media / agitation | Low-speed anchor, paddle or propeller | Anchor, paddle, turbine or dispersing depending on process | — | Interchangeable agitator set |
| Viscosity | low to medium viscosity coatings | — | — | up to approximately 100,000 cP depending on agitator |
| Contact material | Stainless steel 304 / 316L | Stainless steel 304 / 316L, optional special alloys | Stainless steel 316L with polished finish | Stainless steel 304 / 316L |
Process Engineering

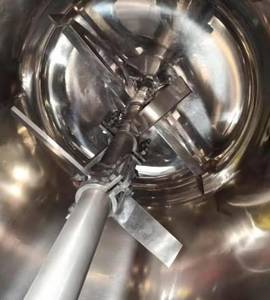

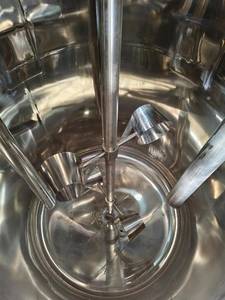

A paddle, propeller, or cup-type agitator circulates finished liquid through the vessel at controlled speed.
The low-shear flow maintains uniformity, supports tinting or let-down, and limits unnecessary air entrainment.
A jacket and controlled discharge can be integrated where temperature or transfer management is required.
Equipment Benefits
Gentle circulation limits unnecessary shear and air entrainment.
Multiple agitator styles suit storage, tinting, and let-down duties.
Jacket, cover, and discharge options integrate with the production line.
Simple construction supports inspection and cleaning.
Technical Data
| Parameter | Value |
|---|---|
| Working capacity | 200 - 10,000 L |
| Motor power | 2.2 - 45 kW |
| Agitation | Low-speed anchor, paddle or propeller |
| Viscosity range | low to medium viscosity coatings |
| Temperature control | Optional jacketed vessel |
| Contact material | Stainless steel 304 / 316L |
| Options | Load cells, colourant dosing, sampling valve |
PRODUCT INQUIRY
Tell us your material and capacity, our engineer will reply within 24 hours.
Equipment Guidance
The Mixing Kettle & Tinting Kettle is built for Architectural Paints, Industrial Coatings, Printing Inks. It is selected when the batch has to be blended homogeneously without the shear damage a disperser would cause.
It works up to low to medium viscosity coatings. Product-contact parts are Stainless steel 304 / 316L.
The agitator geometry keeps the whole batch moving rather than only the zone around the shaft, so colour, filler and additive distribution stay consistent from batch to batch.
Capacity is 200 - 10,000 L, with motor power 2. Vessel size is matched to the batch and the available floor space.
Bottom discharge, side discharge and hydraulic discharge arrangements are offered, with vacuum and jacket options where the formulation requires them.
Industry Applications
tinting and colour adjustment at 500-8000 L with ±1% dosing accuracy
letdown and viscosity adjustment to ≤50,000 cP before filling
varnish and ink adjustment at 200-3000 L
clear coat and lacquer blending at 300-4000 L
refinish colour matching to ΔE ≤0.5
topside coating blending at 500-6000 L
primer standardisation at 300-5000 L
coating thinning and homogenisation at 200-3000 L
coating compound final blending at 500-6000 L
additive incorporation at 200-4000 L without air entrainment
