Powder Mixers

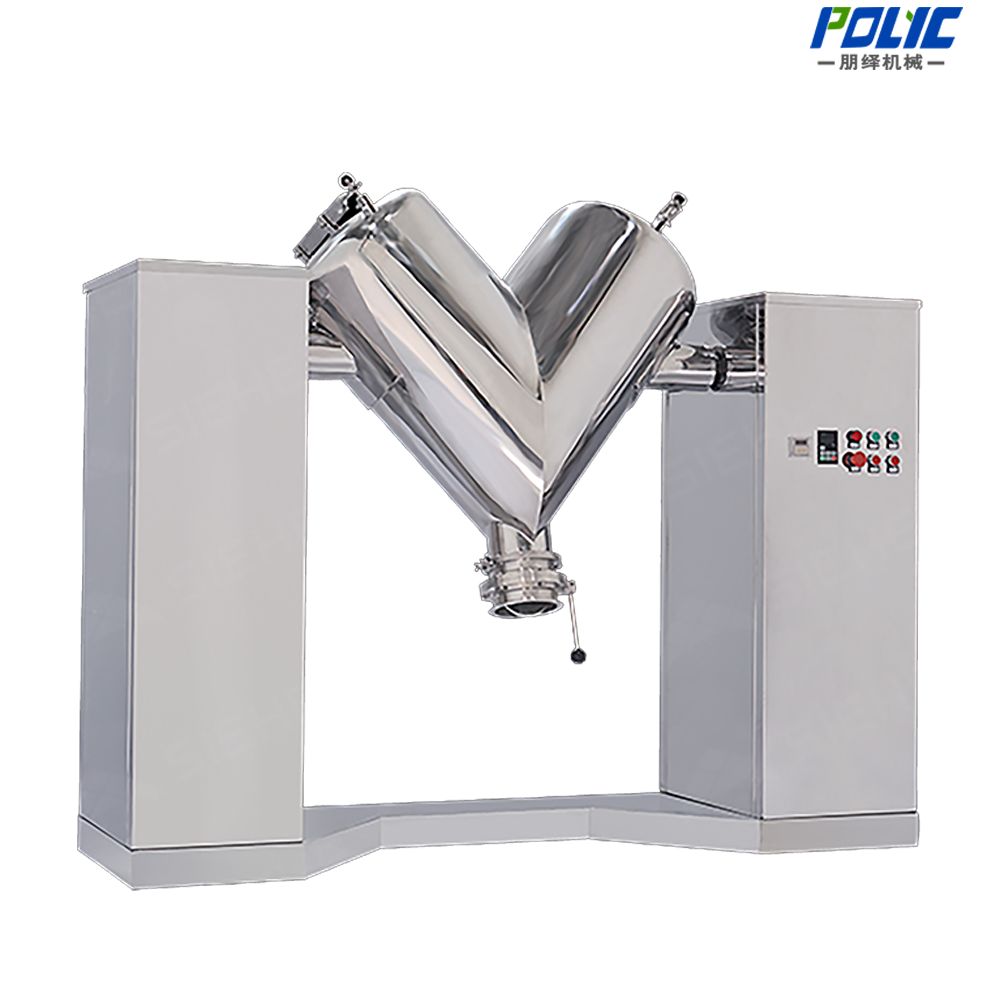

V-Shape Powder Mixer
V-Shape Powder Mixer: V-Shape Mixer for High-Purity Dry Powder Blending. Capacity range 5-2000L. Typical applications: Pharmaceuticals, Food, Cosmetics, Fine Chemicals, Ceramics.
V-Shape Mixer for High-Purity Dry Powder Blending
A V-shape powder mixer tumbles dry powder in a rotating V-shaped vessel, giving gentle, thorough blending ideal for fragile or abrasive materials.
Key Facts
- Equipment Type
- Powder Mixers
- Capacity / Batch Range
- 5-2000L
- Motor Power
- 1.1 - 15 kW
- Typical Applications
- Pharmaceuticals, Food, Cosmetics, Fine Chemicals
Request a Quote
Response within 24 hours · Engineering consultation · Application review available
Where the V-Shape Powder Mixer Performs Best
Industry ApplicationsV-Shape Powder Mixer is applied across multiple industries. The configuration is matched to your material, fineness target and batch volume.
🎨
Pharmaceuticals
powder blending at 50-3000 L in 10-20 min cycles
🧪
Food
ingredient and seasoning blending at 100-2000 L
🚗
Cosmetics
powder and pigment blending at 50-1000 L
🪓
Fine Chemicals
powder homogenisation in 15-25 min cycles
🖨
Ceramics
technical ceramic powder blending at 100-1500 L
🌾
Agrochemicals
powder formulation blending at 200-3000 L
V-Shape Powder Mixer at a Glance
Series Overview50 - 3,000 L
Chamber / capacity
1.1 - 15 kW
Motor power
Stainless steel 304 / 316L
Contact material
50 - 3,000 L
Working capacity
Key Design Features
Engineering⚙️
Gentle tumbling action preserving particle integrity
Gentle tumbling action preserving particle integrity
⚙️
V-shaped vessel promoting efficient interchange of material
V-shaped vessel promoting efficient interchange of material
⚙️
Simple construction with easy cleaning and full
Simple construction with easy cleaning and full discharge
⚙️
Optional intensifier bar for liquid addition or
Optional intensifier bar for liquid addition or deagglomeration
⚙️
Suitable for abrasive and fragile powders alike
Suitable for abrasive and fragile powders alike
⚙️
Low shear making it ideal for sensitive
Low shear making it ideal for sensitive blends
Applications by Industry
Selection| Industry | Typical Application |
|---|---|
| Pharmaceuticals | powder blending at 50-3000 L in 10-20 min cycles |
| Food | ingredient and seasoning blending at 100-2000 L |
| Cosmetics | powder and pigment blending at 50-1000 L |
| Fine Chemicals | powder homogenisation in 15-25 min cycles |
| Ceramics | technical ceramic powder blending at 100-1500 L |
| Agrochemicals | powder formulation blending at 200-3000 L |
| Nutraceuticals | supplement powder blending with CV ≤5% |
| Plastics | additive and pigment powder blending at 100-2000 L |
| Food | dry blend preparation at 20-40% working fill |
| Laboratory & Pilot | small-batch blending at 10-200 L with intensifier option |
Choosing the Right V-Shape Powder Mixer
How to Choose1
Select by batch volume and powder flow
Select by batch volume and powder flow behaviour.
2
Keep fill within the effective working range
Keep fill within the effective working range, since over-filling restricts interchange and lengthens cycle time.
3
Use an intensifier bar for liquid addition
Use an intensifier bar for liquid addition, and choose a plough shear mixer for cohesive powders that tumbling cannot fully homogenise.
Related Technical Guides
Guides
GuideTop Chinese Powder Mixer Blender Manufacturers 2026 Guide
GuidePowder Mixer Selection: Ribbon, Paddle, or Planetary?
GuideTop Chinese Vacuum Emulsifying Mixer Manufacturers 2026 Guide
GuideHigh Viscosity Mixer Specs and Selection Guide
Need help specifying the V-Shape Powder Mixer for your process?
Request a QuotationDescription
How it works
A V-shape powder mixer tumbles dry powder in a rotating V-shaped vessel, giving gentle, thorough blending ideal for fragile or abrasive materials. It is widely used for pharmaceutical, food, chemical and cosmetic powders. POLYC supplies V-blenders with optional intensifier bars for liquid addition. Gentle tumbling action preserving particle integrity V-shaped vessel promoting efficient interchange of material Simple construction with easy cleaning and full discharge Typical applications include Pharmaceuticals, Food, Cosmetics, Fine Chemicals. Select by batch volume and powder flow behaviour.
MACHINE COMPARISON
Which configuration fits your process?
| Parameter | V-Shape Powder Mixer | Ribbon Mixer | Double Cone Drum Mixer | Horizontal Non-Gravity Mixer |
|---|---|---|---|---|
| Chamber / capacity | 50 - 3,000 L | 500 - 15,000 L | 50 - 4,000 L | 300 - 8,000 L |
| Motor power | 1.1 - 15 kW | 5.5 - 75 kW | 1.1 - 22 kW | 11 - 110 kW |
| Contact material | Stainless steel 304 / 316L | Carbon steel, stainless steel 304 / 316L | Stainless steel 304 / 316L | Carbon steel or stainless steel with wear options |
| Batch type | Dry powder and granule | Dry powder, granule or paste | Dry powder and granule | Dry powder and granule |
| Mixing time | typically 5 - 20 minutes depending on product | typically 5 - 20 minutes depending on product | typically 8 - 25 minutes depending on product | typically 1 - 5 minutes depending on product |
Read the full comparison guide: Top Chinese Powder Mixer Blender Manufacturers 2026 Guide
Process Engineering
Working Principle
- 1
The V-shaped vessel rotates so that powder is repeatedly split and recombined as it moves between the two arms, producing convective and diffusive blending.
- 2
Because there is no high-speed agitator, fragile granules and abrasive powders are blended without particle damage or significant heat generation.
- 3
Tumbling action suits free-flowing to moderately cohesive powders; an optional intensifier bar adds controlled shear for liquid addition or to break soft agglomerates.
Equipment Benefits
Equipment Advantages
- ✓
High mixing efficiency with short mixing cycles (5-15 minutes)
- ✓
No dead corners ensures complete discharge and easy cleaning
- ✓
Gentle mixing preserves particle integrity and material properties
- ✓
Low energy consumption compared to other mixer types
- ✓
Suitable for high-purity and sanitary applications
- ✓
Compact design requires minimal floor space
Technical Data
Technical Specifications
| Parameter | Value |
|---|---|
| Working capacity | 50 - 3,000 L |
| Motor power | 1.1 - 15 kW |
| Batch type | Dry powder and granule |
| Mixing time | typically 5 - 20 minutes depending on product |
| Rotation speed | fixed or variable depending on model |
| Contact material | Stainless steel 304 / 316L |
| Options | Intensifier bar, liquid spray, vacuum |
PRODUCT INQUIRY
Get Price & Specs for This Product
Tell us your material and capacity, our engineer will reply within 24 hours.
Thank you! Our engineer will contact you within 24 hours.
Equipment Guidance
Frequently Asked Questions
What mixing duties is the V-Shape Powder Mixer designed for?
The V-Shape Powder Mixer is built for Pharmaceuticals, Food, Cosmetics. It is selected when the batch has to be blended homogeneously without the shear damage a disperser would cause.
What viscosity range can it handle?
The working viscosity range follows the agitator geometry and drive torque. Product-contact parts are Stainless steel 304 / 316L.
How is mixing uniformity achieved?
The agitator geometry keeps the whole batch moving rather than only the zone around the shaft, so colour, filler and additive distribution stay consistent from batch to batch.
What capacity range is available?
Capacity is 50 - 3,000 L, with motor power 1. Vessel size is matched to the batch and the available floor space.
What discharge and cleaning options are available?
Bottom discharge, side discharge and hydraulic discharge arrangements are offered, with vacuum and jacket options where the formulation requires them.
Industry Applications
Applications
Pharmaceuticals
powder blending at 50-3000 L in 10-20 min cycles
Food
ingredient and seasoning blending at 100-2000 L
Cosmetics
powder and pigment blending at 50-1000 L
Fine Chemicals
powder homogenisation in 15-25 min cycles
Ceramics
technical ceramic powder blending at 100-1500 L
Agrochemicals
powder formulation blending at 200-3000 L
Nutraceuticals
supplement powder blending with CV ≤5%
Plastics
additive and pigment powder blending at 100-2000 L
Food
dry blend preparation at 20-40% working fill
Laboratory & Pilot
small-batch blending at 10-200 L with intensifier option
WHY POLYC MACHINE
Built on Engineering Excellence Since 2006
Every machine is designed by our in-house R&D team, built in our own factory, and supported by the same team that has delivered over 8,000 systems worldwide.
ISO 9001 & CE Certified
Manufactured under an ISO 9001 quality management system. All machines comply with CE directives, with EC Declaration of Conformity for every order.
Experience Since 2006
Since 2006, POLYC has engineered wet grinding, dispersing and mixing systems for global manufacturers.
3-Year Warranty
Every machine carries a 3-year warranty with ongoing spare-parts supply and technical support after delivery.
30-Day Delivery
Standard models ship within 30 days of order confirmation. Custom-engineered lines are scheduled against your project timeline.
Free Installation Guidance
Free installation guidance and operator training are included with every machine, covering commissioning and safe start-up.
Custom Engineering
From lab-scale 0.5L to 12,000L production systems. Material testing, configuration and process design included.
24-Hour Response
Engineering consultation within 24 hours. Application review, technical specs and quotation delivered fast.
Global Shipping
Export-ready packaging with full documentation. DDP/FOB/CIF terms available for 80+ countries.
Lifetime Technical Support
Genuine spare parts, remote diagnostics and lifetime technical support for every machine we build.
