Powder Mixers
Double Cone Drum Mixer
Double Cone Drum Mixer: Double Cone Mixer for Dry & Wet Powder Blending. Capacity range 100-5000L. Typical applications: Pharmaceuticals, Food, Fine Chemicals, Cosmetics, Nutraceuticals.

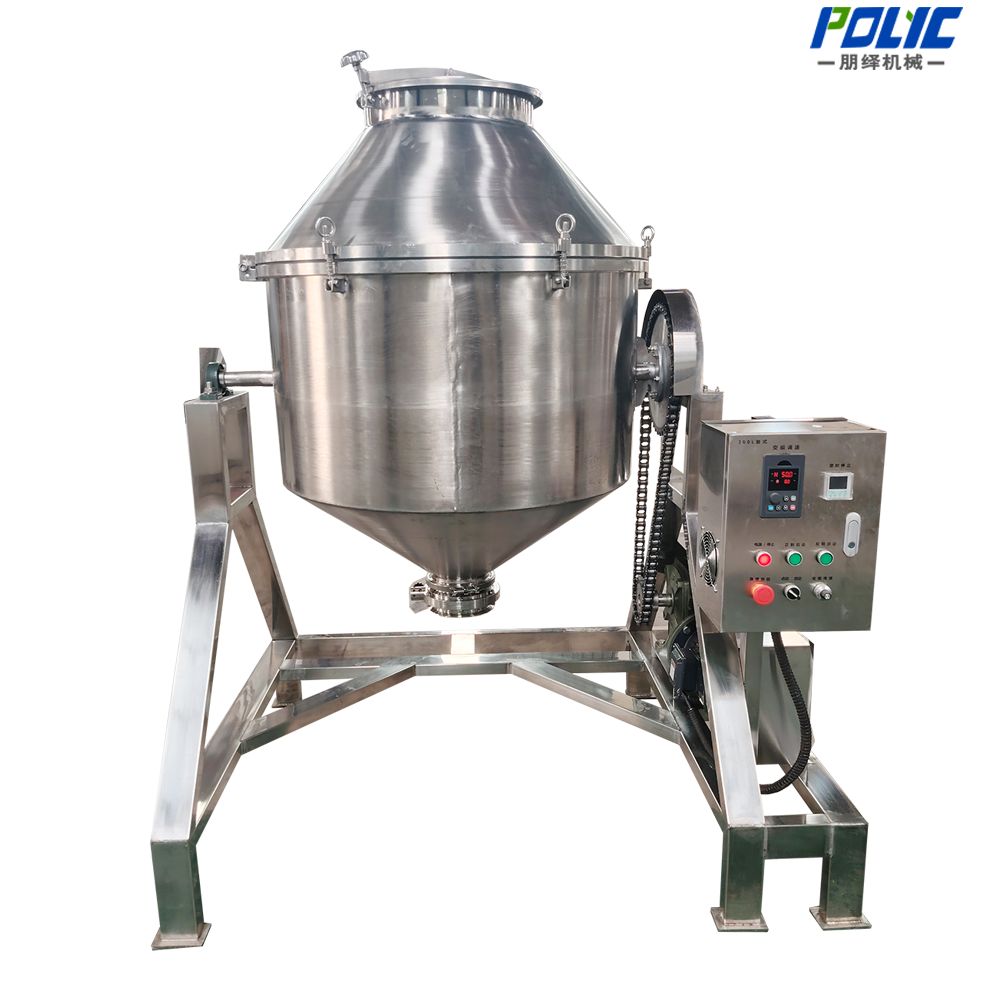

Double Cone Mixer for Dry & Wet Powder Blending
A double-cone drum mixer tumbles powder in a rotating conical vessel, providing gentle homogeneous blending with complete discharge.
Key Facts
- Equipment Type
- Powder Mixers
- Capacity / Batch Range
- 100-5000L
- Motor Power
- 1.1 - 22 kW
- Typical Applications
- Pharmaceuticals, Food, Fine Chemicals, Cosmetics
Request a Quote
Response within 24 hours · Engineering consultation · Application review available
Where the Double Cone Drum Mixer Performs Best
Industry ApplicationsDouble Cone Drum Mixer is applied across multiple industries. The configuration is matched to your material, fineness target and batch volume.
🎨
Pharmaceuticals
powder blending at 50-4000 L in 12-20 min cycles
🧪
Food
ingredient and additive blending at 100-3000 L
🚗
Fine Chemicals
powder blending with vacuum drying at 50-3000 L
🪓
Cosmetics
powder and pigment blending at 50-1500 L
🖨
Nutraceuticals
supplement blending with ≥99% homogeneity
🌾
Ceramics
fine ceramic powder blending at 100-2000 L
Double Cone Drum Mixer at a Glance
Series Overview50 - 4,000 L
Chamber / capacity
1.1 - 22 kW
Motor power
Stainless steel 304 / 316L
Contact material
50 - 4,000 L
Working capacity
Key Design Features
Engineering⚙️
Double-cone vessel giving gentle and uniform tumbling
Double-cone vessel giving gentle and uniform tumbling
⚙️
Complete discharge with minimal residue
Complete discharge with minimal residue
⚙️
Low shear preserving particle size and shape
Low shear preserving particle size and shape
⚙️
Smooth internal surfaces simplifying cleaning
Smooth internal surfaces simplifying cleaning
⚙️
Optional intensifier for liquid addition
Optional intensifier for liquid addition
⚙️
Available with documentation packages for regulated industries
Available with documentation packages for regulated industries
Applications by Industry
Selection| Industry | Typical Application |
|---|---|
| Pharmaceuticals | powder blending at 50-4000 L in 12-20 min cycles |
| Food | ingredient and additive blending at 100-3000 L |
| Fine Chemicals | powder blending with vacuum drying at 50-3000 L |
| Cosmetics | powder and pigment blending at 50-1500 L |
| Nutraceuticals | supplement blending with ≥99% homogeneity |
| Ceramics | fine ceramic powder blending at 100-2000 L |
| Agrochemicals | powder formulation blending at 200-4000 L |
| Plastics | masterbatch and additive blending at 100-2500 L |
| Food | dry mix blending with ≤0.5% residue at discharge |
| Pharmaceuticals | wet powder drying at 60-120 °C under vacuum |
Choosing the Right Double Cone Drum Mixer
How to Choose1
Choose by batch volume and whether drying is required
Choose by batch volume and whether drying is required, since vacuum drying changes the vessel specification.
2
Confirm surface finish and access provisions for regulated industries
Confirm surface finish and access provisions for regulated industries, and match discharge arrangements to downstream packaging to avoid segregation.
3
Confirm with POLYC
Confirm contact materials and documentation (CE) with your order specifications.
Related Technical Guides
Guides
GuideTop Chinese Powder Mixer Blender Manufacturers 2026 Guide
GuidePowder Mixer Selection: Ribbon, Paddle, or Planetary?
ComparisonPlanetary Mixer vs Ribbon Blender Guide
GuideV Blender Selection & Sizing Guide: Capacity, Speed & Design
Need help specifying the Double Cone Drum Mixer for your process?
Request a QuotationDescription
How it works
A double-cone drum mixer tumbles powder in a rotating conical vessel, providing gentle homogeneous blending with complete discharge. It is suited to pharmaceutical, food, chemical and fine powder applications where particle damage must be avoided. POLYC supplies double-cone mixers with polishing and Double-cone vessel giving gentle and uniform tumbling Complete discharge with minimal residue Low shear preserving particle size and shape Typical applications include Pharmaceuticals, Food, Fine Chemicals, Cosmetics. Choose by batch volume and whether drying is required, since vacuum drying changes the vessel specification.
MACHINE COMPARISON
Which configuration fits your process?
| Parameter | Double Cone Drum Mixer | Ribbon Mixer | V-Shape Powder Mixer | Horizontal Non-Gravity Mixer |
|---|---|---|---|---|
| Chamber / capacity | 50 - 4,000 L | 500 - 15,000 L | 50 - 3,000 L | 300 - 8,000 L |
| Motor power | 1.1 - 22 kW | 5.5 - 75 kW | 1.1 - 15 kW | 11 - 110 kW |
| Contact material | Stainless steel 304 / 316L | Carbon steel, stainless steel 304 / 316L | Stainless steel 304 / 316L | Carbon steel or stainless steel with wear options |
| Batch type | Dry powder and granule | Dry powder, granule or paste | Dry powder and granule | Dry powder and granule |
| Mixing time | typically 8 - 25 minutes depending on product | typically 5 - 20 minutes depending on product | typically 5 - 20 minutes depending on product | typically 1 - 5 minutes depending on product |
Read the full comparison guide: Top Chinese Powder Mixer Blender Manufacturers 2026 Guide
Process Engineering
Working Principle
- 1
The double-cone vessel rotates so powder cascades and recombines continuously, producing gentle convective blending.
- 2
The conical geometry promotes complete discharge through the bottom outlet with minimal residue.
- 3
Because there is no high-speed agitator, particle size and shape are preserved and little heat is generated.
- 4
Where fitted, a jacketed vessel and vacuum connection allow drying in the same vessel.
Equipment Benefits
Equipment Advantages
- ✓
Efficient mixing with short cycle times
- ✓
Gentle mixing preserves particle morphology
- ✓
Low energy consumption
- ✓
Easy to operate and maintain
- ✓
Complete discharge minimizes product loss
- ✓
Versatile for wide range of powder types
Technical Data
Technical Specifications
| Parameter | Value |
|---|---|
| Working capacity | 50 - 4,000 L |
| Motor power | 1.1 - 22 kW |
| Batch type | Dry powder and granule |
| Mixing time | typically 8 - 25 minutes depending on product |
| Surface finish | polished options for regulated applications |
| Contact material | Stainless steel 304 / 316L |
| Options | Intensifier bar, vacuum drying, liquid spray |
PRODUCT INQUIRY
Get Price & Specs for This Product
Tell us your material and capacity, our engineer will reply within 24 hours.
Thank you! Our engineer will contact you within 24 hours.
Equipment Guidance
Frequently Asked Questions
What mixing duties is the Double Cone Drum Mixer designed for?
The Double Cone Drum Mixer is built for Pharmaceuticals, Food, Fine Chemicals. It is selected when the batch has to be blended homogeneously without the shear damage a disperser would cause.
What viscosity range can it handle?
The working viscosity range follows the agitator geometry and drive torque. Product-contact parts are Stainless steel 304 / 316L.
How is mixing uniformity achieved?
The agitator geometry keeps the whole batch moving rather than only the zone around the shaft, so colour, filler and additive distribution stay consistent from batch to batch.
What capacity range is available?
Capacity is 50 - 4,000 L, with motor power 1. Vessel size is matched to the batch and the available floor space.
What discharge and cleaning options are available?
Bottom discharge, side discharge and hydraulic discharge arrangements are offered, with vacuum and jacket options where the formulation requires them.
Industry Applications
Applications
Pharmaceuticals
powder blending at 50-4000 L in 12-20 min cycles
Food
ingredient and additive blending at 100-3000 L
Fine Chemicals
powder blending with vacuum drying at 50-3000 L
Cosmetics
powder and pigment blending at 50-1500 L
Nutraceuticals
supplement blending with ≥99% homogeneity
Ceramics
fine ceramic powder blending at 100-2000 L
Agrochemicals
powder formulation blending at 200-4000 L
Plastics
masterbatch and additive blending at 100-2500 L
Food
dry mix blending with ≤0.5% residue at discharge
Pharmaceuticals
wet powder drying at 60-120 °C under vacuum
