Ribbon Mixer
Horizontal Ribbon Mixer for Uniform Dry Powder Blending. Capacity range 100 - 12,000 L. Typical applications: Construction Chemicals, Food, Pharmaceuticals, Cosmetics, Agrochemicals.

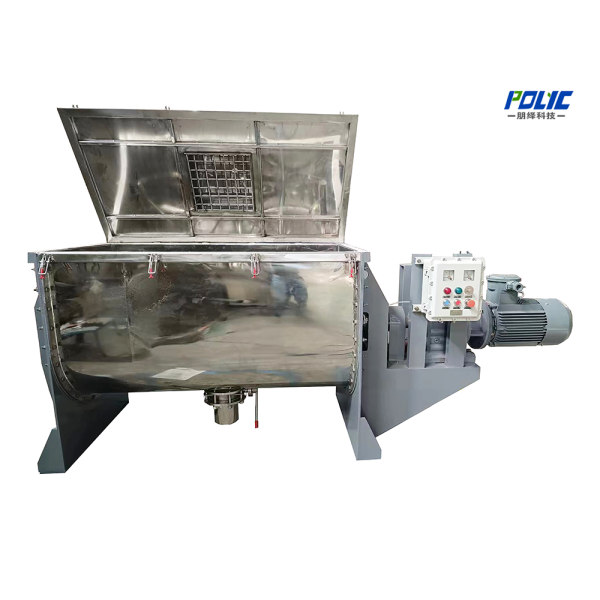

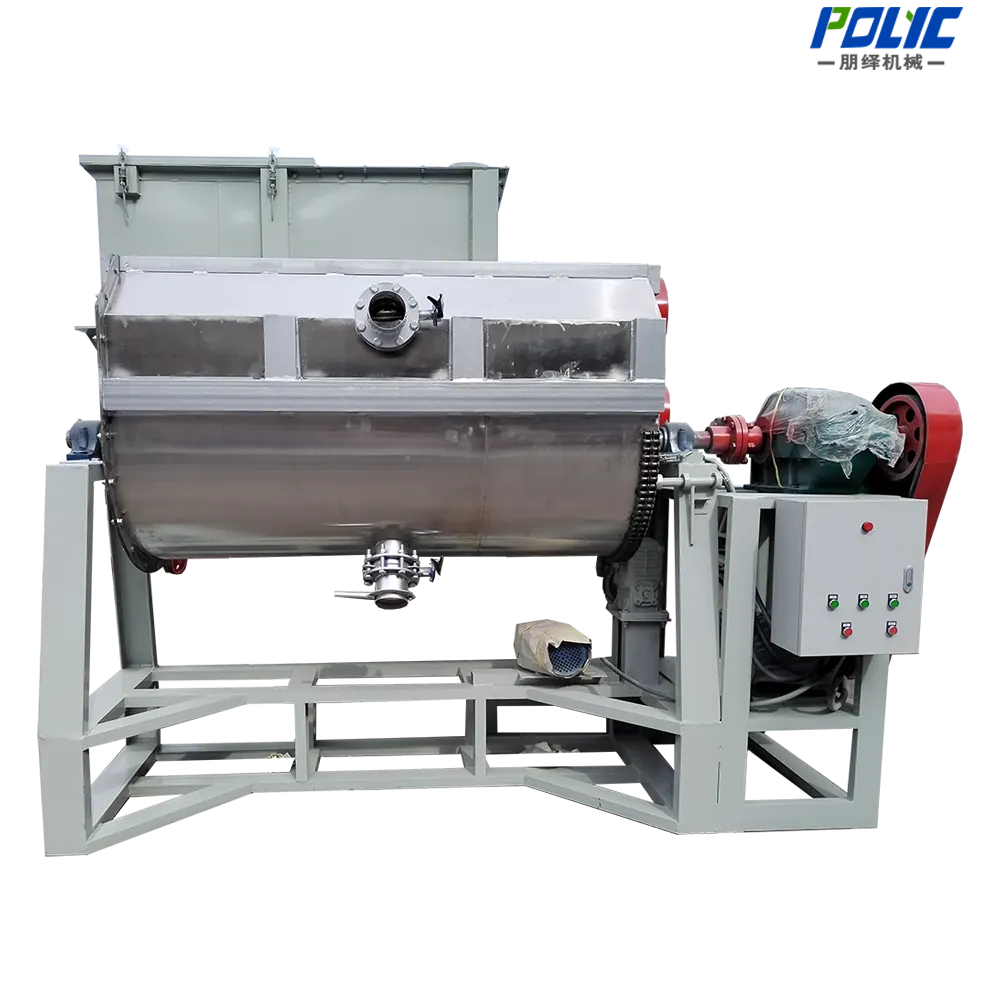

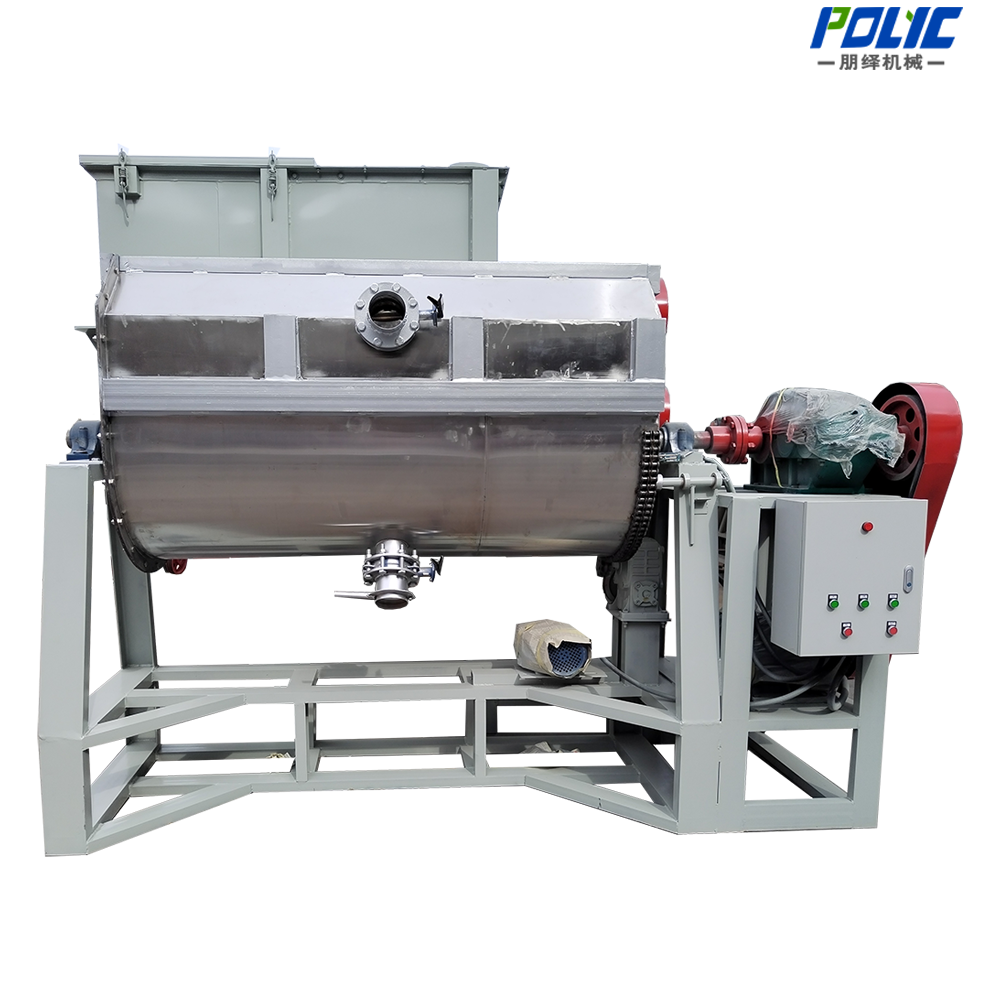

Horizontal Ribbon Mixer for Uniform Dry Powder Blending
A ribbon mixer uses a helical ribbon agitator to blend dry powders, granules and pastes with gentle but thorough convective mixing.
Key Facts
- Equipment Type
- Powder Mixers
- Capacity / Batch Range
- 100 - 12,000 L
- Motor Power
- 3 - 75 kW
- Typical Applications
- Construction Chemicals, Food, Pharmaceuticals, Cosmetics
Request a Quote
Response within 24 hours · Engineering consultation · Application review available
Where the Ribbon Mixer Performs Best
Industry ApplicationsRibbon Mixer is applied across multiple industries. The configuration is matched to your material, fineness target and batch volume.
🎨
Construction Chemicals
dry mortar and plaster blending at 500-6000 L batches in 8-15 min cycles
🧪
Construction Chemicals
tile adhesive and grout blending with ≤1% active ingredient variance
🚗
Food
seasoning and ingredient blending at 200-4000 L batches
🪓
Pharmaceuticals
powder formulation blending with ≥99% blend homogeneity
🖨
Cosmetics
powder and pigment blending at 50-1500 L
🌾
Agrochemicals
wettable powder blending at 500-8000 L batches
Ribbon Mixer at a Glance
Series Overview100 - 10,000 L
Chamber / capacity
3 - 75 kW
Motor power
Carbon steel, stainless steel 304 / 316L
Contact material
100 - 10,000 L
Working capacity
Key Design Features
Engineering⚙️

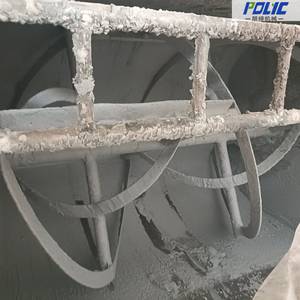

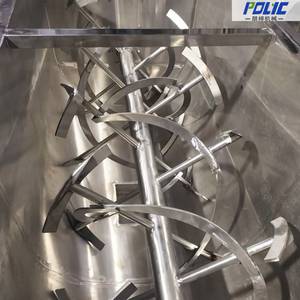

Helical ribbon agitator giving thorough convective blending
Helical ribbon agitator giving thorough convective blending
⚙️
Gentle action preserving particle integrity of fragile
Gentle action preserving particle integrity of fragile granules
⚙️
Suitable for dry powders
Suitable for dry powders, granules and some pastes
⚙️
Jacketed option for heating or cooling during
Jacketed option for heating or cooling during blending
⚙️
Liquid addition spray option for coating powders
Liquid addition spray option for coating powders
⚙️
Large discharge outlet for fast emptying
Large discharge outlet for fast emptying
Applications by Industry
Selection| Industry | Typical Application |
|---|---|
| Construction Chemicals | dry mortar and plaster blending at 500-6000 L batches in 8-15 min cycles |
| Construction Chemicals | tile adhesive and grout blending with ≤1% active ingredient variance |
| Food | seasoning and ingredient blending at 200-4000 L batches |
| Pharmaceuticals | powder formulation blending with ≥99% blend homogeneity |
| Cosmetics | powder and pigment blending at 50-1500 L |
| Agrochemicals | wettable powder blending at 500-8000 L batches |
| Ceramics | ceramic body powder blending at 300-5000 L |
| Chemicals | detergent powder production at 1000-10000 L batches |
| Food | flour and spice blending in 10-20 min cycle times |
| Feed & Nutrition | premix blending at 500-6000 L with CV ≤5% |
Choosing the Right Ribbon Mixer
How to Choose1
Select usable volume from batch mass
Select usable volume from batch mass, bulk density, fill ratio, and required mixing uniformity.
2
Confirm powder flowability
Confirm powder flowability, ingredient ratio, liquid-addition rate, discharge method, and cleaning standard.
3
Choose carbon steel or stainless product-contact construction
Choose carbon steel or stainless product-contact construction according to corrosion and hygiene requirements.
Related Technical Guides
Guides
GuidePowder Mixer Selection: Ribbon, Paddle, or Planetary?
GuideTop Chinese Powder Mixer Blender Manufacturers 2026 Guide
ComparisonPlanetary Mixer vs Ribbon Blender Guide
GuideV Blender Selection & Sizing Guide: Capacity, Speed & Design
Need help specifying the Ribbon Mixer for your process?
Request a QuotationDescription
How it works
A ribbon mixer uses a helical ribbon agitator to blend dry powders, granules and pastes with gentle but thorough convective mixing. It is the standard machine for dry mortar, plaster blends, food ingredients and fertiliser powders. POLYC supplies ribbon mixers with jacketed and vacuum options. Helical ribbon agitator giving thorough convective blending Gentle action preserving particle integrity of fragile granules Suitable for dry powders, granules and some pastes Typical applications include Construction Chemicals, Construction Chemicals, Food, Pharmaceuticals. Select usable volume from batch mass, bulk density, fill ratio, and required mixing uniformity.
MACHINE COMPARISON
Which configuration fits your process?
| Parameter | Ribbon Mixer | V-Shape Powder Mixer | Double Cone Drum Mixer | Horizontal Non-Gravity Mixer |
|---|---|---|---|---|
| Chamber / capacity | 100 - 10,000 L | 50 - 3,000 L | 50 - 4,000 L | 300 - 8,000 L |
| Motor power | 3 - 75 kW | 1.1 - 15 kW | 1.1 - 22 kW | 11 - 110 kW |
| Contact material | Carbon steel, stainless steel 304 / 316L | Stainless steel 304 / 316L | Stainless steel 304 / 316L | Carbon steel or stainless steel with wear options |
| Batch type | Dry powder, granule or paste | Dry powder and granule | Dry powder and granule | Dry powder and granule |
| Mixing time | typically 5 - 20 minutes depending on product | typically 5 - 20 minutes depending on product | typically 8 - 25 minutes depending on product | typically 1 - 5 minutes depending on product |
Read the full comparison guide: Powder Mixer Selection: Ribbon, Paddle, or Planetary?
Process Engineering
Working Principle
- 1

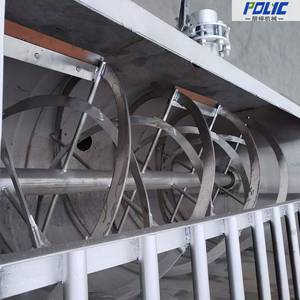

Outer ribbons move powder toward the center while inner ribbons move it toward the ends.
- 2
The opposing axial flows combine with radial movement to create convective mixing through the U-shaped trough.
- 3
After the specified mixing time, the blended batch discharges through the bottom outlet.
Equipment Benefits
Equipment Advantages
- ✓
Opposing ribbon flows provide fast convective powder mixing.
- ✓
Suitable for powders, cohesive blends, and controlled liquid addition.
- ✓
Full-opening cover improves access for cleaning and inspection.
- ✓
Discharge and construction can be customized to the plant process.
Technical Data
Technical Specifications
| Parameter | Value |
|---|---|
| Working capacity | 100 - 10,000 L |
| Motor power | 3 - 75 kW |
| Batch type | Dry powder, granule or paste |
| Mixing time | typically 5 - 20 minutes depending on product |
| Contact material | Carbon steel, stainless steel 304 / 316L |
| Options | Jacketed, vacuum, liquid spray, chopper |
| Discharge | Bottom outlet with pneumatic or manual valve |
PRODUCT INQUIRY
Get Price & Specs for This Product
Tell us your material and capacity, our engineer will reply within 24 hours.
Thank you! Our engineer will contact you within 24 hours.
Equipment Guidance
Frequently Asked Questions
What mixing duties is the Ribbon Mixer designed for?
The Ribbon Mixer is built for Construction Chemicals, Food. It is selected when the batch has to be blended homogeneously without the shear damage a disperser would cause.
What viscosity range can it handle?
The working viscosity range follows the agitator geometry and drive torque. Product-contact parts are Carbon steel, stainless steel 304 / 316L.
How is mixing uniformity achieved?
The agitator geometry keeps the whole batch moving rather than only the zone around the shaft, so colour, filler and additive distribution stay consistent from batch to batch.
What capacity range is available?
Capacity is 100 - 10,000 L, with motor power 3 - 75 kW. Vessel size is matched to the batch and the available floor space.
What discharge and cleaning options are available?
Bottom discharge, side discharge and hydraulic discharge arrangements are offered, with vacuum and jacket options where the formulation requires them.
Industry Applications
Applications
Construction Chemicals
dry mortar and plaster blending at 500-6000 L batches in 8-15 min cycles
Construction Chemicals
tile adhesive and grout blending with ≤1% active ingredient variance
Food
seasoning and ingredient blending at 200-4000 L batches
Pharmaceuticals
powder formulation blending with ≥99% blend homogeneity
Cosmetics
powder and pigment blending at 50-1500 L
Agrochemicals
wettable powder blending at 500-8000 L batches
Ceramics
ceramic body powder blending at 300-5000 L
Chemicals
detergent powder production at 1000-10000 L batches
Food
flour and spice blending in 10-20 min cycle times
Feed & Nutrition
premix blending at 500-6000 L with CV ≤5%
WHY POLYC MACHINE
Built on 25 Years of Engineering Excellence
Every machine is designed by our in-house R&D team, built in our own factory, and supported by the same team that has delivered over 8,000 systems worldwide.
ISO 9001 & CE Certified
Manufactured under an ISO 9001 quality management system. All machines comply with CE directives, with EC Declaration of Conformity for every order.
25 Years Experience
Since 2001, POLYC has engineered wet grinding, dispersing and mixing systems for global manufacturers.
3-Year Warranty
Every machine carries a 3-year warranty with ongoing spare-parts supply and technical support after delivery.
30-Day Delivery
Standard models ship within 30 days of order confirmation. Custom-engineered lines are scheduled against your project timeline.
Free Installation Guidance
Free installation guidance and operator training are included with every machine, covering commissioning and safe start-up.
Custom Engineering
From lab-scale 0.5L to 12,000L production systems. Material testing, configuration and process design included.
24-Hour Response
Engineering consultation within 24 hours. Application review, technical specs and quotation delivered fast.
Global Shipping
Export-ready packaging with full documentation. DDP/FOB/CIF terms available for 80+ countries.
Lifetime Technical Support
Genuine spare parts, remote diagnostics and lifetime technical support for every machine we build.
