Powder Mixers
Horizontal Non-Gravity Mixer
Horizontal Non-Gravity Mixer: Non-Gravity Mixer for High-Speed Dry Mortar & Powder Blending. Capacity range 100-30000L. Typical applications: Construction Chemicals, Ceramics, Chemicals, Food, Agrochemicals.

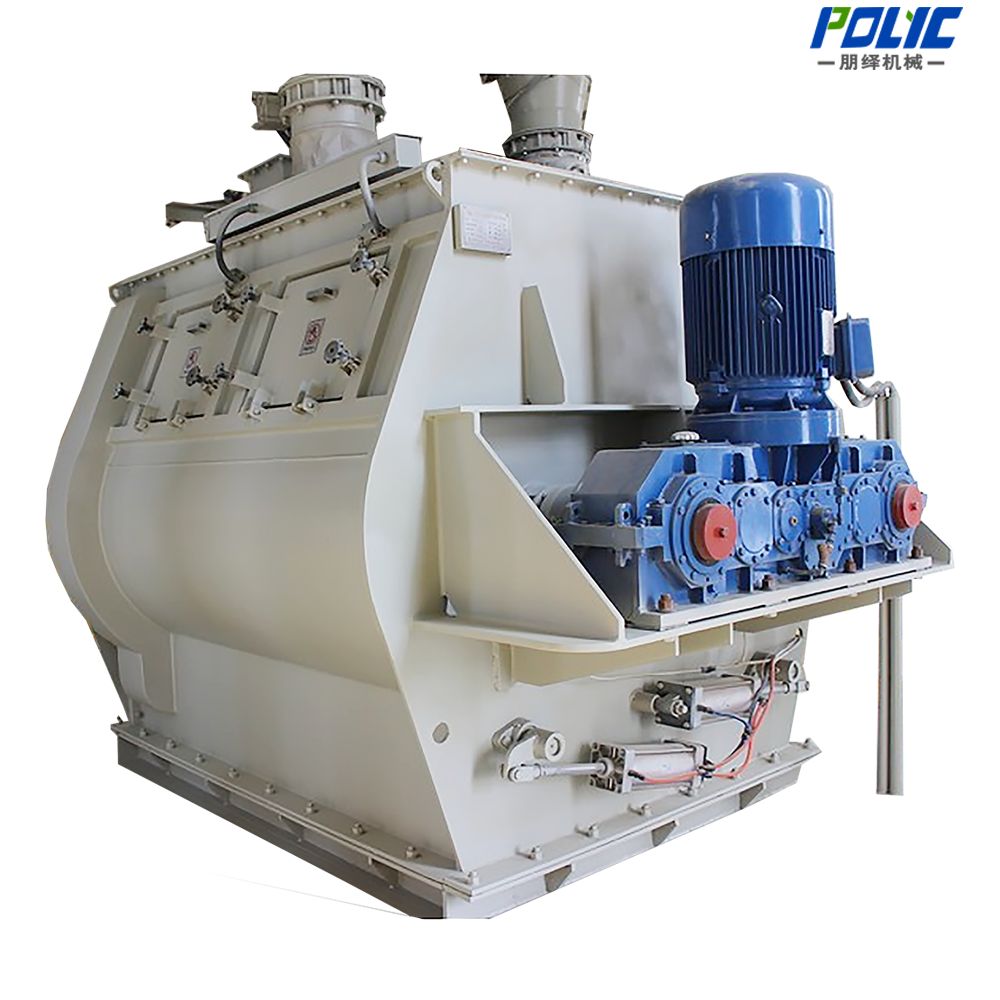

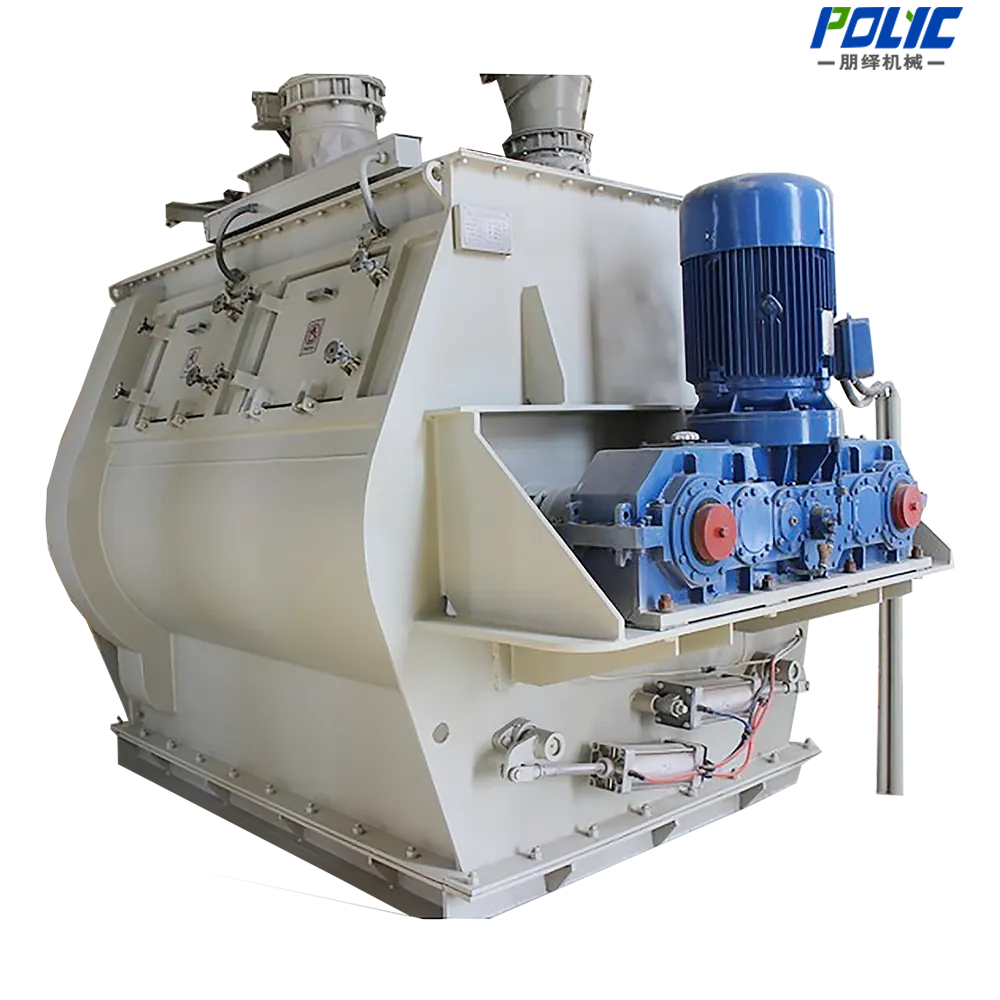

Non-Gravity Mixer for High-Speed Dry Mortar & Powder Blending
A horizontal non-gravity mixer uses counter-rotating agitators to create a weightless mixing zone where particles move freely in all directions, giving very fast and uniform blending.
Key Facts
- Equipment Type
- Powder Mixers
- Capacity / Batch Range
- 100-30000L
- Motor Power
- 11 - 110 kW
- Typical Applications
- Construction Chemicals, Ceramics, Chemicals, Food
Request a Quote
Response within 24 hours · Engineering consultation · Application review available
Where the Horizontal Non-Gravity Mixer Performs Best
Industry ApplicationsHorizontal Non-Gravity Mixer is applied across multiple industries. The configuration is matched to your material, fineness target and batch volume.
🎨
Construction Chemicals
dry mortar and plaster blending at 300-6000 L in 1-5 min cycles
🧪
Construction Chemicals
tile adhesive and grout blending with ≥99% homogeneity
🚗
Ceramics
ceramic body and glaze powder blending at 300-5000 L
🪓
Chemicals
detergent and cleaning powder blending at 1000-10000 L
🖨
Food
ingredient and seasoning blending at 200-4000 L in 2-6 min cycles
🌾
Agrochemicals
powder formulation blending at 500-8000 L
Horizontal Non-Gravity Mixer at a Glance
Series Overview300 - 8,000 L
Chamber / capacity
11 - 110 kW
Motor power
Carbon steel or stainless steel with wear options
Contact material
300 - 8,000 L
Working capacity
Key Design Features
Engineering⚙️
Counter-rotating agitators creating a weightless mixing zone
Counter-rotating agitators creating a weightless mixing zone
⚙️
Very fast blending with high homogeneity
Very fast blending with high homogeneity
⚙️
Gentle enough for fragile granules despite rapid
Gentle enough for fragile granules despite rapid mixing
⚙️
Effective for powders of differing density and
Effective for powders of differing density and particle size
⚙️
Large discharge opening for rapid emptying
Large discharge opening for rapid emptying
⚙️
Wear-protected options for abrasive building materials
Wear-protected options for abrasive building materials
Applications by Industry
Selection| Industry | Typical Application |
|---|---|
| Construction Chemicals | dry mortar and plaster blending at 300-6000 L in 1-5 min cycles |
| Construction Chemicals | tile adhesive and grout blending with ≥99% homogeneity |
| Ceramics | ceramic body and glaze powder blending at 300-5000 L |
| Chemicals | detergent and cleaning powder blending at 1000-10000 L |
| Food | ingredient and seasoning blending at 200-4000 L in 2-6 min cycles |
| Agrochemicals | powder formulation blending at 500-8000 L |
| Refractories | refractory and ceramic powder blending at 500-6000 L |
| Pharmaceuticals | powder pre-blending at 200-3000 L before granulation |
| Cosmetics | mineral and pigment powder blending at 100-1500 L |
| Feed & Nutrition | premix and additive blending at 500-8000 L with CV ≤5% |
Choosing the Right Horizontal Non-Gravity Mixer
How to Choose1
Select where blend homogeneity is critical and cycle time matters
Select where blend homogeneity is critical and cycle time matters, particularly for dry mortar and building powders with components of differing density.
2
Confirm that the material tolerates the agitator speeds
Confirm that the material tolerates the agitator speeds, and specify wear protection for abrasive formulations.
3
Confirm with POLYC
Confirm contact materials and documentation (CE) with your order specifications.
Related Technical Guides
Guides
GuideTop Chinese Powder Mixer Blender Manufacturers 2026 Guide
GuidePowder Mixer Selection: Ribbon, Paddle, or Planetary?
ComparisonPlanetary Mixer vs Ribbon Blender Guide
GuideV Blender Selection & Sizing Guide: Capacity, Speed & Design
Need help specifying the Horizontal Non-Gravity Mixer for your process?
Request a QuotationDescription
How it works
A horizontal non-gravity mixer uses counter-rotating agitators to create a weightless mixing zone where particles move freely in all directions, giving very fast and uniform blending. It is specified for dry mortar, putty powder and blends requiring high homogeneity. POLYC supplies these mixers for Counter-rotating agitators creating a weightless mixing zone Very fast blending with high homogeneity Gentle enough for fragile granules despite rapid mixing Typical applications include Construction Chemicals, Construction Chemicals, Ceramics, Chemicals. Select where blend homogeneity is critical and cycle time matters, particularly for dry mortar and building powders with components of differing density.
MACHINE COMPARISON
Which configuration fits your process?
| Parameter | Horizontal Non-Gravity Mixer | Ribbon Mixer | V-Shape Powder Mixer | Double Cone Drum Mixer |
|---|---|---|---|---|
| Chamber / capacity | 300 - 8,000 L | 500 - 15,000 L | 50 - 3,000 L | 50 - 4,000 L |
| Motor power | 11 - 110 kW | 5.5 - 75 kW | 1.1 - 15 kW | 1.1 - 22 kW |
| Contact material | Carbon steel or stainless steel with wear options | Carbon steel, stainless steel 304 / 316L | Stainless steel 304 / 316L | Stainless steel 304 / 316L |
| Batch type | Dry powder and granule | Dry powder, granule or paste | Dry powder and granule | Dry powder and granule |
| Mixing time | typically 1 - 5 minutes depending on product | typically 5 - 20 minutes depending on product | typically 5 - 20 minutes depending on product | typically 8 - 25 minutes depending on product |
Read the full comparison guide: Top Chinese Powder Mixer Blender Manufacturers 2026 Guide
Process Engineering
Working Principle
- 1
Counter-rotating agitators throw material into a suspended zone where gravity no longer dominates particle movement, so blending occurs simultaneously in all directions.
- 2
This fluidised mechanical action gives short cycle times and high homogeneity while remaining gentle enough for fragile granules.
- 3
Full-length bottom discharge empties the trough quickly, reducing residue between batches.
Equipment Benefits
Equipment Advantages
- ✓
Extremely fast mixing cycles, high production efficiency
- ✓
High mixing homogeneity, CV < 5%
- ✓
No segregation of materials with different densities
- ✓
Low energy consumption per unit of mixed material
- ✓
Large capacity options for high-volume production
- ✓
Easy to clean between product changes
- ✓
Robust construction for heavy-duty industrial use
Technical Data
Technical Specifications
| Parameter | Value |
|---|---|
| Working capacity | 300 - 8,000 L |
| Motor power | 11 - 110 kW |
| Batch type | Dry powder and granule |
| Mixing time | typically 1 - 5 minutes depending on product |
| Homogeneity | high, suitable for demanding blend specifications |
| Contact material | Carbon steel or stainless steel with wear options |
| Discharge | Full-length bottom discharge |
PRODUCT INQUIRY
Get Price & Specs for This Product
Tell us your material and capacity, our engineer will reply within 24 hours.
Thank you! Our engineer will contact you within 24 hours.
Equipment Guidance
Frequently Asked Questions
What mixing duties is the Horizontal Non-Gravity Mixer designed for?
The Horizontal Non-Gravity Mixer is built for Construction Chemicals, Ceramics. It is selected when the batch has to be blended homogeneously without the shear damage a disperser would cause.
What viscosity range can it handle?
The working viscosity range follows the agitator geometry and drive torque. Product-contact parts are Carbon steel or stainless steel with wear options.
How is mixing uniformity achieved?
The agitator geometry keeps the whole batch moving rather than only the zone around the shaft, so colour, filler and additive distribution stay consistent from batch to batch.
What capacity range is available?
Capacity is 300 - 8,000 L, with motor power 11 - 110 kW. Vessel size is matched to the batch and the available floor space.
What discharge and cleaning options are available?
Bottom discharge, side discharge and hydraulic discharge arrangements are offered, with vacuum and jacket options where the formulation requires them.
Industry Applications
Applications
Construction Chemicals
dry mortar and plaster blending at 300-6000 L in 1-5 min cycles
Construction Chemicals
tile adhesive and grout blending with ≥99% homogeneity
Ceramics
ceramic body and glaze powder blending at 300-5000 L
Chemicals
detergent and cleaning powder blending at 1000-10000 L
Food
ingredient and seasoning blending at 200-4000 L in 2-6 min cycles
Agrochemicals
powder formulation blending at 500-8000 L
Refractories
refractory and ceramic powder blending at 500-6000 L
Pharmaceuticals
powder pre-blending at 200-3000 L before granulation
Cosmetics
mineral and pigment powder blending at 100-1500 L
Feed & Nutrition
premix and additive blending at 500-8000 L with CV ≤5%
WHY POLYC MACHINE
Built on Engineering Excellence Since 2006
Every machine is designed by our in-house R&D team, built in our own factory, and supported by the same team that has delivered over 8,000 systems worldwide.
ISO 9001 & CE Certified
Manufactured under an ISO 9001 quality management system. All machines comply with CE directives, with EC Declaration of Conformity for every order.
Experience Since 2006
Since 2006, POLYC has engineered wet grinding, dispersing and mixing systems for global manufacturers.
3-Year Warranty
Every machine carries a 3-year warranty with ongoing spare-parts supply and technical support after delivery.
30-Day Delivery
Standard models ship within 30 days of order confirmation. Custom-engineered lines are scheduled against your project timeline.
Free Installation Guidance
Free installation guidance and operator training are included with every machine, covering commissioning and safe start-up.
Custom Engineering
From lab-scale 0.5L to 12,000L production systems. Material testing, configuration and process design included.
24-Hour Response
Engineering consultation within 24 hours. Application review, technical specs and quotation delivered fast.
Global Shipping
Export-ready packaging with full documentation. DDP/FOB/CIF terms available for 80+ countries.
Lifetime Technical Support
Genuine spare parts, remote diagnostics and lifetime technical support for every machine we build.
