Powder Mixers
Horizontal Paddle Blender
Horizontal Paddle Blender: Paddle Blender for Dry Mortar, Putty & Building Material Powders. Capacity range 100-30000L. Typical applications: Construction Chemicals, Food, Agrochemicals, Ceramics, Chemicals.
Paddle Blender for Dry Mortar, Putty & Building Material Powders

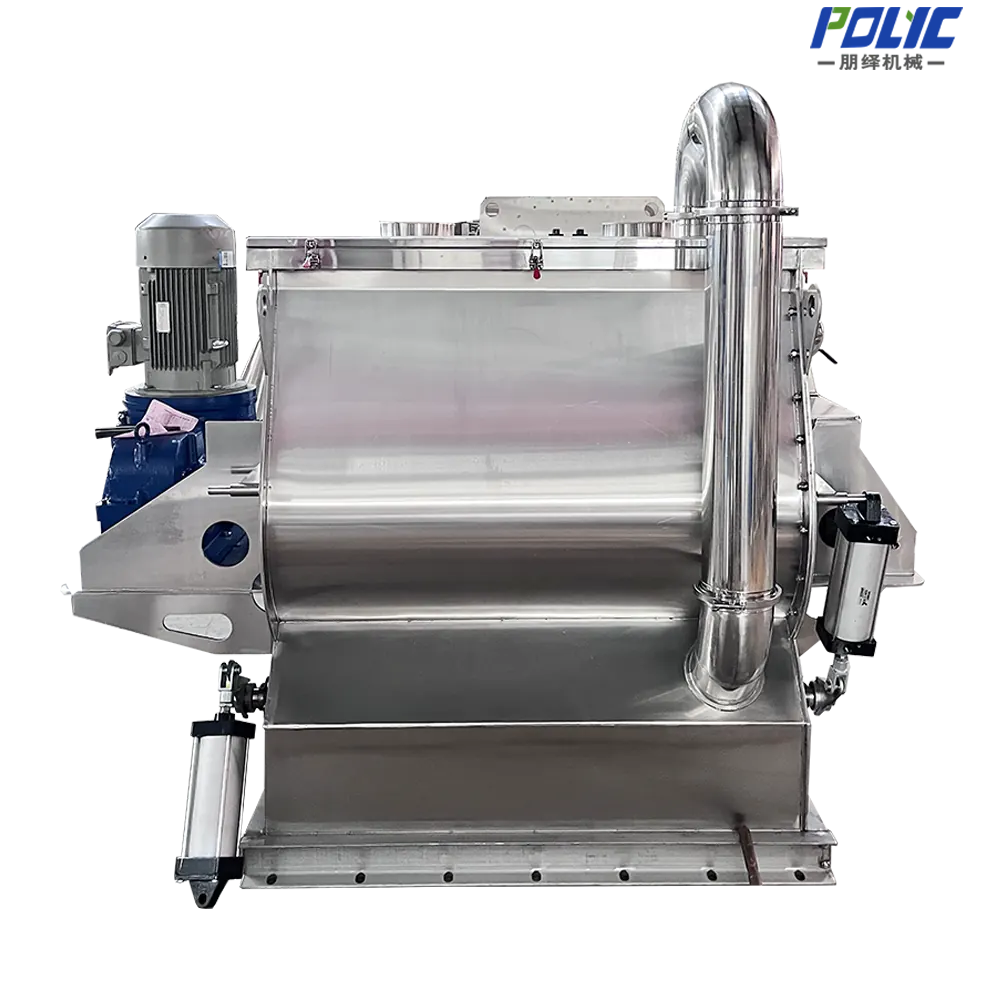

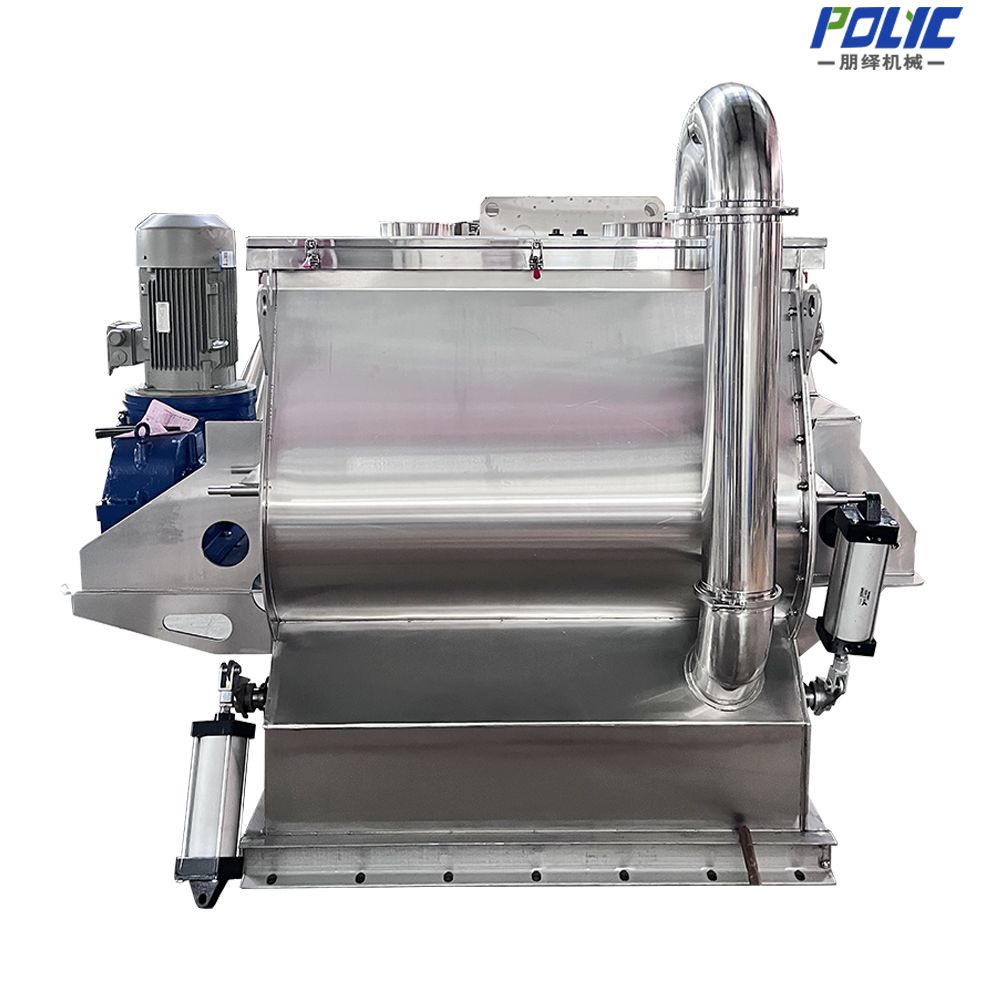

The horizontal paddle blender is a heavy-duty powder mixing machine designed for dry mortar, wall putty, tile adhesive and other building material powders.
Key Facts
- Equipment Type
- Powder Mixers
- Capacity / Batch Range
- 100-30000L
- Motor Power
- 5.5 - 75 kW
- Typical Applications
- Construction Chemicals, Food, Agrochemicals, Ceramics
Request a Quote
Response within 24 hours · Engineering consultation · Application review available
Where the Horizontal Paddle Blender Performs Best
Industry ApplicationsHorizontal Paddle Blender is applied across multiple industries. The configuration is matched to your material, fineness target and batch volume.
🎨
Construction Chemicals
dry mortar and putty powder blending at 300-5000 L
🧪
Construction Chemicals
tile adhesive and grout blending in 3-8 min cycles
🚗
Food
ingredient and seasoning blending at 200-4000 L
🪓
Agrochemicals
wettable powder blending at 300-6000 L
🖨
Ceramics
ceramic powder and body blending at 300-5000 L
🌾
Chemicals
detergent powder production at 500-8000 L
Horizontal Paddle Blender at a Glance
Series Overview200 - 8,000 L
Chamber / capacity
5.5 - 75 kW
Motor power
Carbon steel or stainless steel 304 / 316L
Contact material
200 - 8,000 L
Working capacity
Key Design Features
Engineering⚙️
Paddle agitators giving thorough blending in a
Paddle agitators giving thorough blending in a horizontal trough
⚙️
Effective for powders
Effective for powders, granules and semi-dry materials
⚙️
Controlled mixing action limiting particle damage
Controlled mixing action limiting particle damage
⚙️
Large discharge opening for rapid emptying
Large discharge opening for rapid emptying
⚙️
Liquid addition option for coating or agglomerating
Liquid addition option for coating or agglomerating
⚙️
Dust-controlled feed and discharge arrangements
Dust-controlled feed and discharge arrangements
Applications by Industry
Selection| Industry | Typical Application |
|---|---|
| Construction Chemicals | dry mortar and putty powder blending at 300-5000 L |
| Construction Chemicals | tile adhesive and grout blending in 3-8 min cycles |
| Food | ingredient and seasoning blending at 200-4000 L |
| Agrochemicals | wettable powder blending at 300-6000 L |
| Ceramics | ceramic powder and body blending at 300-5000 L |
| Chemicals | detergent powder production at 500-8000 L |
| Feed & Nutrition | animal feed and premix blending at 500-6000 L |
| Refractories | refractory powder blending at 500-6000 L |
| Semi-Dry Compounds | paste blending at 20-40% moisture content |
| Cosmetics | powder and pigment blend preparation at 100-1500 L |
Choosing the Right Horizontal Paddle Blender
How to Choose1
Choose for powders
Choose for powders, granules and semi-dry materials needing thorough blending without high shear.
2
For very cohesive or pasty material use a plough shear mixer
For very cohesive or pasty material use a plough shear mixer, and for fragile free-flowing powder consider a ribbon blender.
3
Confirm discharge arrangement against your downstream handling.
Confirm discharge arrangement against your downstream handling.
Related Technical Guides
Guides
GuideTop Chinese Powder Mixer Blender Manufacturers 2026 Guide
GuidePowder Mixer Selection: Ribbon, Paddle, or Planetary?
GuideV Blender Selection & Sizing Guide: Capacity, Speed & Design
ComparisonPlanetary Mixer vs Ribbon Blender Guide
Need help specifying the Horizontal Paddle Blender for your process?
Request a QuotationDescription
How it works
The horizontal paddle blender is a heavy-duty powder mixing machine designed for dry mortar, wall putty, tile adhesive and other building material powders. Features multi-layer paddle agitator for high-efficiency convection mixing, with optional flying knives for fibre dispersion and lump breaking. Paddle agitators giving thorough blending in a horizontal trough Effective for powders, granules and semi-dry materials Controlled mixing action limiting particle damage Typical applications include Construction Chemicals, Construction Chemicals, Food, Agrochemicals. Choose for powders, granules and semi-dry materials needing thorough blending without high shear.
MACHINE COMPARISON
Which configuration fits your process?
| Parameter | Horizontal Paddle Blender | Ribbon Mixer | V-Shape Powder Mixer | Double Cone Drum Mixer |
|---|---|---|---|---|
| Chamber / capacity | 200 - 8,000 L | 500 - 15,000 L | 50 - 3,000 L | 50 - 4,000 L |
| Motor power | 5.5 - 75 kW | 5.5 - 75 kW | 1.1 - 15 kW | 1.1 - 22 kW |
| Contact material | Carbon steel or stainless steel 304 / 316L | Carbon steel, stainless steel 304 / 316L | Stainless steel 304 / 316L | Stainless steel 304 / 316L |
| Batch type | Powder, granule, semi-dry material | Dry powder, granule or paste | Dry powder and granule | Dry powder and granule |
| Mixing time | typically 3 - 15 minutes depending on product | typically 5 - 20 minutes depending on product | typically 5 - 20 minutes depending on product | typically 8 - 25 minutes depending on product |
Read the full comparison guide: Top Chinese Powder Mixer Blender Manufacturers 2026 Guide
Process Engineering
Working Principle
- 1
Paddle agitators rotate in a horizontal trough, lifting and folding material in a three-dimensional pattern that produces convective blending.
- 2
The action is more intensive than a ribbon mixer yet gentler than a plough shear mixer, making it suitable for semi-dry and moderately cohesive materials.
- 3
Discharge is through a bottom or end outlet sized for fast emptying between batches.
Equipment Benefits
Equipment Advantages
- ✓
High mixing efficiency, short mixing cycles (3-8 minutes)
- ✓
Gentle mixing preserves particle morphology
- ✓
No dead corners, complete discharge
- ✓
Versatile for wide range of powder and paste applications
- ✓
Easy to clean and maintain
- ✓
Robust construction for heavy-duty industrial use
- ✓
Low energy consumption compared to other mixer types
Technical Data
Technical Specifications
| Parameter | Value |
|---|---|
| Working capacity | 200 - 8,000 L |
| Motor power | 5.5 - 75 kW |
| Batch type | Powder, granule, semi-dry material |
| Mixing time | typically 3 - 15 minutes depending on product |
| Contact material | Carbon steel or stainless steel 304 / 316L |
| Options | Liquid spray, jacketed, dust collection |
| Discharge | Bottom or end discharge valve |
PRODUCT INQUIRY
Get Price & Specs for This Product
Tell us your material and capacity, our engineer will reply within 24 hours.
Thank you! Our engineer will contact you within 24 hours.
Equipment Guidance
Frequently Asked Questions
What mixing duties is the Horizontal Paddle Blender designed for?
The Horizontal Paddle Blender is built for Construction Chemicals, Food. It is selected when the batch has to be blended homogeneously without the shear damage a disperser would cause.
What viscosity range can it handle?
The working viscosity range follows the agitator geometry and drive torque. Product-contact parts are Carbon steel or stainless steel 304 / 316L.
How is mixing uniformity achieved?
The agitator geometry keeps the whole batch moving rather than only the zone around the shaft, so colour, filler and additive distribution stay consistent from batch to batch.
What capacity range is available?
Capacity is 200 - 8,000 L, with motor power 5. Vessel size is matched to the batch and the available floor space.
What discharge and cleaning options are available?
Bottom discharge, side discharge and hydraulic discharge arrangements are offered, with vacuum and jacket options where the formulation requires them.
