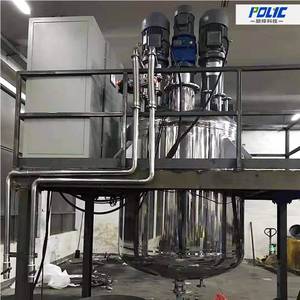

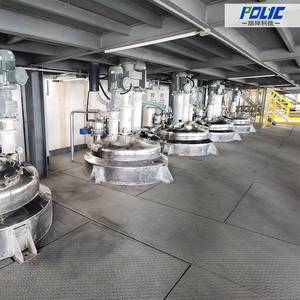

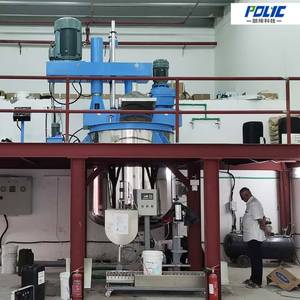

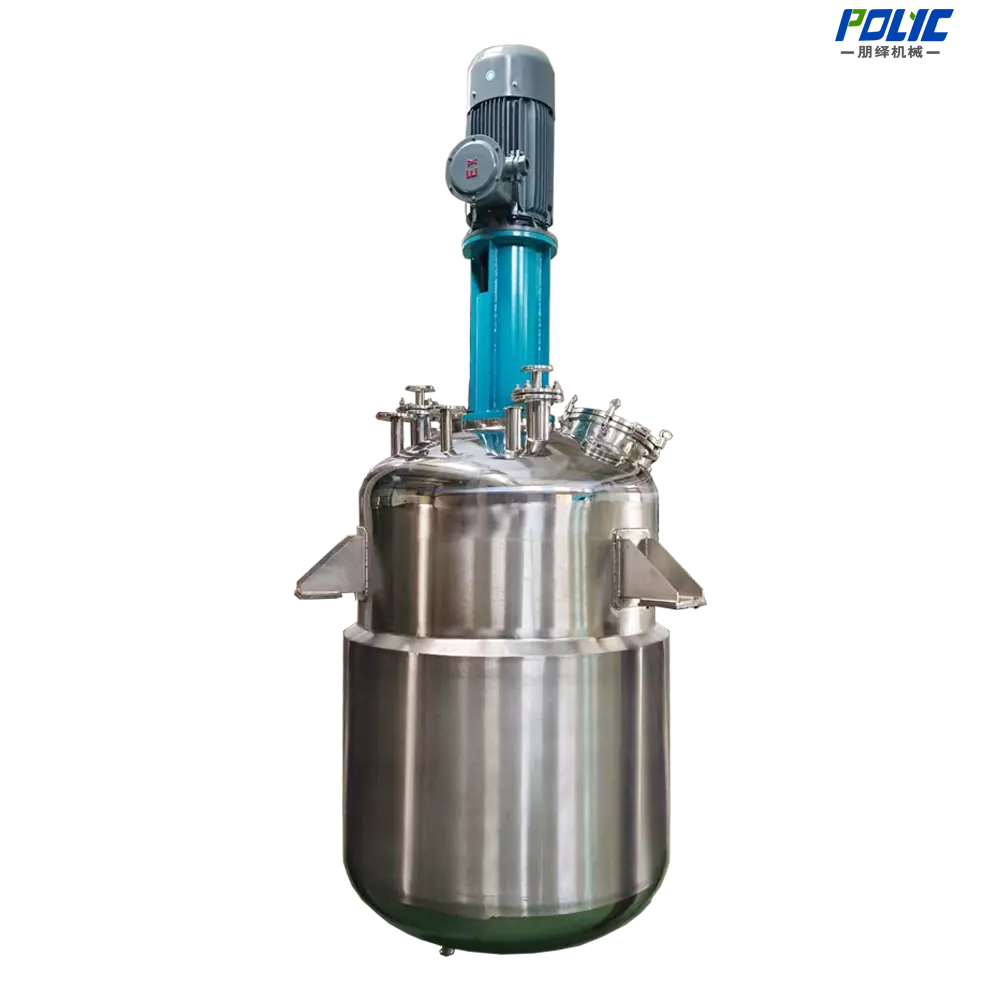

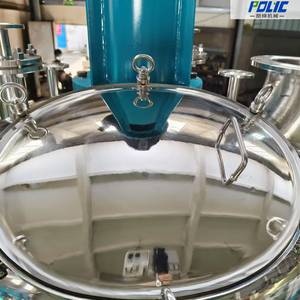

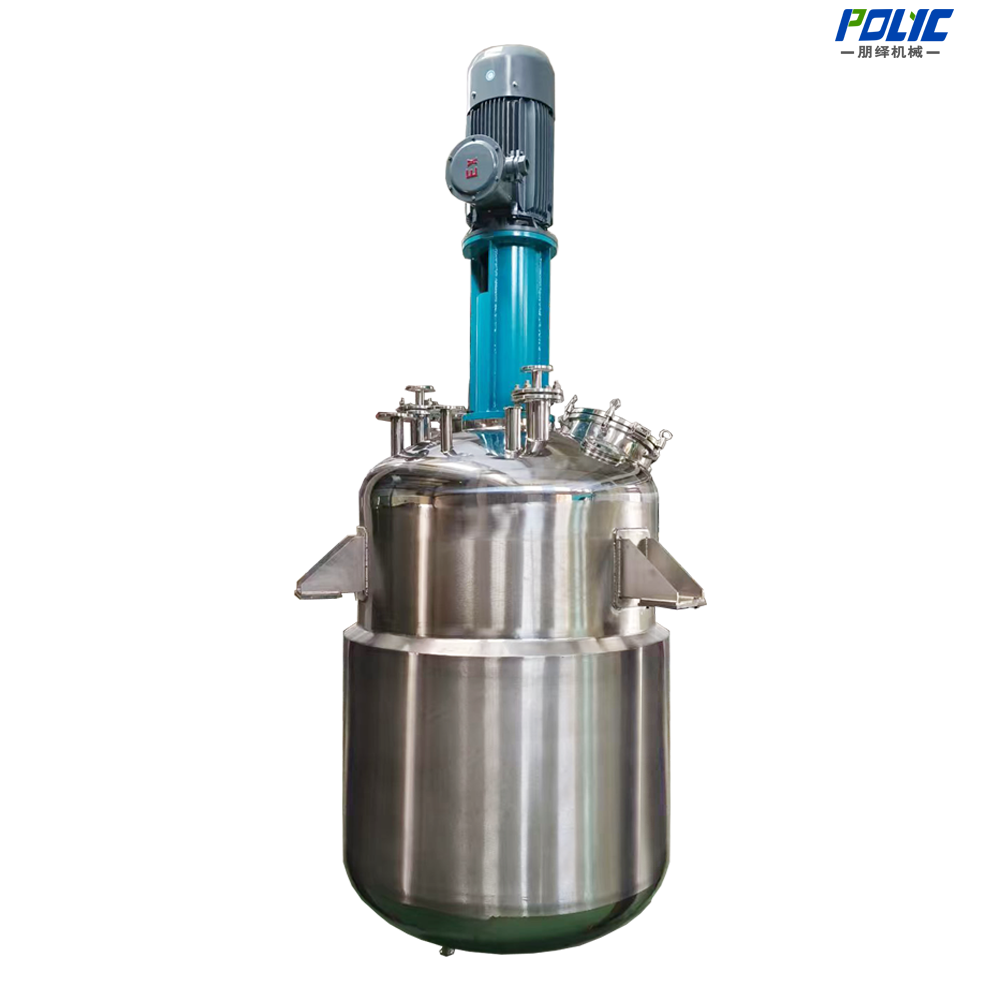

Multi Function Dispersing Kettle
Multi Function Dispersing Kettle: A multi-function dispersing kettle integrates mixing, dispersion, emulsification, heating, cooling and optional vacuum in a single jacketed vessel. It. Capacity range 100 - 20,000 L. Typical applications: Cosmetics, Pharmaceuticals, Food, Industrial Coatings, Adhesives & Sealants.
A multi-function dispersing kettle integrates mixing, dispersion, emulsification, heating, cooling and optional vacuum in a single jacketed vessel. It
A multi-function dispersing kettle integrates mixing, dispersion, emulsification, heating, cooling and optional vacuum in a single jacketed vessel.
Key Facts
- Equipment Type
- Reactors & Kettles
- Capacity / Batch Range
- 100 - 20,000 L
- Motor Power
- 4 - 75 kW
- Max Viscosity
- up to approximately 100,000 cP depending on agitator
- Typical Applications
- Cosmetics, Pharmaceuticals, Food, Industrial Coatings
Request a Quote
Response within 24 hours · Engineering consultation · Application review available
Where the Multi Function Dispersing Kettle Performs Best
Industry ApplicationsMulti Function Dispersing Kettle is applied across multiple industries. The configuration is matched to your material, fineness target and batch volume.
🎨
Cosmetics
emulsifying at 100-3000 L to 1-20 μm droplets
🧪
Pharmaceuticals
suspension and emulsion processing at 100-2000 L
🚗
Food
sauce and condiment preparation at 200-4000 L at 60-95 °C
🪓
Industrial Coatings
coating production at 500-6000 L to ≤50,000 cP
🖨
Adhesives & Sealants
compounding at 200-4000 L under vacuum to 1-30 mbar
🌾
Personal Care
cream and gel manufacturing at 100-2500 L
Multi Function Dispersing Kettle at a Glance
Series Overview100 - 5,000 L
Chamber / capacity
4 - 75 kW
Motor power
Interchangeable agitator set
Media / agitation
up to approximately 100,000 cP depending on agitator
Viscosity
Key Design Features
Engineering⚙️
Multiple process functions in one jacketed vessel
Multiple process functions in one jacketed vessel
⚙️
Interchangeable agitators for mixing
Interchangeable agitators for mixing, dispersion and emulsification
⚙️
Jacketed heating and cooling with temperature control
Jacketed heating and cooling with temperature control
⚙️
Vacuum option for deaeration and moisture removal
Vacuum option for deaeration and moisture removal
⚙️
Bottom-mounted high-shear emulsifier option
Bottom-mounted high-shear emulsifier option
⚙️
Suitable for batch production across several product
Suitable for batch production across several product families
Applications by Industry
Selection| Industry | Typical Application |
|---|---|
| Cosmetics | emulsifying at 100-3000 L to 1-20 μm droplets |
| Pharmaceuticals | suspension and emulsion processing at 100-2000 L |
| Food | sauce and condiment preparation at 200-4000 L at 60-95 °C |
| Industrial Coatings | coating production at 500-6000 L to ≤50,000 cP |
| Adhesives & Sealants | compounding at 200-4000 L under vacuum to 1-30 mbar |
| Personal Care | cream and gel manufacturing at 100-2500 L |
| Chemicals | specialty chemical blending at 200-5000 L |
| Pigment Pastes | dispersion and letdown at 200-3000 L |
| Agrochemicals | formulation blending and homogenisation at 300-5000 L |
| Construction Chemicals | coating compound production at 500-6000 L with vacuum option |
Choosing the Right Multi Function Dispersing Kettle
How to Choose1
Specify batch volume
Specify batch volume, viscosity, solids loading, mixing stages, and target product uniformity.
2
Select single-
Select single-, double-, or triple-shaft configuration and heating, cooling, or vacuum functions as required.
3
Confirm controls
Confirm controls, load cells, vessel finish, and solvent classification with the process design.
Related Technical Guides
Guides
GuideInline Disperser Guide: How High-Shear Inline Dispersion Cuts Milling Time & Cost
ComparisonDual Shaft vs Triple Shaft Mixer for Sealants
GuideTop Chinese Vacuum Emulsifying Mixer Manufacturers 2026 Guide
GuidePaint Factory Equipment: A Practical Guide to Core Machinery
Need help specifying the Multi Function Dispersing Kettle for your process?
Request a QuotationDescription
How it works
A multi-function dispersing kettle integrates mixing, dispersion, emulsification, heating, cooling and optional vacuum in a single jacketed vessel. It suits plants producing several product families where flexibility matters more than maximum throughput. POLYC supplies these vessels with interchange Multiple process functions in one jacketed vessel Interchangeable agitators for mixing, dispersion and emulsification Jacketed heating and cooling with temperature control Typical applications include Cosmetics, Pharmaceuticals, Food, Industrial Coatings. Specify batch volume, viscosity, solids loading, mixing stages, and target product uniformity.
INDUSTRIES THIS MACHINE SERVES
Industries we serve
MACHINE COMPARISON
Which configuration fits your process?
| Parameter | Multi Function Dispersing Kettle | Electrical Heating Reactor/Chemical Reactor | Emulsifying/homogenization kettle | Mixing Kettle & Tinting Kettle |
|---|---|---|---|---|
| Chamber / capacity | 100 - 5,000 L | 100 - 10,000 L | 50 - 3,000 L | 200 - 10,000 L |
| Motor power | 4 - 75 kW | — | 3 - 45 kW depending on configuration | 2.2 - 45 kW |
| Media / agitation | Interchangeable agitator set | Anchor, paddle, turbine or dispersing depending on process | — | Low-speed anchor, paddle or propeller |
| Viscosity | up to approximately 100,000 cP depending on agitator | — | — | low to medium viscosity coatings |
| Contact material | Stainless steel 304 / 316L | Stainless steel 304 / 316L, optional special alloys | Stainless steel 316L with polished finish | Stainless steel 304 / 316L |
Process Engineering
Working Principle
- 1

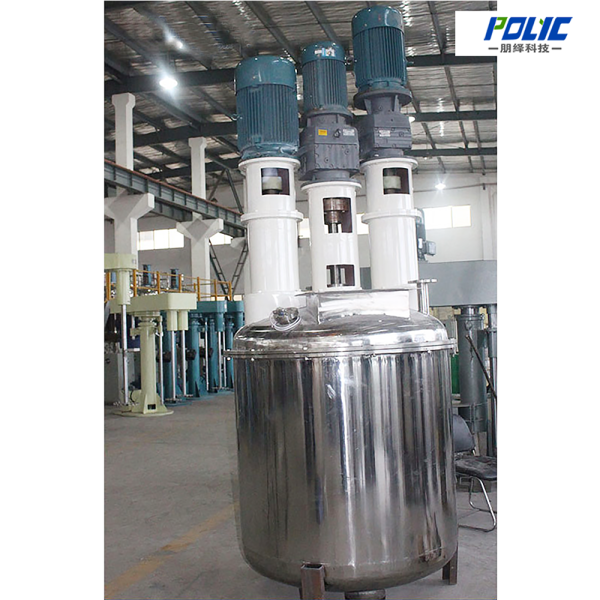

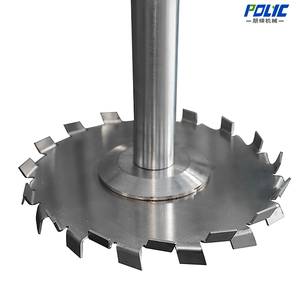

One or more shafts combine high-speed dispersion with low-speed bulk circulation inside a jacketed vessel.
- 2
The high-speed tool wets and disperses solids while the low-speed agitator maintains uniform turnover.
- 3
Optional vacuum, heating, cooling, weighing, and PLC control coordinate the complete batch sequence.
Equipment Benefits
Equipment Advantages
- ✓
Combines dispersion, mixing, and optional thermal processing.
- ✓
Single-, double-, or triple-shaft configurations match product rheology.
- ✓
Vacuum, weighing, and PLC options support repeatable batch control.
- ✓
Integrated vessel design reduces transfers between separate machines.
Technical Data
Technical Specifications
| Parameter | Value |
|---|---|
| Working capacity | 100 - 5,000 L |
| Motor power | 4 - 75 kW |
| Viscosity range | up to approximately 100,000 cP depending on agitator |
| Temperature control | Jacketed vessel with heating and cooling |
| Vacuum | Optional |
| Contact material | Stainless steel 304 / 316L |
| Agitation | Interchangeable agitator set |
PRODUCT INQUIRY
Get Price & Specs for This Product
Tell us your material and capacity, our engineer will reply within 24 hours.
Thank you! Our engineer will contact you within 24 hours.
Equipment Guidance
Frequently Asked Questions
What mixing duties is the Multi Function Dispersing Kettle designed for?
The Multi Function Dispersing Kettle is built for Cosmetics, Pharmaceuticals, Food. It is selected when the batch has to be blended homogeneously without the shear damage a disperser would cause.
What viscosity range can it handle?
It works up to up to approximately 100,000 cP depending on agitator. Product-contact parts are Stainless steel 304 / 316L.
How is mixing uniformity achieved?
The agitator geometry keeps the whole batch moving rather than only the zone around the shaft, so colour, filler and additive distribution stay consistent from batch to batch.
What capacity range is available?
Capacity is 100 - 5,000 L, with motor power 4 - 75 kW. Vessel size is matched to the batch and the available floor space.
What discharge and cleaning options are available?
Bottom discharge, side discharge and hydraulic discharge arrangements are offered, with vacuum and jacket options where the formulation requires them.
Industry Applications
Applications
Cosmetics
emulsifying at 100-3000 L to 1-20 µm droplets
Pharmaceuticals
suspension and emulsion processing at 100-2000 L
Food
sauce and condiment preparation at 200-4000 L at 60-95 °C
Industrial Coatings
coating production at 500-6000 L to ≤50,000 cP
Adhesives & Sealants
compounding at 200-4000 L under vacuum to 1-30 mbar
Personal Care
cream and gel manufacturing at 100-2500 L
Chemicals
specialty chemical blending at 200-5000 L
Pigment Pastes
dispersion and letdown at 200-3000 L
Agrochemicals
formulation blending and homogenisation at 300-5000 L
Construction Chemicals
coating compound production at 500-6000 L with vacuum option
WHY POLYC MACHINE
Built on 25 Years of Engineering Excellence
Every machine is designed by our in-house R&D team, built in our own factory, and supported by the same team that has delivered over 8,000 systems worldwide.
ISO 9001 & CE Certified
Manufactured under an ISO 9001 quality management system. All machines comply with CE directives, with EC Declaration of Conformity for every order.
25 Years Experience
Since 2001, POLYC has engineered wet grinding, dispersing and mixing systems for global manufacturers.
3-Year Warranty
Every machine carries a 3-year warranty with ongoing spare-parts supply and technical support after delivery.
30-Day Delivery
Standard models ship within 30 days of order confirmation. Custom-engineered lines are scheduled against your project timeline.
Free Installation Guidance
Free installation guidance and operator training are included with every machine, covering commissioning and safe start-up.
Custom Engineering
From lab-scale 0.5L to 12,000L production systems. Material testing, configuration and process design included.
24-Hour Response
Engineering consultation within 24 hours. Application review, technical specs and quotation delivered fast.
Global Shipping
Export-ready packaging with full documentation. DDP/FOB/CIF terms available for 80+ countries.
Lifetime Technical Support
Genuine spare parts, remote diagnostics and lifetime technical support for every machine we build.
Continue exploring

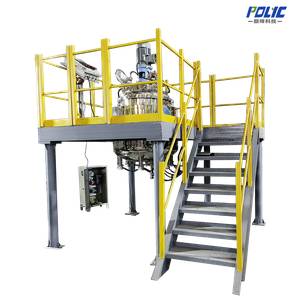

Electrical Heating Reactor/Chemical Reactor
