Powder Mixers

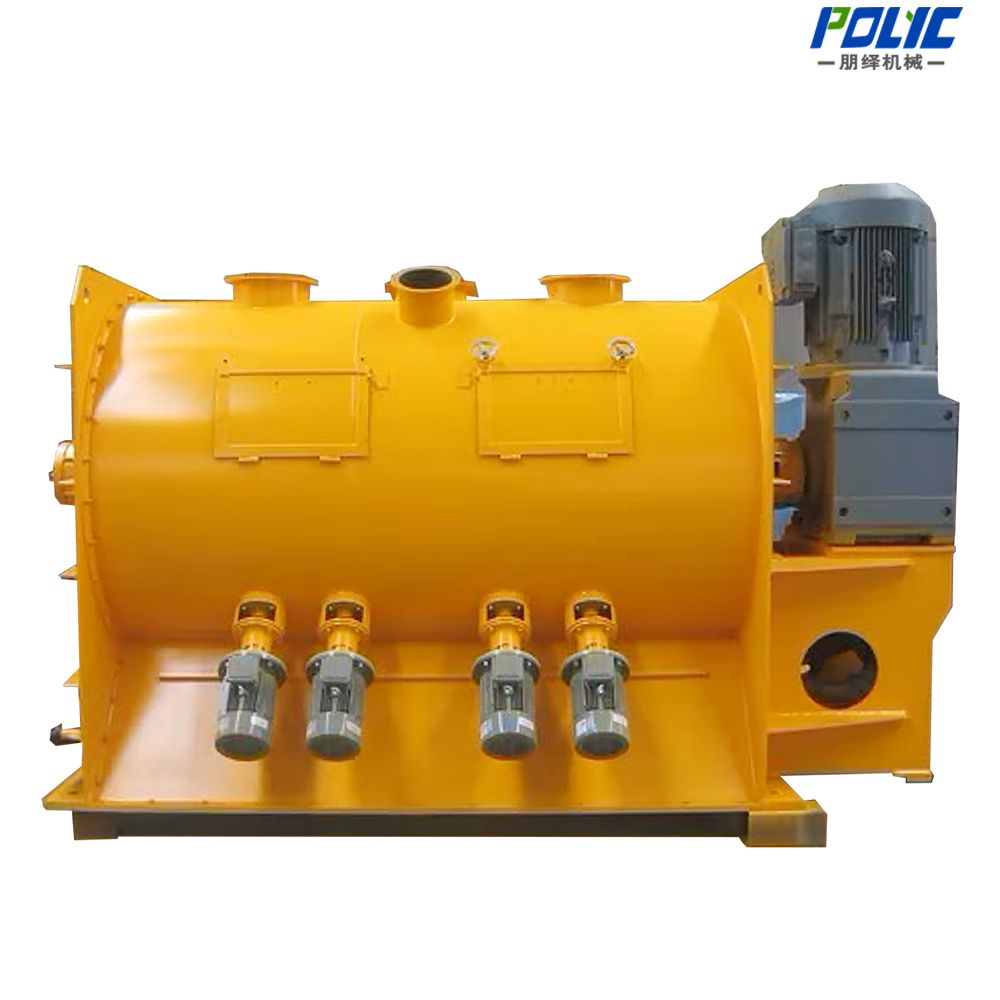

Horizontal Plough Shear Mixer
Horizontal Plough Shear Mixer: Plough Shear Mixer for Intensive Powder & Particle Blending. Capacity range 100-20000L. Typical applications: Construction Chemicals, Battery Materials, Ceramics, Pigment & Filler, Chemicals.
Plough Shear Mixer for Intensive Powder & Particle Blending
The horizontal plough shear mixer features plough-shaped agitators that create intense mechanical fluidization, achieving rapid, high-intensity mixing of powders, granules and pastes.
Key Facts
- Equipment Type
- Powder Mixers
- Capacity / Batch Range
- 100-20000L
- Motor Power
- 7.5 - 110 kW
- Typical Applications
- Construction Chemicals, Battery Materials, Ceramics, Pigment & Filler
Request a Quote
Response within 24 hours · Engineering consultation · Application review available
Where the Horizontal Plough Shear Mixer Performs Best
Industry ApplicationsHorizontal Plough Shear Mixer is applied across multiple industries. The configuration is matched to your material, fineness target and batch volume.
🎨
Construction Chemicals
dry mortar blending at 300-6000 L in 1-5 min cycles
🧪
Battery Materials
powder premixing at 100-3000 L before slurry processing
🚗
Ceramics
ceramic body blending at 300-5000 L with fibre dispersion
🪓
Pigment & Filler
blending with chopper deagglomeration at 1500-3000 rpm
🖨
Chemicals
pigment and additive powder blending at 200-4000 L
🌾
Agrochemicals
powder blending with 5-15% liquid binder addition
Horizontal Plough Shear Mixer at a Glance
Series Overview100 - 6,000 L
Chamber / capacity
7.5 - 110 kW
Motor power
Carbon steel or stainless steel 304 / 316L
Contact material
100 - 6,000 L
Working capacity
Key Design Features
Engineering⚙️
Plough-shaped agitators creating a fluidised mixing bed
Plough-shaped agitators creating a fluidised mixing bed
⚙️
High-speed choppers breaking agglomerates and dispersing fibres
High-speed choppers breaking agglomerates and dispersing fibres
⚙️
Handles powders
Handles powders, granules, fibres and pastes
⚙️
Short mixing cycles compared with convective mixers
Short mixing cycles compared with convective mixers
⚙️
Liquid addition capability during mixing
Liquid addition capability during mixing
⚙️
Robust construction for abrasive materials
Robust construction for abrasive materials
Applications by Industry
Selection| Industry | Typical Application |
|---|---|
| Construction Chemicals | dry mortar blending at 300-6000 L in 1-5 min cycles |
| Battery Materials | powder premixing at 100-3000 L before slurry processing |
| Ceramics | ceramic body blending at 300-5000 L with fibre dispersion |
| Pigment & Filler | blending with chopper deagglomeration at 1500-3000 rpm |
| Chemicals | pigment and additive powder blending at 200-4000 L |
| Agrochemicals | powder blending with 5-15% liquid binder addition |
| Food | ingredient blending at 200-4000 L with particle dispersion |
| Refractories | refractory and ceramic compound blending at 500-6000 L |
| Plastics | masterbatch and additive blending at 200-5000 L |
| Detergents | cleaning powder production at 1000-10000 L with agglomerate control |
Choosing the Right Horizontal Plough Shear Mixer
How to Choose1
Specify where the material contains agglomerates
Specify where the material contains agglomerates, fibres or cohesive fines, or where very short cycles are required.
2
Confirm the product tolerates chopper shear
Confirm the product tolerates chopper shear, and specify wear-protected agitators and liners for abrasive formulations.
3
Confirm with POLYC
Confirm contact materials and documentation (CE) with your order specifications.
Related Technical Guides
Guides
GuideInline Disperser Guide: How High-Shear Inline Dispersion Cuts Milling Time & Cost
GuideTop Chinese Vacuum Emulsifying Mixer Manufacturers 2026 Guide
GuideHigh Viscosity Mixer Specs and Selection Guide
ComparisonDual Shaft vs Triple Shaft Mixer for Sealants
Need help specifying the Horizontal Plough Shear Mixer for your process?
Request a QuotationDescription
How it works
The horizontal plough shear mixer features plough-shaped agitators that create intense mechanical fluidization, achieving rapid, high-intensity mixing of powders, granules and pastes. Equipped with high-speed choppers for agglomerate breaking and fibre dispersion, ideal for chemical, food, pharmaceu Plough-shaped agitators creating a fluidised mixing bed High-speed choppers breaking agglomerates and dispersing fibres Handles powders, granules, fibres and pastes Typical applications include Construction Chemicals, Battery Materials, Ceramics, Pigment & Filler. Specify where the material contains agglomerates, fibres or cohesive fines, or where very short cycles are required.
MACHINE COMPARISON
Which configuration fits your process?
| Parameter | Horizontal Plough Shear Mixer | Ribbon Mixer | V-Shape Powder Mixer | Double Cone Drum Mixer |
|---|---|---|---|---|
| Chamber / capacity | 100 - 6,000 L | 500 - 15,000 L | 50 - 3,000 L | 50 - 4,000 L |
| Motor power | 7.5 - 110 kW | 5.5 - 75 kW | 1.1 - 15 kW | 1.1 - 22 kW |
| Contact material | Carbon steel or stainless steel 304 / 316L | Carbon steel, stainless steel 304 / 316L | Stainless steel 304 / 316L | Stainless steel 304 / 316L |
| Batch type | Powder, granule, fibre, paste | Dry powder, granule or paste | Dry powder and granule | Dry powder and granule |
| Chopper speed | 1,500 - 3,000 rpm typical | — | — | — |
Process Engineering
Working Principle
- 1
Plough-shaped agitators lift material into a fluidised state while high-speed choppers break agglomerates and disperse fibres or liquid binders.
- 2
The combination gives short mixing cycles and effective deagglomeration that convective mixers cannot achieve.
- 3
Because choppers add energy, parameters should be set so agglomerates are broken without over-processing the product.
Equipment Benefits
Equipment Advantages
- ✓
Extremely fast mixing cycles, highest production efficiency
- ✓
High mixing homogeneity even for difficult materials
- ✓
No segregation of materials with different densities
- ✓
Intensive shear mixing with choppers
- ✓
Compact design, high capacity per floor space
- ✓
Low energy consumption per unit of mixed material
- ✓
Easy to clean between product changes
- ✓
Versatile for wide range of material types
Technical Data
Technical Specifications
| Parameter | Value |
|---|---|
| Working capacity | 100 - 6,000 L |
| Motor power | 7.5 - 110 kW |
| Batch type | Powder, granule, fibre, paste |
| Chopper speed | 1,500 - 3,000 rpm typical |
| Mixing time | typically 1 - 8 minutes depending on product |
| Contact material | Carbon steel or stainless steel 304 / 316L |
| Options | Liquid spray, jacketed, vacuum, wear protection |
PRODUCT INQUIRY
Get Price & Specs for This Product
Tell us your material and capacity, our engineer will reply within 24 hours.
Thank you! Our engineer will contact you within 24 hours.
Equipment Guidance
Frequently Asked Questions
What mixing duties is the Horizontal Plough Shear Mixer designed for?
The Horizontal Plough Shear Mixer is built for Construction Chemicals, Battery Materials, Ceramics. It is selected when the batch has to be blended homogeneously without the shear damage a disperser would cause.
What viscosity range can it handle?
The working viscosity range follows the agitator geometry and drive torque. Product-contact parts are Carbon steel or stainless steel 304 / 316L.
How is mixing uniformity achieved?
The agitator geometry keeps the whole batch moving rather than only the zone around the shaft, so colour, filler and additive distribution stay consistent from batch to batch.
What capacity range is available?
Capacity is 100 - 6,000 L, with motor power 7. Vessel size is matched to the batch and the available floor space.
What discharge and cleaning options are available?
Bottom discharge, side discharge and hydraulic discharge arrangements are offered, with vacuum and jacket options where the formulation requires them.
Industry Applications
Applications
Construction Chemicals
dry mortar blending at 300-6000 L in 1-5 min cycles
Battery Materials
powder premixing at 100-3000 L before slurry processing
Ceramics
ceramic body blending at 300-5000 L with fibre dispersion
Pigment & Filler
blending with chopper deagglomeration at 1500-3000 rpm
Chemicals
pigment and additive powder blending at 200-4000 L
Agrochemicals
powder blending with 5-15% liquid binder addition
Food
ingredient blending at 200-4000 L with particle dispersion
Refractories
refractory and ceramic compound blending at 500-6000 L
Plastics
masterbatch and additive blending at 200-5000 L
Detergents
cleaning powder production at 1000-10000 L with agglomerate control
