Laboratory Equipment
The SDF400 Laboratory Disperser is a laboratory disperser for small-batch dispersion and for generating process data before production scale-up. Its confirmed c. Capacity range 0.2 - 50 L. Typical applications: Architectural Paints, Printing Inks, Industrial Coatings, Cosmetics, Adhesives & Sealants.
The SDF400 Laboratory Disperser is a laboratory disperser for small-batch dispersion and for generating process data before production scale-up. Its confirmed c

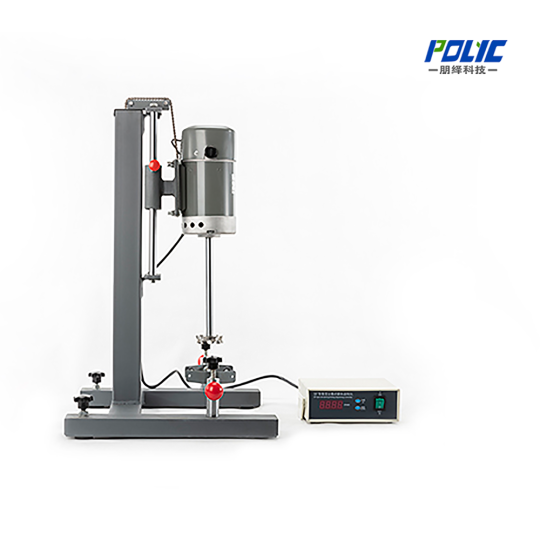

The SDF400 laboratory disperser is a compact high-speed unit for formulation work, sample preparation and dispersion testing on small batches.
Response within 24 hours · Engineering consultation · Application review available
SDF400 Laboratory Disperser is applied across multiple industries. The configuration is matched to your material, fineness target and batch volume.
paint and coating formulation at 0.5-20 L
ink dispersion testing and sample preparation
coating sample preparation and fineness checks
personal care laboratory trials
adhesive sample development
colour development and dispersion checks
| Industry | Typical Application |
|---|---|
| Architectural Paints | paint and coating formulation at 0.5-20 L |
| Printing Inks | ink dispersion testing and sample preparation |
| Industrial Coatings | coating sample preparation and fineness checks |
| Cosmetics | personal care laboratory trials |
| Adhesives & Sealants | adhesive sample development |
| Quality Control | colour development and dispersion checks |
| Training | laboratory dispersion training |
| Research & Development | new raw material screening |
| Pilot Trials | small-batch formulation validation |
| Technical Service | sample preparation for customer evaluation |
Select vessel size from sample availability, formulation screening plan, and intended production scale.
Specify viscosity, blade diameter, speed range, lifting method, and required data recording.
Confirm vessel restraint, guarding, contact materials, and solvent-safe configuration.
Need help specifying the SDF400 Laboratory Disperser for your process?
Request a QuotationDescription
The SDF400 laboratory disperser is a compact high-speed unit for formulation work, sample preparation and dispersion testing on small batches. It gives laboratories variable speed control and quick disc changes for evaluating different raw materials. POLYC supplies it for coatings, ink and chemical Compact laboratory footprint for bench or stand mounting Variable speed control covering wetting, dispersion and letdown stages Quick-change dispersing discs for different batch sizes and products Typical applications include Architectural Paints, Printing Inks, Industrial Coatings, Cosmetics. Select vessel size from sample availability, formulation screening plan, and intended production scale.
INDUSTRIES THIS MACHINE SERVES
MACHINE COMPARISON
| Parameter | SDF400 Laboratory Disperser | BPF-H Lab Dispersing Machine | Laboratory basket mill | Laboratory High Shearing Emulsifier |
|---|---|---|---|---|
| Chamber / capacity | 0.5 - 20 L | 0.2 - 15 L | 1 - 20 L | 0.1 - 20 L |
| Motor power | 0.55 - 2.2 kW | 0.55 - 2.2 kW | 0.75 - 4 kW | 0.3 - 2.2 kW |
| Viscosity | up to approximately 20,000 cP | up to approximately 15,000 cP | — | — |
| Contact material | Stainless steel 304 / 316L | Stainless steel 304 / 316L | Stainless steel 304 / 316L | Stainless steel 316L |
| Tip speed | up to 20 m/s | up to 22 m/s | — | — |
Read the full comparison guide: Single Shaft vs Dual Shaft Disperser: How to Choose
Process Engineering
A variable-speed blade wets and disperses small laboratory batches in a restrained vessel.
Digital speed control allows repeatable formulation screening across different blade speeds and batch conditions.
Recorded trial data supports comparison of formulations and preparation for production-scale testing.
Equipment Benefits
Small footprint and variable speed suit formulation screening.
Digital speed display improves trial repeatability.
Manual or electric lifting options match laboratory workflow.
Vessel restraint improves operating safety.
Technical Data
| Parameter | Value |
|---|---|
| Working capacity | 0.5 - 20 L |
| Motor power | 0.55 - 2.2 kW |
| Tip speed | up to 20 m/s |
| Speed control | Variable frequency or electronic |
| Viscosity range | up to approximately 20,000 cP |
| Contact material | Stainless steel 304 / 316L |
| Mounting | Bench or floor stand |
PRODUCT INQUIRY
Tell us your material and capacity, our engineer will reply within 24 hours.
Equipment Guidance
The SDF400 Laboratory Disperser handles high-shear dispersion and homogenisation. It is used for Architectural Paints, Printing Inks, Industrial Coatings, normally ahead of milling or filling.
It handles viscosity up to up to approximately 20,000 cP. Product-contact parts are Stainless steel 304 / 316L.
The sawtooth or rotor-stator head breaks agglomerates and wets out powder into the liquid phase. Final dispersion quality is confirmed by a material trial.
Capacity is 0.5 - 20 L with motor power 0. Models cover batch and in-line duties depending on the process route.
Batch dispersion suits multiple products and frequent changes; in-line dispersion suits continuous or high-volume single products. POLYC recommends after reviewing your route.
