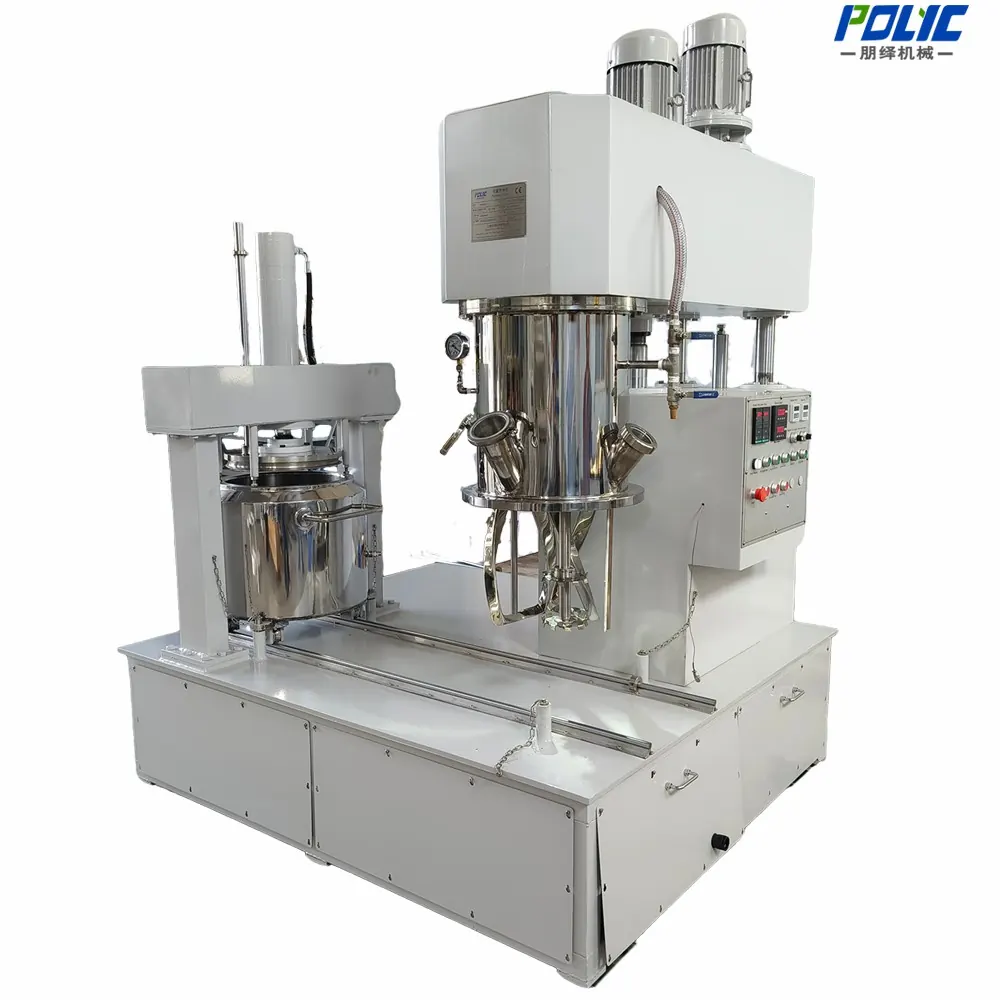

The PMX series Vacuum Double Planetary Mixer is an advanced laboratory and pilot-scale compounding system engineered for processing ultra-high viscosity pastes, non-flowing gels, and heavy slurries ranging from 0 to 1,500,000 cps. Featuring planetary motion where agitator blades revolve around the vessel center while simultaneously rotating on their own axes, it creates intense multi-directional shear and kneading action. Available in 1L, 2L, 5L, 10L, 20L, and 30L laboratory configurations, with high vacuum degassing (-0.098 MPa), precise temperature control (+/-1 degree C up to 220C), and hydraulic press discharge for convenient material removal after testing.
Response within 24 hours · Engineering consultation · Application review available
Description
The PMX series Vacuum Double Planetary Mixer is an advanced laboratory and pilot-scale compounding system engineered for processing ultra-high viscosity pastes, non-flowing gels, and heavy slurries ranging from 0 to 1,500,000 cps. Featuring planetary motion where agitator blades revolve around the vessel center while simultaneously rotating on their own individual axes, it creates intense multi-directional shear and kneading action that ensures uniform mixing even for the most challenging materials.
Planetary Dual-Motion Kneading: The agitator blades revolve around the vessel center while simultaneously rotating on their own axes, creating intense multi-directional shear and kneading action. This dual-motion ensures uniform mixing and dispersion even for ultra-high viscosity materials that conventional mixers cannot process effectively.
High Vacuum Degassing: The vacuum system achieves -0.098 MPa, effectively eliminating entrained air and bubbles from high-viscosity formulations. This is critical for producing bubble-free products such as adhesives, sealants, and electronic materials.
Precise Temperature Control: The jacketed vessel provides precise temperature control with +/-1 degree C accuracy up to 220C, enabling processing of temperature-sensitive materials and facilitating reactions that require specific temperature profiles.

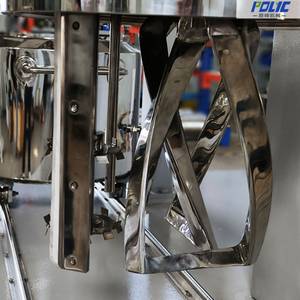

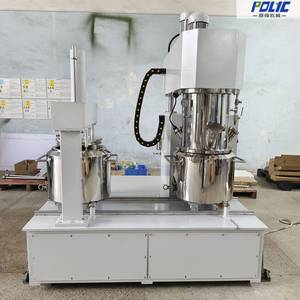

Versatile Agitator Geometries: Multiple agitator configurations are available including twist blades, anchor blades, and dispersing discs, allowing optimization for different material characteristics and processing requirements.

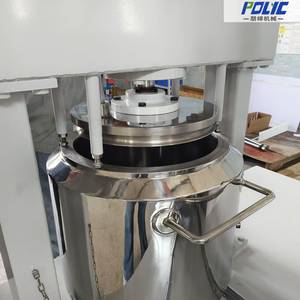

Flexible Hydraulic Discharge: Equipped with a pressing machine for discharging material out of the vessel, the hydraulic press discharge system enables convenient removal of even the most viscous materials after testing or small-batch production.
Scalable Capacity Range: Available in 1L, 2L, 5L, 10L, 20L, and 30L laboratory configurations, with larger pilot and production models up to 1,000L available. This scalability enables seamless scale-up from laboratory formulation development to full production.
Product Overview & Key Features:
The PMX series Vacuum Double Planetary Mixer is designed for laboratory and pilot-scale processing of ultra-high viscosity pastes, gels, and slurries up to 1,500,000 cps. With planetary dual-motion kneading, high vacuum degassing, and precise temperature control, it provides reliable results for formulation development and small-batch production.
Key Features:
INDUSTRIES THIS MACHINE SERVES
Equipment Selection
Select capacity based on formulation batch size: laboratory models (1-30L) for R&D and formulation development, pilot models (100-200L) for scale-up testing, production models (500-1,000L) for manufacturing.
Evaluate material viscosity: the planetary mixer handles materials from 0 to 1,500,000 cps, making it suitable for even the most challenging high-viscosity formulations.
Determine whether vacuum degassing is required: the -0.098 MPa vacuum system is critical for bubble-free products such as adhesives, sealants, and electronic materials.
Consider temperature requirements: the jacketed vessel provides precise control up to 220C with +/-1C accuracy for temperature-sensitive materials and reactions.
Select appropriate agitator geometry (twist blades, anchor blades, dispersing discs) based on material characteristics and processing requirements.
Confirm discharge method: hydraulic press discharge is standard for convenient removal of high-viscosity materials after testing.
Process Engineering
The planetary gearbox drives agitator blades that revolve around the vessel center while simultaneously rotating on their own individual axes.
This dual-motion creates intense multi-directional shear and kneading action, ensuring uniform mixing and dispersion even for ultra-high viscosity materials.
The vacuum system removes entrained air and bubbles from the formulation, achieving -0.098 MPa for bubble-free products.
The jacketed vessel circulates heating or cooling fluid to maintain precise temperature control throughout the process.
After processing, the hydraulic press discharge system removes material from the vessel, enabling convenient collection of even the most viscous products.
Equipment Benefits
Planetary dual-motion kneading ensures uniform mixing for ultra-high viscosity materials up to 1,500,000 cps that conventional mixers cannot process.
High vacuum degassing at -0.098 MPa produces bubble-free products critical for adhesives, sealants, and electronic materials.
Precise temperature control (+/-1C up to 220C) enables reliable processing of temperature-sensitive materials.
Scalable capacity from 1L laboratory to 1,000L production enables seamless scale-up from formulation development to manufacturing.
Hydraulic press discharge provides convenient removal of high-viscosity materials after testing or small-batch production.
Direct manufacturing in POLYC 9,000 m2 facility with in-house planetary gearbox machining and seal testing ensures quality and competitive pricing.
Technical Data
| Parameter / Model | PMX-02L | PMX-05L | PMX-30L (custom) | PMX-100L | PMX-200L | PMX-500L | PMX-1000L |
|---|---|---|---|---|---|---|---|
| Working Capacity (L) | 2 | 5 | 30 | 100 | 200 | 500 | 1,000 |
| Full Volume (L) | 3 / 3.8 | 8 / 11.7 | ~40 | 130 / 140 | 265 / 287 | 650 | 1,227 |
| Disperser Power (kW) | 0.37 - 0.75 | 0.75 - 2.2 | 3 - 5.5 | 4.0 - 11 | 11 - 22 | 22 - 45 | 37 - 75 |
| Dispersing Speed (rpm) | 0 - 3,000 | 0 - 3,000 | 0 - 2,500 | 0 - 3,000 | 0 - 2,500 | 0 - 1,500 | 0 - 960 |
| Agitator Power (kW) | 0.37 / 0.75 | 0.55 / 1.5 | 1.5 / 3 | 4.0 / 11 | 5.5 / 18.5 | 15 / 37 | 22 / 55 |
| Agitating Speed (rpm) | 0 - 100 | 0 - 100 | 0 - 80 | 0 - 100 | 0 - 80 | 0 - 60 | 0 - 50 |
| Orbital / Scraping Speed (rpm) | 0 - 60 | 0 - 60 | 0 - 50 | 0 - 60 | 0 - 50 | 0 - 40 | 0 - 30 |
| Vacuum Rating (MPa) | -0.098 ~ -0.08 | -0.098 ~ -0.08 | -0.098 ~ -0.08 | -0.098 ~ -0.08 | -0.098 ~ -0.08 | -0.098 ~ -0.08 | -0.098 ~ -0.08 |
| Max Temperature (C) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
PRODUCT INQUIRY
Tell us your material and capacity, our engineer will reply within 24 hours.
Equipment Guidance
POLYC MACHINE is a direct manufacturer with 25 years of experience in wet grinding, dispersing and mixing equipment. Our 9,000 m2 factory in Wuxi, Jiangsu handles fabrication from cutting and welding to final assembly and testing, ensuring factory-direct pricing and full quality control.
We provide a 3-year warranty on complete machines from the bill of lading date, excluding wear parts. Beyond the warranty period, we offer lifetime technical support and spare parts supply. For quality issues caused by non-human factors within the warranty period, repairs and replacements are handled at no cost.
Yes. We support OEM/ODM services including custom machine configuration, branding, voltage, paint color, and control systems. Multiple standard models are available, and we can design custom solutions for specialized applications.
With proper maintenance, POLYC bead mills and dispersers typically serve for more than 10 years. Many customers have been running our machines for 15+ years without major issues. We use heavy-duty components and precision-machined parts to ensure long service life.
Quality is built into every step. Our in-house fabrication line covers cutting, welding, rolling, polishing, assembling, testing, painting and packaging. An experienced engineering team continuously improves designs based on real-world customer feedback. We strictly control accuracy at each stage and never cut corners on materials or workmanship.
