Vacuum Dispersing Machine
Vacuum Dispersing Machine: High-speed disperser with vacuum system for defoaming. Capacity: 50-10,000 L. Capacity range 50 - 10,000 L. Typical applications: Adhesives & Sealants, Electronics, Cosmetics, Pharmaceuticals, Battery Materials.
High-speed disperser with vacuum system for defoaming. Capacity: 50-10,000 L.

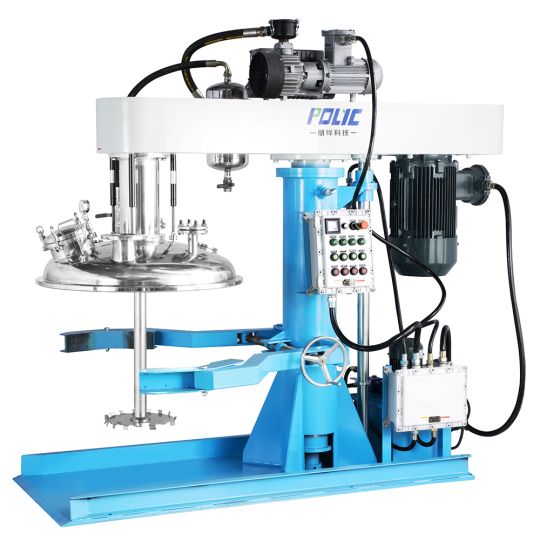

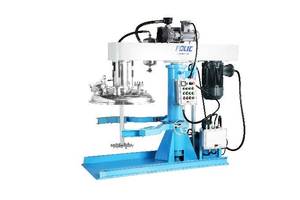

The POLYC PVM Vacuum Dispersing Machine is a high-speed disperser built around a sealed, vacuum-rated vessel. It combines high-shear dispersion and vacuum deaeration in a single unit, so coatings, adhesives, sealants and electronic slurries are mixed and deaerated without entrained air. A variable-frequency drive controls tip speed, a hydraulic lift positions the dispersing head for vessel changeover, and an optional jacket keeps temperature-sensitive batches stable.
Key Facts
- Equipment Type
- Dispersers
- Capacity / Batch Range
- 50 - 10,000 L
- Motor Power
- 7.5 - 75 kW
- Max Viscosity
- up to approximately 100,000 cP with appropriate agitator
- Typical Applications
- Adhesives & Sealants, Electronics, Cosmetics, Pharmaceuticals
Request a Quote
Response within 24 hours · Engineering consultation · Application review available
Where the PVM Vacuum Disperser Performs Best
Industry ApplicationsA sealed vacuum vessel makes the PVM the right choice whenever entrained air ruins surface finish, filling accuracy or electrical properties.
🔨
Adhesives & Sealants
Bubble-free silicone and MS polymer compounding under vacuum to 1–30 mbar, with moisture exclusion for PU and epoxy systems.
🔋
Electronics
Air-free potting compound and encapsulant mixing where trapped bubbles compromise dielectric strength and reliability.
🩸
Cosmetics & Pharma
Vacuum deaeration of cream, ointment and gel bases to a smooth, lump-free texture without manual degassing.
⚡
Battery Materials
Electrode slurry mixing and deaeration before coating, reducing pinhole defects in anode and cathode layers.
🎨
Pigment Pastes
Vacuum dispersion of high-value colour concentrates, protecting shade and preventing foam in sensitive bases.
🪓
Industrial Coatings
High-viscosity coating mixing with vacuum deaeration for solvent-based and high-solid formulations.
PVM Series at a Glance
Series Overview50–3,000L
Working Capacity
7.5–75kW
Motor Power
1–30mbar
Vacuum Level
20m/s
Tip Speed
Key Design Features
Engineering2-in-1 Vessel🌬
Disperse + Deaerate
- High-shear dispersion and vacuum deaeration in one sealed vessel
- No separate degassing tank or transfer step
- Closed processing limits air entrainment
1–30 mbar🔒
Vacuum-Rated Sealing
- Rated shaft seals, vessel lid and ports
- Stable low-pressure operation for deaeration
- Closed design reduces solvent loss
Heat + Cool❄️
Jacketed Vessel
- Jacketed vessel with heating and cooling
- Temperature-controlled processing
- Protects heat-sensitive formulations
VFD Control⚙️
Variable Speed
- Frequency drive controls tip speed
- Controlled shear during dispersion and degassing
- Speed range selected by machine size
Visual Check👁️
Sight Glass + Light
- Sight glass and internal lighting
- Visual verification of the deaeration stage
- Operator confidence on every batch
Optional🔨
Wall-Scraping Agitator
- Optional wall-scraping agitator
- Handles high-viscosity compounds
- Improves heat transfer and homogeneity
Applications by Industry
Selection| Industry | What Vacuum Dispersion Delivers |
|---|---|
| Adhesives & Sealants | Bubble-free silicone and MS polymer compounding under 1–30 mbar vacuum |
| Electronics | Air-free potting compound and encapsulant mixing |
| Cosmetics & Pharmaceuticals | Vacuum deaeration of cream, ointment and gel bases |
| Battery Materials | Electrode slurry mixing and deaeration before coating |
| Pigment Pastes | Vacuum dispersion of high-value colour concentrates |
| Industrial Coatings | High-viscosity coating mixing with vacuum deaeration |
| Construction Chemicals | Vacuum mixing of sealant and mastic compounds |
Choosing the Right Vacuum Disperser
How to Choose1
Define your batch
Batch volume, viscosity (up to ~100,000 cP), powder loading, required vacuum level and deaeration target.
2
Configure the machine
Shaft power, blade geometry, vessel cover, seal arrangement and cooling duty matched to your formulation.
3
Confirm safety
Solvent classification and explosion-protection (ATEX) requirements before manufacture.
Related Technical Guides
Guides
SpecsHigh Speed Disperser Specs and Selection Guide
SelectionHow to Choose a High Speed Disperser
ImpellerHigh-Speed Disperser Impeller Selection
ConfigSingle Shaft vs Dual Shaft Disperser
Need a vacuum disperser configured for your formulation?
Request a QuotationApplication Scenarios: Deaerated Dispersion and Vacuum Processing
Where entrained air or solvent vapour has to be removed during dispersion, the PVM is specified simply as a vacuum disperser: the batch is dispersed and deaerated in one closed vessel, which shortens the downstream vacuum stage and improves density consistency in sealants, potting compounds and paste products.
Description
How it works
The POLYC PVM Vacuum Dispersing Machine is built for dispersing, deaerating, emulsifying and mixing raw materials across a wide viscosity range. A high-speed dispersing impeller generates strong shear that wets out powders, breaks agglomerates and shortens dispersion time.
An integrated vacuum system pulls entrained air out of the batch while the vessel lid and shaft seals stay rated for low-pressure operation. This closed design reduces solvent volatilization and material waste, and gives stable, bubble-free results for coatings, adhesives, sealants and electronic slurries.
A hydraulic lift raises the dispersing head for fast vessel changeover and cleaning, and automatic temperature and pressure feedback supports safe, repeatable operation. Explosion-proof motor and control options are available for solvent-based processes.
INDUSTRIES THIS MACHINE SERVES
Industries we serve
Adhesives & Sealants
High-shear dispersion for adhesives, sealants, and polymer systems.
Learn more →Chemicals
Powder wetting and dispersion for chemical and general industrial applications.
Learn more →TYPICAL PERFORMANCE REFERENCE
| Material Type | Viscosity Range | Typical Speed | Batch Size |
|---|---|---|---|
| Low-viscosity coatings | < 5,000 cP | 1,500-3,000 rpm | 10-1,000 L |
| Medium-viscosity paste | 5,000-50,000 cP | 1,000-1,500 rpm | 50-500 L |
| High-viscosity adhesive | > 50,000 cP | 500-1,000 rpm | 50-500 L |
Typical reference values only. Actual results depend on formulation, bead material, and process conditions. Material testing is recommended before final selection.
VACUUM DISPERSER VS OTHER DISPERSERS
Which POLYC disperser fits your process?
| Dimension | Vacuum Dispersing Machine | Double-Shaft High-Speed Disperser | Mezzanine (PSD) Disperser |
|---|---|---|---|
| Vacuum deaeration | Built-in, 1-30 mbar | Not available | Not available |
| Working capacity | 50 - 3,000 L | 200 - 5,000 L | 1,000 - 8,000 L |
| Motor power | 7.5 - 75 kW | 15 - 110 kW | 22 - 132 kW |
| Tip speed | up to 20 m/s | up to 22 m/s | up to 24 m/s |
| Viscosity range | up to ~100,000 cP | up to ~50,000 cP | up to ~40,000 cP |
| Mounting / lift | Hydraulic lift, fixed | Hydraulic lift, fixed | Mezzanine / platform |
| Best for | Bubble-free adhesives, electronics, pharma | General coatings, inks, paints | Large-batch, fixed-line production |
Read the full comparison guide: High Speed Disperser Specs and Selection Guide
Process Engineering
Working Principle
- 1
The dispersing blade wets and disperses solids under variable-speed high shear.
- 2
A sealed vessel cover allows vacuum to remove entrained air and reduce foaming during processing.
- 3
Hydraulic lifting positions the blade for loading, processing, and cleaning while the vessel jacket manages temperature.
Equipment Benefits
Equipment Advantages
- ✓
Combines high-speed dispersion and deaeration in one vessel.
- ✓
Closed processing limits air entrainment and solvent loss.
- ✓
Variable speed and hydraulic lifting simplify process adjustment.
- ✓
Optional jacket control stabilizes temperature-sensitive batches.
Technical Data
Technical Specifications
| Parameter | Value |
|---|---|
| Working capacity | 50 - 3,000 L |
| Motor power | 7.5 - 75 kW |
| Vacuum level | down to approximately 1 - 30 mbar depending on configuration |
| Viscosity range | up to approximately 100,000 cP with appropriate agitator |
| Tip speed | up to 20 m/s |
| Contact material | Stainless steel 304 / 316L |
| Temperature control | Jacketed vessel with heating and cooling |
PRODUCT INQUIRY
Get Price & Specs for This Product
Tell us your material and capacity, our engineer will reply within 24 hours.
Thank you! Our engineer will contact you within 24 hours.
Equipment Guidance
Frequently Asked Questions
What is a vacuum dispersing machine?
A vacuum dispersing machine is a high-speed disperser built around a sealed, vacuum-rated vessel. It wets and disperses powders under high shear while a vacuum system removes entrained air, so adhesives, coatings, sealants and electronic slurries are mixed and deaerated in one step.
How does vacuum deaeration improve dispersion quality?
Trapped air causes bubbles, pinholes and uneven surfaces in coatings, potting compounds and electrode slurries. Removing it under 1-30 mbar vacuum gives a dense, bubble-free product with better dielectric, filling and film properties.
What capacity and viscosity range does the PVM vacuum disperser cover?
The PVM series handles working capacities from 50 to 3,000 L with motor power from 7.5 to 75 kW, and processes viscosities up to approximately 100,000 cP when fitted with the right agitator.
Vacuum disperser vs standard high-speed disperser - when should I choose vacuum?
Choose vacuum when entrained air degrades your product: bubble-free adhesives and sealants, potting compounds, creams, gels and electrode slurries. For general coatings, inks and paints without strict degassing needs, a standard high-speed disperser is usually enough.
What vacuum level can the PVM reach?
Depending on configuration, the PVM reaches approximately 1-30 mbar, which is sufficient for most deaeration and defoaming duties in adhesive, electronic and coating production.
Can the vacuum disperser handle temperature-sensitive batches?
Yes. The vessel is jacketed for heating and cooling, and a variable-frequency drive controls tip speed, so temperature-sensitive formulations stay within a stable processing window.
Is the vacuum disperser available with explosion-proof controls?
Yes. Explosion-proof motors, electrical controls and safety configurations are available when required by your solvent, plant classification or local regulations.
How do I select the right vacuum disperser configuration?
Start from batch volume, viscosity, powder loading, required vacuum level and deaeration target, then match shaft power, blade geometry, vessel cover, seal arrangement and cooling duty. POLYC engineers confirm solvent classification and explosion-protection needs before manufacture.
Industry Applications
Applications
Adhesives & Sealants
bubble-free silicone and MS polymer compounding under vacuum to 1-30 mbar
Electronics
potting compound and encapsulant mixing without entrained air
Cosmetics
vacuum deaeration of cream and ointment bases
Pharmaceuticals
gel and ointment processing under vacuum
Battery Materials
electrode slurry mixing and deaeration before coating
Industrial Coatings
high-viscosity coating mixing with vacuum deaeration
Adhesives & Sealants
PU and epoxy compounding with moisture exclusion
Food
paste and filling mixing under vacuum for texture control
Pigment Pastes
vacuum dispersion of high-value colour concentrates
Construction Chemicals
vacuum mixing of sealant and mastic compounds
