Grinding Media Zirconia Beads
Grinding Media Zirconia Beads: Zirconia grinding media, also supplied as yttria-stabilized zirconia beads, is the reference choice for fine and nanoscale wet grinding in bead mills: Capacity range 0.05 - 3.0 mm. Typical applications: Architectural Paints, Industrial Coatings, Printing Inks, Pigment Pastes, Agrochemicals.
Zirconia grinding media, also supplied as yttria-stabilized zirconia beads, is the reference choice for fine and nanoscale wet grinding in bead mills:
Zirconia grinding media, also supplied as yttria-stabilized zirconia beads, is the reference choice for fine and nanoscale wet grinding in bead mills: high density delivers more energy per bead impact, while low wear kee

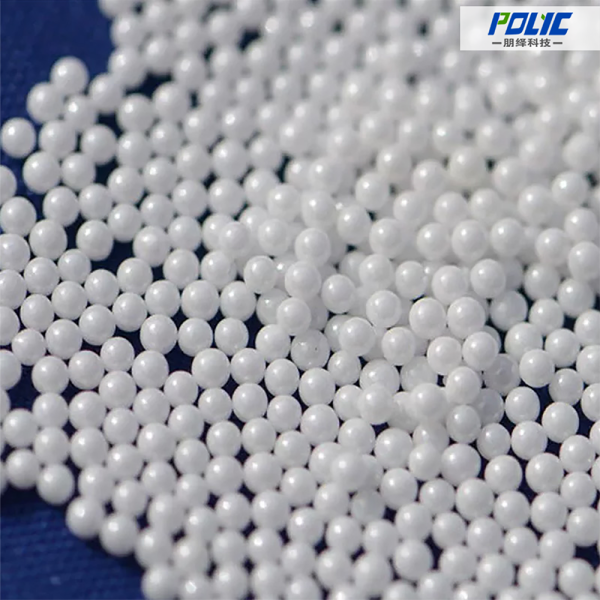

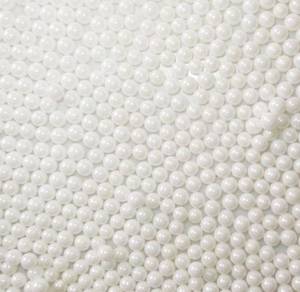

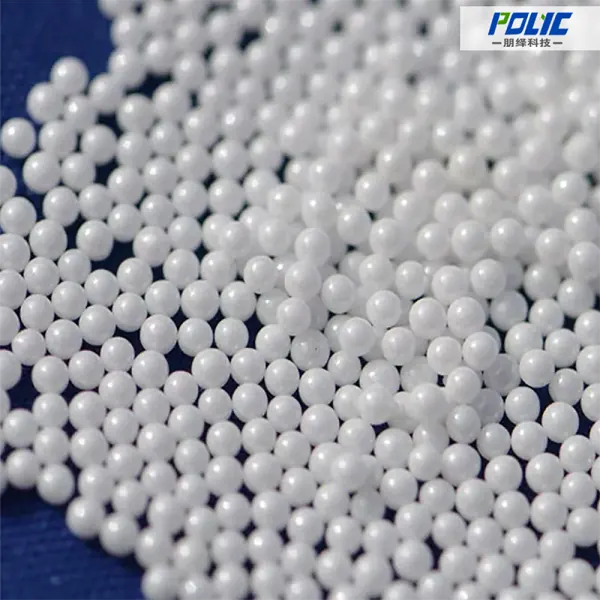

Zirconia grinding media (yttria-stabilized zirconia beads) is the most widely used grinding bead for fine and ultra-fine wet grinding in bead mills. POLYC supplies these beads in a range of sizes and densities for ink, paint, coatings, agrochemicals and battery slurry.
Key Facts
- Equipment Type
- Grinding Media
- Capacity / Batch Range
- 0.05 - 3.0 mm
- Typical Applications
- Architectural Paints, Industrial Coatings, Printing Inks, Pigment Pastes
Request a Quote
Response within 24 hours · Engineering consultation · Application review available
Where the Grinding Media Zirconia Beads Performs Best
Industry ApplicationsGrinding Media Zirconia Beads is applied across multiple industries. The configuration is matched to your material, fineness target and batch volume.
🎨
Architectural Paints
bead mill media for latex and emulsion grinding at 0.8-2.5 mm
🧪
Industrial Coatings
media for protective and industrial coating dispersion
🚗
Printing Inks
media for offset, gravure and flexo ink grinding at 0.3-1.4 mm
🪓
Pigment Pastes
high-density media for pigment concentrate production
🖨
Agrochemicals
media for suspension concentrate milling to D90 ≤5 μm
🌾
Battery Materials
high-purity media for contamination-controlled electrode slurry
Grinding Media Zirconia Beads at a Glance
Series Overviewapproximately 6.0 g/cm3
Density
0.05 - 3.0 mm depending on application
Size range
Yttria-stabilised zirconia
Material
high, suited to fine and nano grinding
Hardness
Key Design Features
Engineering⚙️
High density giving efficient energy transfer during
High density giving efficient energy transfer during grinding
⚙️
Very low wear reducing product contamination and
Very low wear reducing product contamination and media consumption
⚙️
Yttria-stabilised formulation for toughness and long service
Yttria-stabilised formulation for toughness and long service life
⚙️
Available in sizes from coarse grinding media
Available in sizes from coarse grinding media to nano media
⚙️
Suitable for ceramic-lined and stainless mill chambers
Suitable for ceramic-lined and stainless mill chambers
⚙️
Consistent spherical form supporting stable mill operation
Consistent spherical form supporting stable mill operation
Applications by Industry
Selection| Industry | Typical Application |
|---|---|
| Architectural Paints | bead mill media for latex and emulsion grinding at 0.8-2.5 mm |
| Industrial Coatings | media for protective and industrial coating dispersion |
| Printing Inks | media for offset, gravure and flexo ink grinding at 0.3-1.4 mm |
| Pigment Pastes | high-density media for pigment concentrate production |
| Agrochemicals | media for suspension concentrate milling to D90 ≤5 μm |
| Battery Materials | high-purity media for contamination-controlled electrode slurry |
| Ceramics | media for electronic ceramic and glaze slurry at 0.1-0.8 mm |
| Pharmaceuticals | low-wear media for nanosuspension production |
| Cosmetics | media for pigment and sunscreen nano dispersion |
| Electronics | media for carbon black and CNT conductive dispersion |
Choosing the Right Grinding Media Zirconia Beads
How to Choose1
Select bead diameter from feed size
Select bead diameter from feed size, target fineness, mill separator opening, and installed energy density.
2
Select density and composition from required impact energy
Select density and composition from required impact energy, contamination limit, and slurry chemistry.
3
Validate wear rate and product quality in
Validate wear rate and product quality in a controlled trial before full production charging.
Related Technical Guides
Guides
GuideZirconia Grinding Media Guide: Selection, Operation and Wear Management
GuideBead Mill Selection for Battery Materials
GuideInline Disperser Guide: How High-Shear Inline Dispersion Cuts Milling Time & Cost
GuideTop Chinese High Shear Disperser Manufacturers 2026 Guide
Need help specifying the Grinding Media Zirconia Beads for your process?
Request a QuotationDescription
How it works
Zirconia grinding media, also supplied as yttria-stabilized zirconia beads, is the reference choice for fine and nanoscale wet grinding in bead mills: high density delivers more energy per bead impact, while low wear keeps product contamination under control. Zirconia Beads is a grinding medium main High density giving efficient energy transfer during grinding Very low wear reducing product contamination and media consumption Yttria-stabilised formulation for toughness and long service life Typical applications include Architectural Paints, Industrial Coatings, Printing Inks, Pigment Pastes. Select bead diameter from feed size, target fineness, mill separator opening, and installed energy density.
INDUSTRIES THIS MACHINE SERVES
Industries we serve
SPECIFICATION REFERENCE
POLYC Zirconia Grinding Media at a Glance
| Parameter | Grinding Media Zirconia Beads |
|---|---|
| Material | Yttria-stabilised zirconia |
| Density | approximately 6.0 g/cm3 |
| Size range | 0.05 - 3.0 mm depending on application |
| Hardness | high, suited to fine and nano grinding |
| Sphericity | high, supporting stable mill operation |
Process Engineering
Working Principle
- 1
Grinding beads receive kinetic energy from the mill agitator.
- 2
Collisions and shear between beads and particles break agglomerates and reduce particle size.
- 3
Bead density, size, roundness, and wear resistance determine energy transfer, separation behavior, and contamination risk.
Equipment Benefits
Equipment Advantages
- ✓
High density transfers grinding energy efficiently.
- ✓
Good roundness and smooth surfaces promote stable mill operation.
- ✓
Acid and alkali resistance suit a broad range of formulations.
- ✓
High toughness and low wear reduce bead breakage and contamination.
Technical Data
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Yttria-stabilised zirconia |
| Density | approximately 6.0 g/cm3 |
| Size range | 0.05 - 3.0 mm depending on application |
| Hardness | high, suited to fine and nano grinding |
| Sphericity | high, supporting stable mill operation |
| Wear rate | low, formulation dependent |
| Packaging | supplied in drums sized to mill charge |
PRODUCT INQUIRY
Get Price & Specs for This Product
Tell us your material and capacity, our engineer will reply within 24 hours.
Thank you! Our engineer will contact you within 24 hours.
Equipment Guidance
Frequently Asked Questions
What bead sizes and densities are available?
Bead diameter range is 0.05 - 3.0 mm depending on application. Yttria-stabilized zirconia beads are supplied in the standard size steps used by bead mills, with density and hardness matched to the mill type and the required fineness.
What is the zirconia content and wear rate?
High-purity yttria-stabilized beads are specified where contamination control matters, such as battery materials and electronic ceramics. Wear rate is confirmed against your mill duty rather than quoted as a single figure.
Which bead suits which mill and application?
Bead selection follows the mill separator opening, the target fineness and the material being ground. Typical duties cover Architectural Paints, Industrial Coatings, Printing Inks.
How do I choose between zirconia, glass and steel media?
Zirconia gives the best balance of density, wear resistance and contamination control for wet grinding. Glass is cheaper but wears faster; steel is denser but can contaminate light-coloured products. POLYC recommends from your fineness target and contamination limit.
How long do the beads last?
Service life depends on mill speed, product abrasiveness and media size. Beads are normally replaced as a batch when the grinding efficiency drops rather than on a fixed interval.
