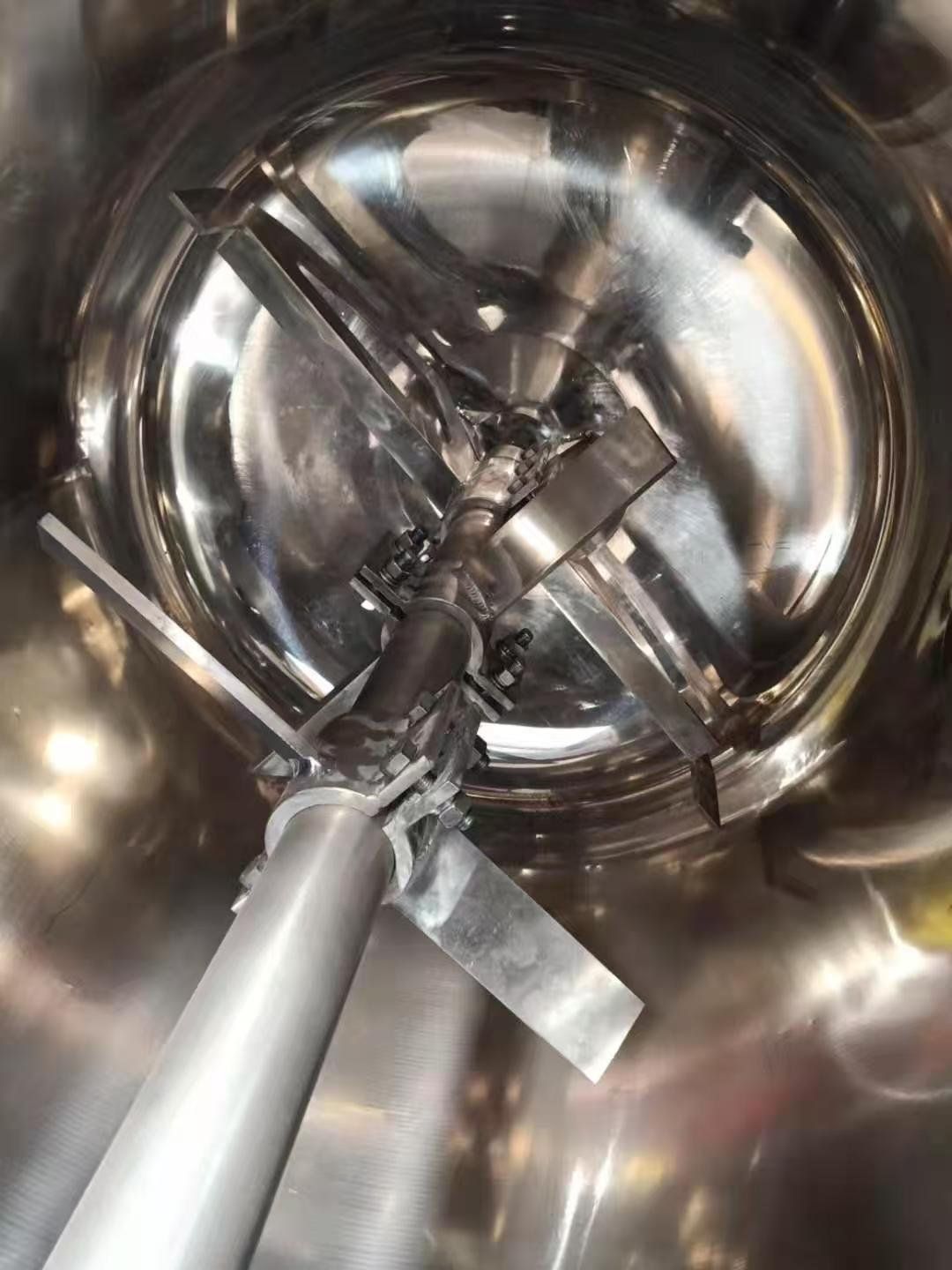

An Egyptian manufacturer of liquid fertilizers and emulsifiable concentrates runs a POLYC low-speed flat-paddle mixing vessel chosen for stable circulation, not high shear.
The requirement: stable circulation, not high shear
In liquid fertilizer and EC production, the priority is never "how finely can it be broken down" — it is how evenly the batch mixes, and whether it holds without separating over time. The customer's words: "What we needed was not high shear — it was stable circulation." Built around that real requirement, the custom low-speed flat-paddle mixing vessel has earned the following feedback after extended service.
Why the customer chose it
- High circulation volume, consistent blending — a large-diameter paddle running at low speed moves a substantial volume of liquid with each pass, creating a steady, uniform circulation throughout the vessel. Material reaches homogeneity quickly, and batch-to-batch consistency is easier to control.
- Gentle shear that protects the formulation — liquid fertilizers and ECs are low-viscosity systems where excessive shear can do more harm than good. The flat-paddle design works primarily by bulk displacement: shear is mild, the formed emulsion is not disrupted, and the risk of air entrainment is reduced.
- Low energy consumption — low speed paired with a large-diameter paddle is the classic "low energy, high circulation" combination. The equipment runs continuously for long periods without frequent maintenance, keeping day-to-day operating costs under control.
- Simple structure, easy maintenance and cleaning — the flat paddle has a straightforward geometry with no complex surfaces: simple to clean after discharge, fast to change over, and less prone to cross-contamination between formulations.
- Stable operation, suited to large vessels — low-speed rotation means minimal vibration and lower bearing load, which for large-capacity vessels translates directly into greater reliability and longer service life.
Who should use it: products and processes that fit best
| Product type | Process requirement |
|---|---|
| Liquid fertilizer / clear water-soluble fertilizer | Raw material dissolution, multi-component compounding, preventing crystallization and separation |
| Suspension fertilizer | Uniform dispersion and long-term stability with suspending agents |
| Foliar and fertigation fertilizers | Rapid dissolution, consistent concentration |
| Emulsifiable concentrate (EC) | Mixing technical material + solvent + emulsifier; preventing separation |
| Emulsion in water (EW) / microemulsion (ME) | Gentle mixing that preserves the emulsion system |
| Liquid water-treatment chemicals | Dissolution and dilution with stable concentration |
Selection criteria
- Low-viscosity liquid system — material flows readily; no high-shear dispersion required
- Core objective is "uniform mixing + preventing separation/settling" — not breaking down agglomerates
- Shear-sensitive — the process does not benefit from aggressive shear
- Large capacity, long running cycles — circulation volume and operating economy matter
- Frequent formulation changes — easy cleaning and fast changeover required
In one sentence: if you produce a low-viscosity liquid product where the core requirement is "mixes evenly and holds stable" — rather than "crushing, grinding, or high shear" — a low-speed flat-paddle mixing vessel is the better fit.
Where this configuration fits
The vessel is part of the PRM low speed mixing vessel series, and complete plant designs are covered under the liquid fertilizer production line. The delivery is documented in EC and fertilizer production lines delivered to Egypt, and after-sales support in the region is described in on-site after-sales service for Egypt customers.
If your process calls for stable, gentle circulation at scale, send us your inquiry with your product range and vessel size.
