Project Location: Tucuman Province, Argentina
Target Product: Architectural Latex Paint (under 2,000 cps)
Annual Capacity: Approximately 15,000 Metric Tons per Year
Project Time: 2024-2025
Customer Challenge
The customer required a fully automated water-based paint plant with precise weighing, dust-free powder handling, and centralized control. Key technical challenges included:
- High-precision additive dosing via load cells on hydraulic lifting tanks, where rigid pipe connections transmit mechanical stress
- Separate high-speed dispersion and low-speed letdown stages for consistent paint quality
- Integration of automatic pail filling and powder bagging into a single production flow
POLYC Solution
POLYC MACHINE engineered a complete turnkey production line with:
- Core Mixing: 2x High-Speed Dispersers + 3x Low-Speed Mixing Tanks
- Control System: Central Siemens PLC with touchscreen automation
- Feeding: Bag dump station with integrated dust collector
- Weighing: Load cells with elastic expansion joints to eliminate mechanical stress
- Pumping & Filtration: Pneumatic transfer pumps with duplex filters
- Packaging: Automatic pail liquid filling and powder bagging line
- Structure: Heavy-duty steel mezzanine platform for multi-level production
Results

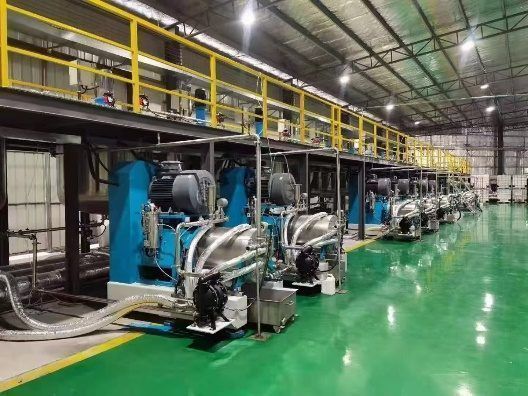

The fully automated line was successfully installed and commissioned in Tucuman, Argentina. The customer achieved consistent batch quality, reduced labor requirements, and met the target annual capacity of 15,000 metric tons.
Recommended equipment
Single Shaft High Speed Disperser (Dissolver) is the relevant POLYC MACHINE configuration for this application.
